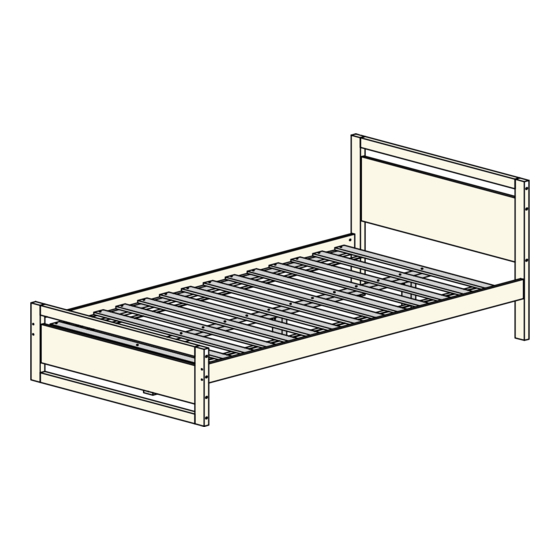

LV Furniture ALEXIS King single bed frame Assembly Instructions

Required Fittings : E x 42 pcs

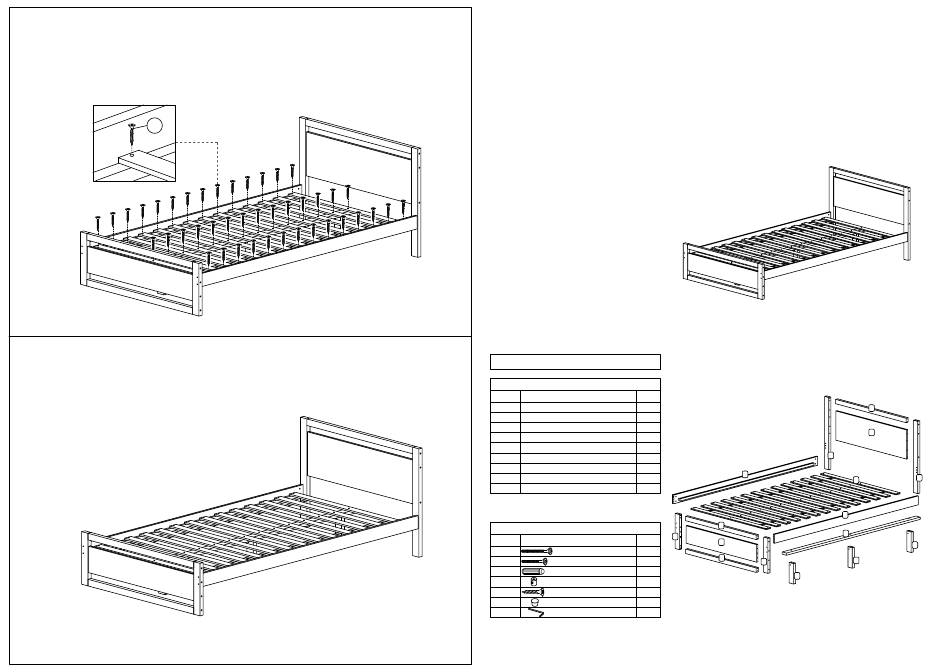

STEP 5
Attach Slats To Bed Frame.
Useful Tips : 1. Carefully place those slats onto the bed frame to prevent scratches.
2. Slot in the assembled center support from underneath the bed.
3. Drill in the first and last piece of slats in order to hold the position before drilling the rest of the slats.
E
Completed
ASSEMBLY INSTRUCTIONS
ALEXIS
King single bed frame

BEFORE YOU START,

HERE IS SOME
HELPFUL ADVICE
We suggest you spend a short time reading
through this leaflet and follow the simple
step-by-step assembly instructions.
Do not discard any of the packaging until you have
checked that you have all the parts and the pack
of fittings.
Assemble this product on a flat surface.
Assemble all parts loosely before tightening any
bolts.
Discard all extra fittings and keep fittings out of reach
of children.
To clean, wipe clean with a damp cloth.
Retain Assembly Instruction for future reference.

PARTS AND FITTINGS LIST

PARTS LIST
CODE DESCRIPTION QTE.
1 HEAD & FOOTBOARD HORIZONTAL RAIL 3
2 HEADBOARD PANEL 1
3 1
FOOTBOARD PANEL
4 2
HEADBOARD POST ( LEFT & RIGHT )
5 2
FOOTBOARD POST ( LEFT & RIGHT )
6 SIDE RAIL 2
7 1
CENTER SUPPORT
8 3
SUPPORT LEG
9 1 SET
SLATS
FITTINGS LIST
CODE DESCRIPTION QTE.
A JCBC 6 X 90 14
B JCBC 6 X 70 11
C 19
DOWEL 10 X 30
D 25
BAREL NUT 6 X15
E 42
CHIBOARD SCREW 4 X 25
F WOOD BUTTON 22
G 1
ALLEN KEY M4
4
6
6
1
7
5
3
1
5
8
1
2
4
9
8
8
