ASSEMBLY
INSTRUCTION
2.5 hrs
APPROXIMATE ASSEMBLY TIME
EXCLUDING GLUE SETTING TIME
8 m m
f
REQUIRED ASSEMBLY TOOLS
DESCRIPTION:
Type 06
BABY BOOM
2 PERSON ASSEMBLY
1540 mm
max.
5KG
FLOOR AREA
2,5M X 2,5M
REQUIRED ASSEMBLY SPACE
M E A
S U R
E
max.
1600 mm
15KG
CEILING HEIGHT
2,0M
ASSEMBLED DIMENSIONS
1/16
Advertisement
Related Manuals for LV Furniture BABY BOOM 06
Summary of Contents for LV Furniture BABY BOOM 06

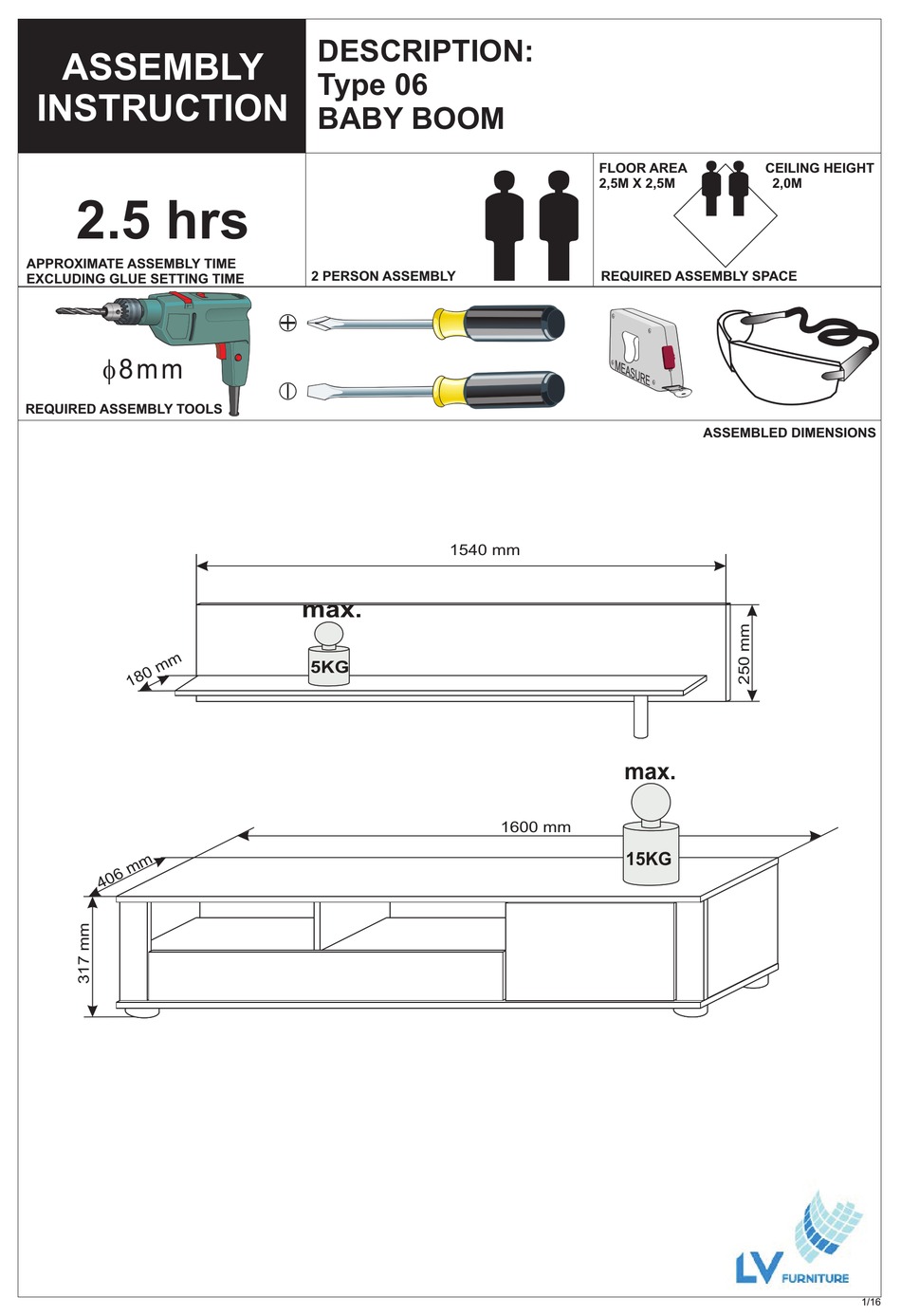

- Page 1 DESCRIPTION: ASSEMBLY Type 06 INSTRUCTION BABY BOOM FLOOR AREA CEILING HEIGHT 2,5M X 2,5M 2,0M 2.5 hrs APPROXIMATE ASSEMBLY TIME 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE EXCLUDING GLUE SETTING TIME 8 m m M E A S U R REQUIRED ASSEMBLY TOOLS ASSEMBLED DIMENSIONS 1540 mm max.
- Page 2 PART LIST max. 15KG max. NO. PARTS LIST NO. PARTS LIST (1) BOTTOM PANEL (14) HANGING SHELF (2) TOP PANEL (15) BACK PANEL (3) LEFT SIDE PANEL (4) RIGHT SIDE PANEL (5) LEFT DIVIDER (6) RIGHT DIVIDER (7) LEFT HORIZONTAL DIVIDER (8) RIGHT HORIZONTAL DIVIDER (9) LEFT BACK PANEL (10)
- Page 3 HARDWARE LIST 3x20mm 15x12mm 8x28mm SCREW SECURING CAM BOLT BOLT DOWEL CAM COVER CAM LOCK BRACKET 4x30mm 7x50mm 4x22mm 6,3x13mm NYLON FOOT SCREW SCREW SCREW GRUB SCREW L-64 3,5x13mm SQUARE SCREW TUBE HANDLE 3/16...
- Page 4 HARDWARE LIST HINGE PLATE Kr15 FLAPS SETTING INDICATOR HINGE METAL PLATE 4/16...
- Page 5 Top Tips before you start! Please check that all parts are present before you start the assembly of your furniture, as once assembled, the furniture is exempt from our home approval policy. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step.
- Page 6 SPECIAL TIPS FOR FITTING CAM-LOCKS AND CAM-PILLARS CAM-LOCK Align with long point of cross WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTILE SECURE WRONG CORRECT Pillar head needs to be in centre CAM-PILLAR Tighten until shoulder is flush with panel.
- Page 7 STEP 1 15x12mm 8x28mm CAM LOCK DOWEL STEP 2 15x12mm 8x28mm CAM LOCK CAM BOLT DOWEL STEP 3 15x12mm 8x28mm DOWEL CAM LOCK 7/16...
- Page 8 STEP 4 15x12mm 8x28mm CAM LOCK CAM BOLT DOWEL 180° STEP 5 15x12mm 8x28mm CAM LOCK DOWEL STEP 6 15x12mm 8x28mm CAM LOCK DOWEL 8/16...
- Page 9 STEP 7 CAM BOLT 504mm 574mm STEP 8 6,3x13mm 4x22mm 35mm HINGE PLATE GRUB SCREW CAM BOLT NYLON FOOT SCREW 35mm 203mm 522mm 504mm 574mm 180° 9/16...
- Page 10 STEP 9 3,5x13mm SCREW SQUARE 30mm STEP 10 4x30mm 3,5x13mm Kr15 L-64 SCREW HINGE HANDLE SCREW L-64 4x30mm Kr15 3,5x13mm FLAPS SETTING INDICATOR SCREW HANDLE SCREW HINGE STEP 11 29mm 120mm 32mm 10/16...
- Page 11 STEP 12 BOLT 1/2 TURN 1/4 TURN STEP 13 11/16...
- Page 12 STEP 14 3,5x13mm SCREW 3,5x13 STEP 15 12/16...
- Page 13 STEP 16 3x20mm SECURING SCREW METAL BRACKET PLATE STEP 17 3,5x13mm CAM COVER SCREW 3,5x13 13/16...
- Page 14 STEP 18 7x50mm SCREW TUBE 107mm 57mm 14/16...
- Page 15 STEP 19 15/16...
- Page 16 STEP 20 LED Lights in type 10 STEP 21 Cam Covers for LED in type 10 7x50mm CAM COVER SCREW CAM COVER LED LIGHTS Option LED 16/16...
