PROAIM P-SBP-01 Assembly Manual

Vct universal shoulder base plate

VCT Universal Shoulder Base Plate

(P-SBP-01)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

2 x 15mm Dia length 300mm Female Rods

2 x 15mm Dia length 200mm Female Rods

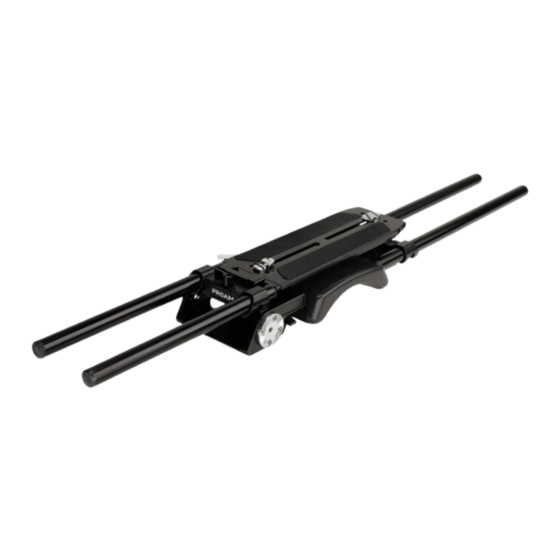

Proaim SBP-01 VCT Shoulder Base Plate

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the P-SBP-01 and is the answer not in the manual?

Page 1 2 x 15mm Dia length 300mm Female Rods 2 x 15mm Dia length 200mm Female Rods Proaim SBP-01 VCT Shoulder Base Plate All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
Page 2 Shoulder Base Plate Setup  Press the safety pin on the shoulder base plate and push the black pin upwards so that the top plate can quickly move out.  Mount the camera by aligning the camera's mounting thread with the top plate, as shown in the image.
Page 3 Cinema Varicam LT 4k S35), Blackmagic (Ursa Mini), and many other camera models with in- terchangeable lenses. YOUR PROAIM VCT UNIVERSAL SHOULDER BASE PLATE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
