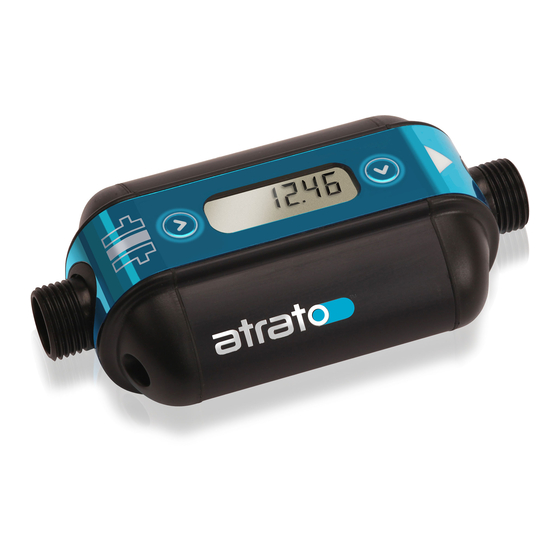

Titan atrato Instruction Manual

Titan atrato Instruction Manual

Ultrasonic flowmeter range
Hide thumbs Also See for atrato:

Advertisement

Quick Links

®
1
Titan Enterprises Ltd ©2021
Atrato_Instruction_Manual_0322

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the atrato and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan atrato

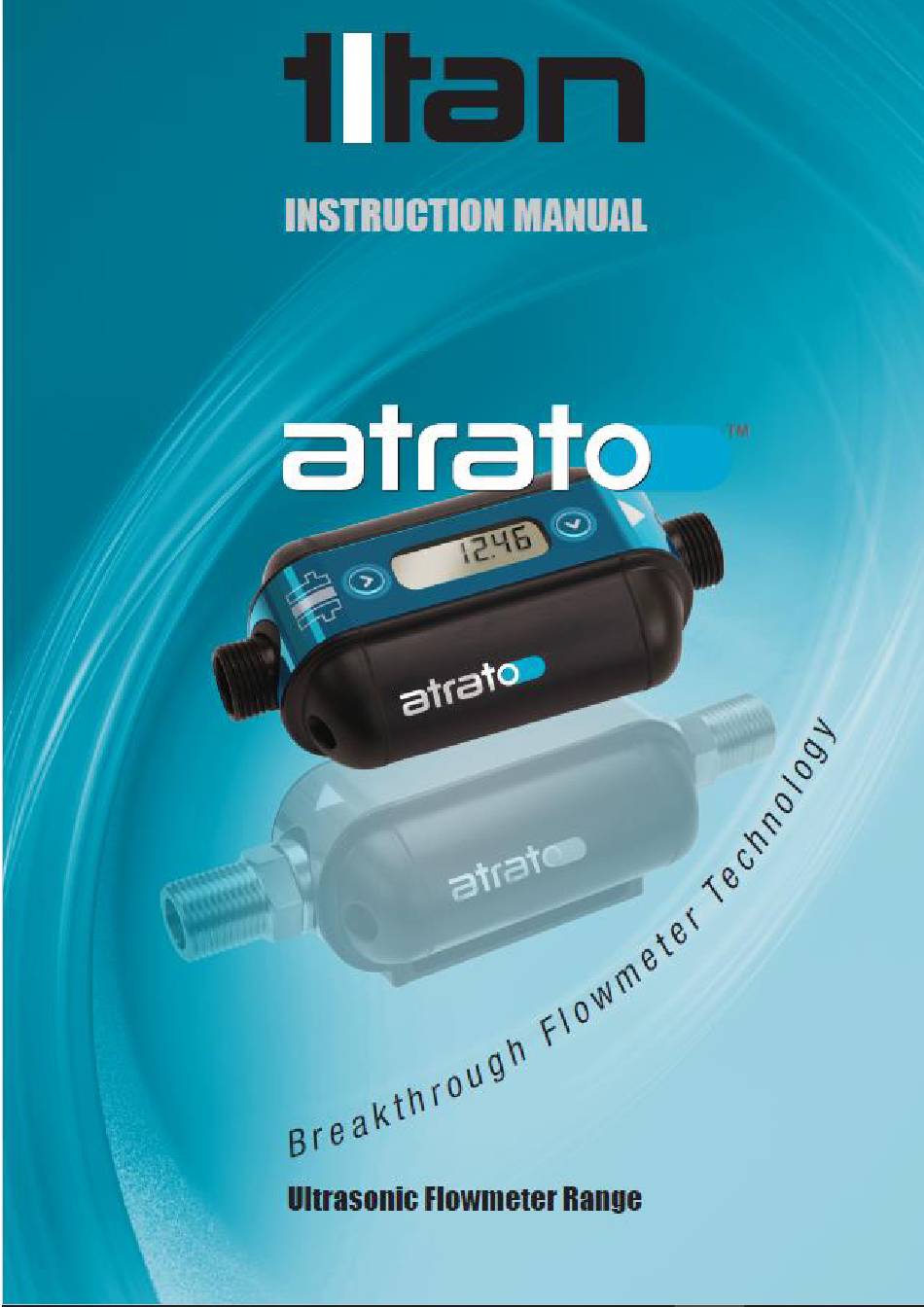

  • Page 1 ® Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 2: Table Of Contents

    Interface Management ................... 32 4.5.2. Median Filter ....................33 4.5.3. Special Options: Limit Gain ................34 4.5.4. Speed of Sound Compensation/Signal Strength ..........34 4.6. Data Logging ......................36 Technical Specification ....................38 Troubleshooting ......................40 Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 3 Ultrasonic flowmeters Must be installed with positive back pressure to function correctly Disclaimer: This information has been reviewed and believed to be correct at the time of publication. Titan Enterprises holds no responsibility for any inaccuracies. The material in this document is for information purposes only.
  • Page 4 Failure to follow these guidelines may result in damage to the equipment or personal injury. Manufacture Information: The Pulsite Link pulse convertor is designed and manufactured by: Titan Enterprises Ltd, Unit 2, 5A Coldharbour Business Park, Sherborne, Dorset, United Kingdom. DT9 4JW. And conforms to: •...
  • Page 5: General

    The user must make sure that the flowmeter selected is suitable for the application and that the chemical compatibility, temperature and pressure requirements are within the Atrato’s operating range. Please check the model number before proceeding.
  • Page 6: Models With Display

    (at end of batch) NOTE: Batch mode can be reset to Ready Mode by Pressing and Holding for 5 Seconds after start /pause has been operated LATCH ALARM RESET LATCHED ALARM OUTPUT Press and Hold for 5 Seconds Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 7: Installation

    ® 2. Installation • The Atrato must be installed in a positive pressure system. Ensure that there is sufficient back pressure on the flowmeter to keep any gas in solution. Back Pressure >500mbar plus two times the liquid vapour pressure backpressure •...
  • Page 8 ® Using suitable fixings, mount the connection box onto a rigid surface with the cable entry preferably at the bottom. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 9 Note that the rubber strip covering the terminals on the meter will not seal if water is persistently present in this area. Ensure the meter is not pressure washed. The Atrato can easily be dismounted by inserting a screwdriver under the mounting clip and gently unclipping it to release the main body.
  • Page 10: Electrical

    The Atrato can be programmed using the USB connection via a computer. The Atrato can operate solely on USB power via the computer or a high quality USB2 power supply (e.g. RS 9076255 5V 5W supply), the meter display will function, as will the relay and pulse outputs (require target power).
  • Page 11 ® = Operates on External Power or USB = Operates on External Power only Atrato Connector Assignments Label Function Relay NO Isolated relay contact; normally open contact 24V 100mA Relay Isolated relay contact; change over contact 24V 100mA Common Relay NC Isolated relay contact;...
  • Page 12: Interface Setup

    ® 4. Interface Setup 4.1. Connecting Meter to PC Before use, download and install the Titan Interface Software from memory stick or the Atrato website: Atrato Technical / Atrato Downloads www.atratoflowmeters.com The Atrato low-flow ultrasonic flowmeter should be set up using the USB interface and a suitable windows-based computer.
  • Page 13: Connecting Multiple Meters

    If more than one meter is connected to the same PC, when starting, the Interface Software will open the window to choose which you wish to connect: By opening another copy of the Titan Interface Software you can connect and modify multiple meters from the same computer.
  • Page 14: Retrieve Settings From Meter

    23 seconds. 4.1.4. Diagnostic Tools This section can be used with Titan Enterprises assistance for updating software and settings as well as creating diagnostic log files of the ultrasonic meter’s performance. Titan Enterprises Ltd ©2021...
  • Page 15: Software Information

    This displays the current software version of the Interface software and the flow meter connected. 4.2. Window Tab Descriptions On connection with the Titan Interface Software a window will open with four tabs of settings: User Settings: Here configure how you wish the meter to present the flow and outputs.
  • Page 16 To return all windows to docked Mode use the View drop down menu, Restore Defaults Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 17: User Settings Tab

    Caution must be used however, as there is no temperature/density correction. Cut Off: Flow values below this level will be set to zero. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 18: Display Appearance

    • Both – The display can be cycled from rate to total using the Left-Hand button on the Atrato or the left button in the “Flow Details” window. The Total can be Reset at any time on the display model by pressing the Right-Hand Button when the Total is being displayed.
  • Page 19: External Connections

    This filter affects the Flow LCD display and the analog outputs only. Flow Switch alarms operate using the Filtered Flow It has no effect on the NPN and PNP outputs which report the unfiltered flow reading. 4.3.4. External Connections: Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 20: Pin Assignments

    The maximum output frequency is 1000 Hz so care must be taken to ensure that this pulse rate is not exceeded. Example Wiring for NPN and PNP pulse outputs: NOTE: Best practice is to place Pull Resistor up near target device Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 21 HIGH THRESHOLD will cause an alarm signal to Latch on when flow is seen above the set value. • LOW THRESHOLD will cause an alarm signal to Latch on when flow is seen below the set value. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 22 The INVERT checkbox will reverse the action of the alarm output. For details for each PIN see the Alarm Logic Table or hover mouse over the set point to see the action of the output with the chosen settings. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 23 Choosing the Reverse flow option allows the user to send a signal from the assigned PIN when reverse flow is seen. Selecting INVERT will reverse the action of the signal to transmit when a positive flow is detected. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 24: Alarm Logic Table

    The NPN and PNP have different outputs when used due to their wiring. • Using the NPN: OFF =Powered +VDC and ON = Unpowered 0VDC • Using the PNP: OFF=Unpowered 0VDC and ON = Powered +VDC NOTE: Alarms use Filtered Flow Values! Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 25: Input

    (zero to 24V for PIN 7/NPN output). Because of the potential for conflict should the PNP output be activated accidentally, Titan Enterprises recommend a resistor so that the sink current cannot exceed 5mA. Example circuits: PIN 6: Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 26 Equivalent to the display right button press in batch mode. Additionally, the input can be configured to act on a rising or falling edge or both types of edge of the pulse as the trigger. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 27: Relay

    Relay Resets when Threshold met: Flow Drops <1.00 = Relay OFF Batch Control: • Total required (Litres): the volume that can pass through the meter before the batch is considered complete and the relay is triggered. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 28: Analog Outputs

    ® The Atrato has a simple Batch Control operation with the inbuilt relay. The operation is based on a relatively constant flow being seen by the meter during the batch fill. An internal algorithm predicts when the target flow level will be seen and shuts off the relay accordingly.
  • Page 29: Flow Details Tab

    The Flow Details tab displays the performance of the meter in real time. The main large display reflects the meter readings showing on the Atrato LCD Display, if fitted, and will mimic that display. The buttons either side have the functions selected on the ‘Configuration’...
  • Page 30 Output Pulse Active Frequency (Hz) No Alarm High Output Alarm State +VDC Alarm Triggered Output Alarm State 0VDC Invert Selected No Alarm Output Alarm State 0VDC Invert Selected Alarm Triggered High Output Alarm State +VDC Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 31 Output Alarm State (Latched) (Reset by press and hold Left Button) Relay Open Not Used Flow Switch Open Flow Switch No Alarm Flow Switch Closed Flow Switch Alarm Analog Analog Current 12.54 Current output (4mA-20mA) Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 32: Advanced Tab

    When logged on the PIN can be changed or removed. A PIN can be removed either by setting it to zero (0000) or by de-selecting the “Advanced Tab protected with PIN” option. If you forget the PIN please contact your supplier for resetting instructions. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 33: Median Filter

    The median filter completely ignores this reading and for the zero reading returns the value of 3 from the results either side. This filter is particularly useful at low flows where a small dip in value could drop a result below the internal cut off levels. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 34: Special Options: Limit Gain

    The Atrato flowmeter has an automatic gain which will increase in order to find a signal. The more this is increased above calibration, the weaker the signal is in the liquid.
  • Page 35 “Slower” button to adjust the signal to the left of the measurement window. If required, the user can then enter a simple scaling factor on the User Settings tab, to adjust the water calibration to that of the liquid being measured. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 36: Data Logging

    (i.e. for longer data logging periods choose 10+ second intervals to limit the size of the file created). Then click the Icon under Storage File and enter a simple filename (no spaces) at a location you desire. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 37 Click it to start the data logging file creation. In the bottom left corner the samples collected will be listed as the log file builds. To finish the log file, simply click Stop Logging. Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 38: Technical Specification

    Power supply 9 – 24V dc (15 – 24V dc for 4-20mA or 0-10V output) Power consumption 110mA (plus analog current) Connections ½” BSP male PEEK or ½” NPT or BSP 316. 3/8” John Guest push-in Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 39 PEEK, food and medical grade or 316 Stainless steel Flow tube 316 Stainless Steel as standard Alternative – Boroscilicate glass Seals Viton as standard Alternative – Nitrile, EPDM, Silicone, Kalrez Housing Aluminium extrusion End Caps ABS/PC Mounting bracket ABS/PC Ext. elastomeric seals Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 40: Troubleshooting

    “FLUID” Shown on LCD Display on No fluid in the meter Check meter for fluid supply meter or in Titan Interface Software Fluid back pressure too low Increase Back pressure on meter Damage to internals of Contact Titan Enterprises...
  • Page 41 Ensure the Limit Gain is checked on the Advance Calibration incorrect Zero set at wrong Remove Null by power temperature cycling meter or using Titan Interface Software (Metraflow only) Calibration incorrect at start up Speed of sound of fluid Check signal using Titan...
  • Page 42 Leak from end of the body of meter Poor seal on inlet/outlet Correct seal Housing damage on If damage is seen, return polymer end caps leading unit to Titan for repair and to internals leaking recalibration Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
  • Page 43 ® Titan Enterprises Ltd ©2021 Atrato_Instruction_Manual_0322...
