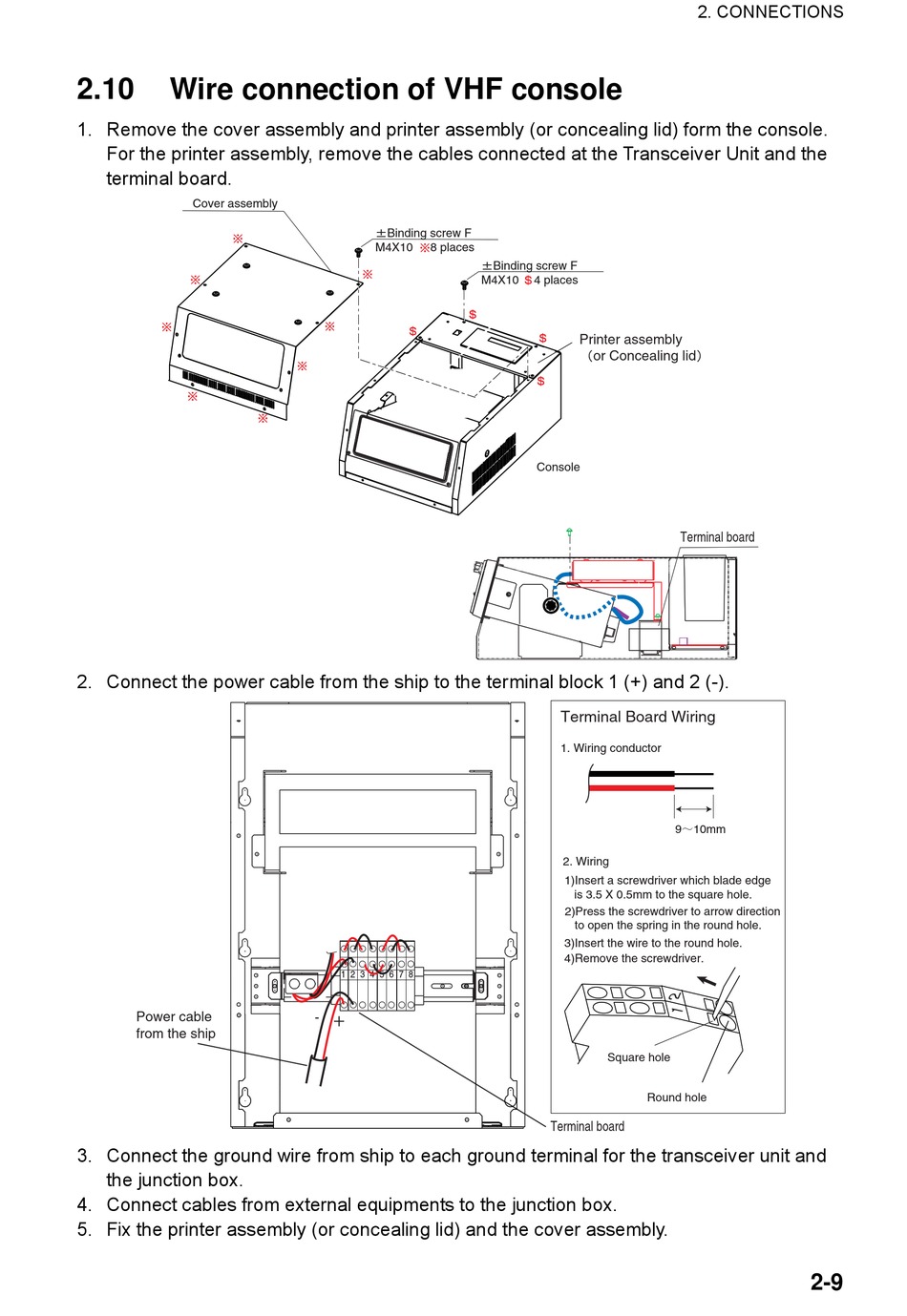

2.10
Wire connection of VHF console
1. Remove the cover assembly and printer assembly (or concealing lid) form the console.
For the printer assembly, remove the cables connected at the Transceiver Unit and the
terminal board.
Cover assembly
2. Connect the power cable from the ship to the terminal block 1 (+) and 2 (-).
Power cable
from the ship
3. Connect the ground wire from ship to each ground terminal for the transceiver unit and
the junction box.
4. Connect cables from external equipments to the junction box.
5. Fix the printer assembly (or concealing lid) and the cover assembly.
Binding screw F
M4X10
8 places
M4X10
1 2 3 4 5 6 7 8
-
Binding screw F
4 places
Printer assembly
or Concealing lid
Console
Terminal Board Wiring
1. Wiring conductor
2. Wiring
1)Insert a screwdriver which blade edge
is 3.5 X 0.5mm to the square hole.
2)Press the screwdriver to arrow direction
to open the spring in the round hole.
3)Insert the wire to the round hole.
4)Remove the screwdriver.
Square hole
Round hole
Terminal board
2. CONNECTIONS
Terminal board
9∼10mm
2-9
