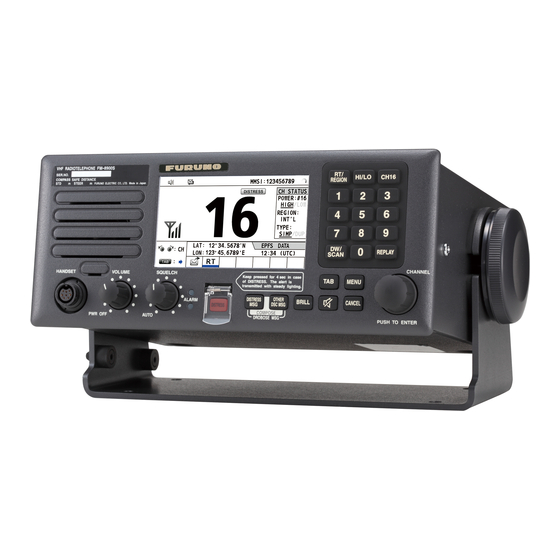

Furuno FM-8900S Operator's Manual

VHF RADIOTELEPHONE
English
- Turns the - Turns the
power off. power on.
- Decreases
- Increases
the volume.
the volume.
VOLUME VOLUME
PWR OFF PWR OFF
Rotate to adjust
the squelch.
AUTO position
SQUELCH
automatically
reduces white
AUTO
noise.
Top: Flashes in red when
receiving distress
alert, distress and
urgency messages.
Bottom: Flashes in green
when receiving
safety and routine
messages, and
when daily test is
completed.
FM-8900S
HANDSET
VOLUME SQUELCH
ALARM
DISTRESS
PWR OFF AUTO
Transmits the
DISTRESS
DISTRESS ALERT.
4 seconds
DISTRESS Composes DSC TX
MSG
message for DISTRESS
ALERT.
Composes DSC TX
OTHER
DSC MSG
message except
DISTRESS ALERT and
DROBOSE.
Composes DSC
DISTRESS OTHER
MSG DSC MSG
TX message for
DROBOSE
Press
(Distress Relay
simultaneously
On Behalf Of
Someone Else).
Operator's Guide
RT/
HI/LO CH16
REGION
2 3
1
4 5 6
7 8 9
0
DW/
REPLAY
SCAN
CHANNEL
Keep pressed for 4 sec in case
of DISTRESS. The alert is TAB
MENU
transmitted with steady lighting.
DISTRESS OTHER
BRILL CANCEL
MSG DSC MSG
COMPOSE
DROBOSE MSG
PUSH TO ENTER
Adjusts the brilliance.
BRILL
- Switches control to
TAB
the tab area.
- Switches the
session.
Turns the main
speaker on/off.
- Cancels the creation
CANCEL
of the DSC message
currently being
created.
- Silences the audio
alarm.
- Erases error
message or pop-up
message.
- Returns previous
layer in multi-layer
menu.
- Erases character
input.
The purpose of this guide is to provide the
basic operation for this equipment. For more
detailed information, see the Operator's Manual.
All brand and product names are trademarks,
registered trademarks or service marks of their
respective holders.
- Switches to the RT (radiotelephone) screen.
RT/
REGION
- Opens/closes the option window for channel
region.
Changes the output power to high (25 W) or
HI/LO
low (1 W).
Switches to the RT screen and sets CH16.
CH16
1 2 3
- Enter alphabet, numeric or symbol.
4 5 6 - Direct selection of corresponding
function on menu and applicable
7 8 9
screens.
0
- Opens the option window for DW/SCAN.
DW/
SCAN
- Cancels DW/SCAN in process.
Opens the replay screen.
REPLAY
CHANNEL
- Selects channel.
- Selects menu items or
CHANNEL
PUSH TO ENTER
changes the page in
Confirms a
multi-page screens.
selection.
PUSH TO ENTER
Opens/closes the menu.
MENU
