Top Panel Connections and Controls
The top panel contains the following items.
ON/OFF Switch Turns unit ON and OFF.
Computer Port RS232 communications port for downloading stored test data to an
Leak Gas Inlet
GAS Inlet
Background
Inlet
Instruction 0055-9017
external computer.
Main hose connection used to collect gas from leak source.
Calibration gas connection.
Gas hose connection used to sample background levels of CH

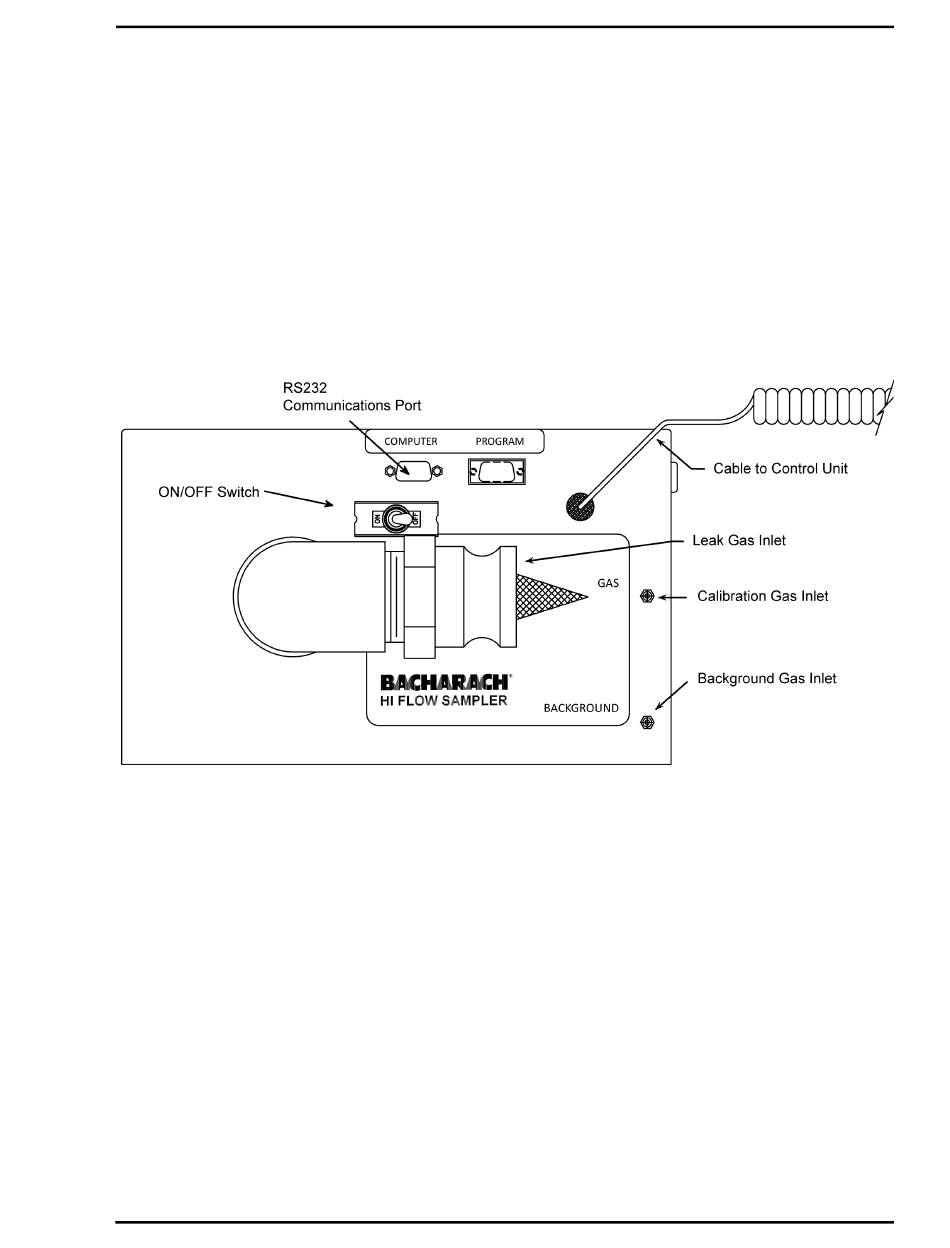

Figure 1-2. Top Panel Connections
Hi Flow
Sampler
.
4
7
