Control Unit Description

The control unit consists of an 8 line by 20 character LCD and the four
pushbuttons.

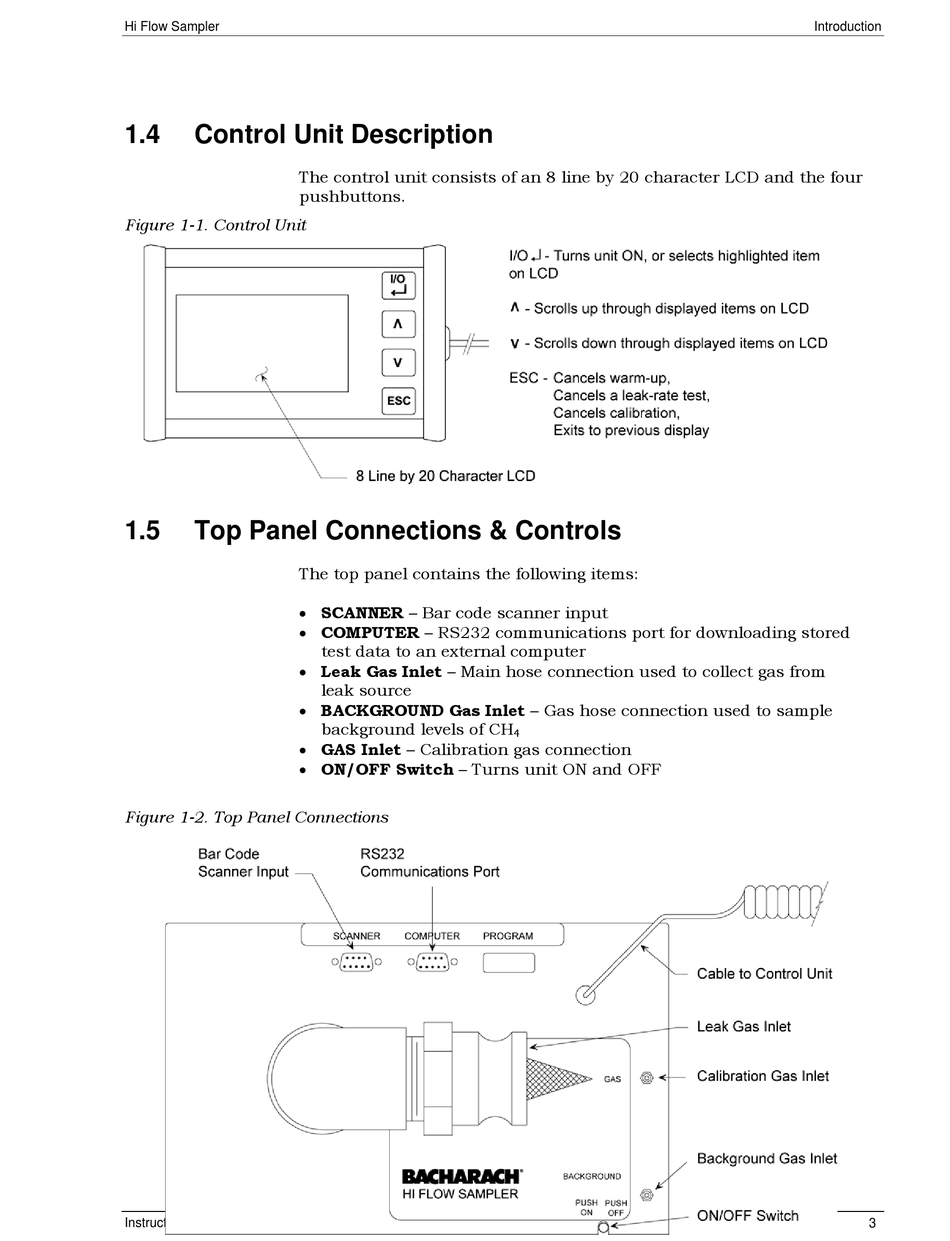

Figure 1-1. Control Unit
1.5
Top Panel Connections & Controls
The top panel contains the following items:
 SCANNER – Bar code scanner input
 COMPUTER – RS232 communications port for downloading stored
 Leak Gas Inlet – Main hose connection used to collect gas from
 BACKGROUND Gas Inlet – Gas hose connection used to sample
 GAS Inlet – Calibration gas connection
 ON/OFF Switch – Turns unit ON and OFF
Figure 1-2. Top Panel Connections
Instruction 0055-9017
test data to an external computer
leak source
background levels of CH
4
