Download this manual See also: Service Manual, Quick Manual

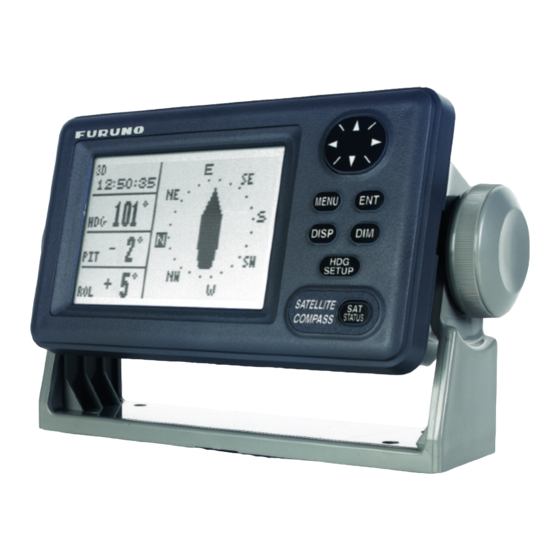

THD SATELLITE COMPASS
SC-110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Furuno SC-110

Summary of Contents for Furuno SC-110

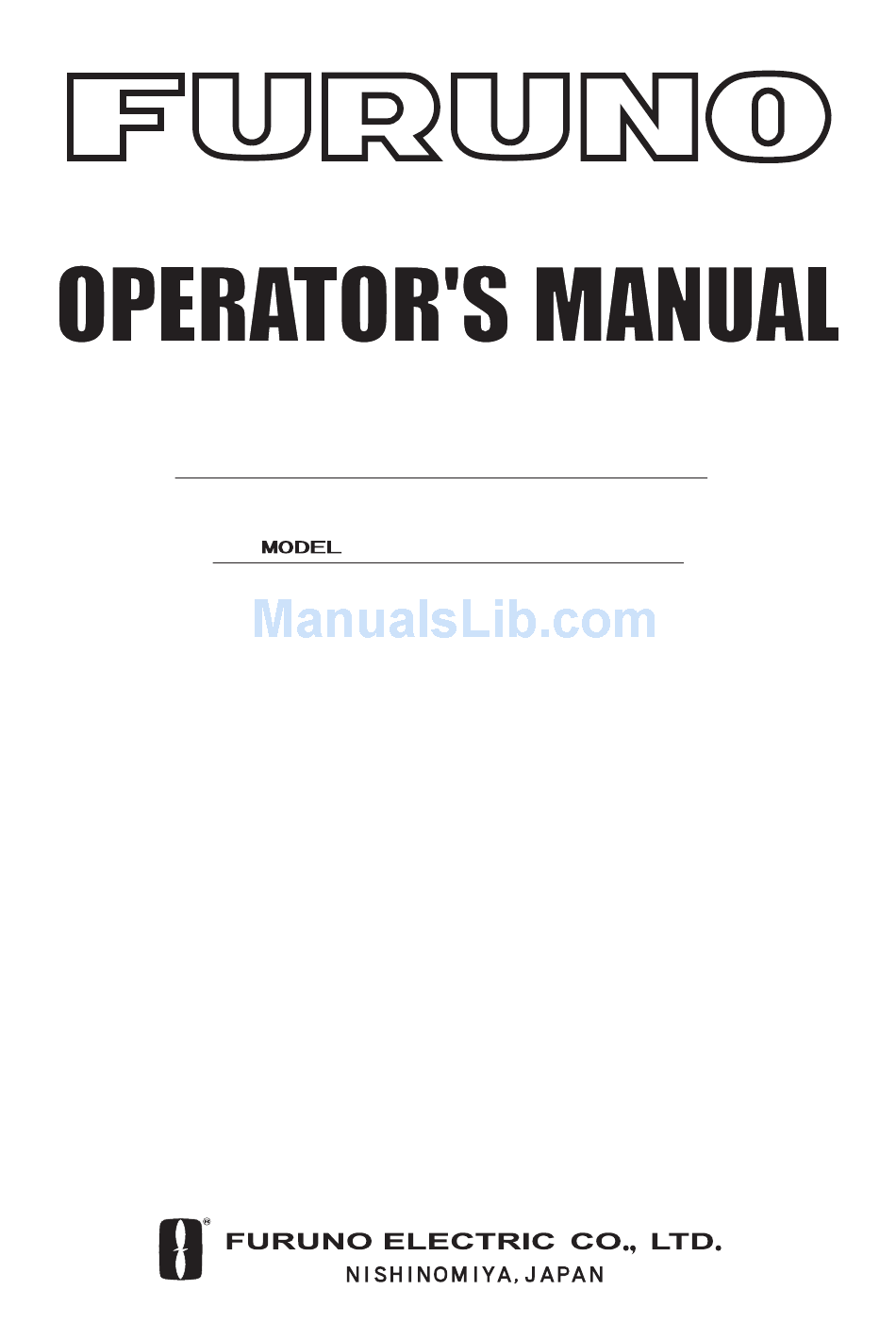

  • Page 1 THD SATELLITE COMPASS SC-110...
  • Page 2 All rights reserved. All rights reserved. Printed in Japan Printed in Japan PUB.No. PUB.No. OME-72570 OME-72570 ( ( DAMI DAMI ) ) SC-110 SC-110 Your Local Agent/Dealer Your Local Agent/Dealer FIRST EDITION : FIRST EDITION : FEB FEB . . 2004 2004 : : JUN JUN .

  • Page 3: Safety Instructions

    WARNING LABEL A warning label is attached to the processor unit. Do not remove the label. If the label is missing or damaged, contact a FURUNO agent or dealer about replacement. WARNING LABEL WARNING Name: To avoid electrical shock, do not remove cover.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ...ii FOREWORD ...iv SYSTEM CONFIGURATION ...v EQUIPMENT LIST...vi SPECIFICATIONS ...SP-1 1 INSTALLATION ... 1-1 1.1 Mounting Considerations... 1-1 1.1.1 Antenna unit... 1-1 1.1.2 Display unit, processor unit... 1-3 1.2 Installing the Antenna Unit... 1-4 1.3 Installing the Processor Unit...
  • Page 5 2.9.4 Time format ... 2-15 2.9.5 Demonstration mode... 2-16 2.10 WAAS/DGPS Setup... 2-17 2.11 OTHERS Menu ... 2-20 2.12 TRIP Menu... 2-21 2.13 Resetting Distance Run ... 2-22 2.14 Choosing External Heading Source for Backup ... 2-22 3 MAINTENANCE, TROUBLESHOOTING...3-1 3.1 Preventive Maintenance ...

  • Page 6: Foreword

    A Word to the Owner of the SC-110 FURUNO Electric Company thanks you for purchasing the FURUNO SC-110 THD Satellite Compass. (Hereafter, for sake of brevity, we refer to SC-110 as Satellite Compass.) We are confident you will discover why the FURUNO name has become synonymous with quality and reliability.

  • Page 7: System Configuration

    SYSTEM CONFIGURATION The SC-110 consists of an antenna, a display unit and a processor unit. The tri-antenna system helps reduce the influence of ship's motion (rolling). Antenna Unit SC-1203F Analog pitch Processor Unit Analog roll Log/Heading alarm (Contact) External heading data...

  • Page 8: Equipment List

    EQUIPMENT LIST Standard supply Name Type GPS Antenna SC-1203F Display Unit SC-502 Processor Unit SC-1101 CP20-02230* CP20-02260* CP20-02241* Installation CP20-02600 Materials CP20-02203* Spare Parts SP20-01101* Optional equipment Name Type CP20-01700 Antenna Cable Set CP20-01710 Antenna TPPX6-3D2V-15M Cable Flush Mount F OP20-29* Flush Mount S OP20-17* Flange...

  • Page 9: Specifications

    1.11 External Beacon Input DISPLAY UNIT Display Type Effective Area Contrast Display Mode POWER SUPPLY SC-110 ±0.6° (95%) 0.1° 45°/s rate-of-turn 4 minutes 10 m, or 5 m (DGPS), 95% of the time AD-10 format: 1 port (specialty port) AD-10 format 5 ports or IEC 61162 format 10 ports...
  • Page 10 Waterproofing Antenna Unit Display Unit Processor Unit Vibration COATING COLOR Display/Processor Unit Antenna Unit IPX6 IPX5 IPX0 IEC 60945 Panel: N3.0 Newtone No.5 (dark gray) Chassis: 2.5GY5/1.5 (light gray) N9.5 (white) SP - 2 E7257S01B...

  • Page 11: Installation

    INSTALLATION Mounting Considerations 1.1.1 Antenna unit General Keep the length of the antenna cable in mind when selecting a mounting location. Installing the antenna above superstructures The antenna must be mounted above all other structures on the vessel to obtain an unobstructed view of the satellites regardless of vessel heading. Failure to do so will cause shadows and multipath reflection problems.
  • Page 12 1. INSTALLATION The horizontal separation between the antenna and masts must be as follows: Mast diameter Separation distance (minimum) 10 cm 30 cm SC-series Antenna Keep the length of antenna cable in mind when selecting a mounting location. The cable comes in lengths of 15 meters (standard supply), or 30 m or 50 m (optional lengths).

  • Page 13: Display Unit, Processor Unit

    Location influenced by reflected wave. SC-series Antenna Example of antenna installed below superstructures 1.1.2 Display unit, processor unit Choose a location where vibration and shock are minimal. Install the units well away from locations subject to rain and water splash. Locate the units away from air conditioner vents.

  • Page 14: Installing The Antenna Unit

    1. INSTALLATION Installing the Antenna Unit Note: “Bird-repellent fixtures” may be attached to each antenna element and the center cover to prevent birds from alighting on them. If it is more convenient to attach them before fixing the antenna unit to the mounting location, do step 7 before fixing the antenna unit.
  • Page 15 2. Fix the antenna unit to the post as shown below. Set the antenna unit to the flange. Flat washer Spring washer (Torque: 29.58 Nm) Fastening antenna unit to a post 1. INSTALLATION Fix the #1 and #2 antennas on the fore-and-aft line of the ship, with the #2 antenna forward of the #1 antenna.
  • Page 16 1. INSTALLATION 3. Coat each nut, bolt and washer with silicone rubber for waterproofing. Coating bolt, nut and washer with silicone rubber 4. As shown below, make a loop in the antenna cable and fasten the antenna cable to the antenna post with two cable ties. Coat with Three Bond 1211 (supplied).

  • Page 17: Installing The Processor Unit

    Installing the Processor Unit The processor unit should be mounted aligned with the ship’s fore-and-aft line. It can be mounted on the deck, bulkhead, or on the underside of a desk. Choose a mounting location which allows you to easily view the power lamp on the top of the unit and which is within 2.5 of the ship’s fore-and-aft line.

  • Page 18: Deck Mount

    1. INSTALLATION 1.3.2 Deck mount Orient the processor unit as shown below and fix it to the mounting location with four tapping screws (M5x20). You will set the orientation later on the menu. Mount processor unit so reference direction is within ±...

  • Page 19: Installation On The Underside Of A Desk

    1.3.3 Installation on the underside of a desk The processor unit may be mounted on the underside of a desk as shown in the figure below. Do not install it on the overhead. Installation of processor unit on the underside of a desk Reference Direction Mount processor unit so reference direction is...

  • Page 20: Installing The Display Unit

    1. INSTALLATION Installing the Display Unit 1.4.1 Desktop, overhead mounting 1. Fasten the hanger to the mounting location with four tapping screws (supplied). See the outline drawing for mounting dimensions. 2. Screw the knobs into the display unit. 3. Set display unit to the hanger and tighten the knobs. 4.
  • Page 21 Flush mount “S” Flush mount “S” kit Type: OP20-17, Code No.: 000-040-720) Name Flush Mount Fixture 20-007-2401 Wing Bolt M4X30 Wing Nut Hex Bolt M6X12 Spring Washer 1. Make a cutout in the mounting location. The dimensions are 167(W) x 92(H) 2.

  • Page 22: Wiring

    1. INSTALLATION Wiring This section covers general wiring. For further details see the interconnection diagram at the back of this manual. ANTENNA UNIT SC-1203F GPS ANT ANTENNA Terminals GPS ANT1: No color GPS ANT2: Yellow line GPS ANT2: Red line (using cable TPPX6-3D2V-15M) 1-12 PROCESSOR UNIT...
  • Page 23 Note 1: Use cable type DPYC-1.5 (or equivalent) for the power cable. DPYC-1.5 Sectional view of coaxial cable DPYC-1.5 Note 2: The optional antenna cable set (CP20-01700 or CP20-01710) allows you to extend antenna cable length to 30 m (50 m). See next page for how to attach the connector.
  • Page 24 1. INSTALLATION How to attach connector N-P-8DFB Outer Sheath Armor Inner Sheath Shield Cover with heat-shrink tubing and heat. Clamp Nut Gasket 1-14 (Dimensions in millimeters.) Cut off insulator and core by 10 mm. Twist shield end. Slip on clamp nut, gasket and clamp as shown left.

  • Page 25: Initial Settings

    Initial Settings Follow the procedures in this section to enter initial settings. 1.6.1 Confirming satellite status Press the [SAT STATUS] key. Satellites being tracked When the system is turned on for the first time it is in the “cold-start” state, which means there is no satellite data (almanac data) stored.

  • Page 26: Choosing Mounting Method

    1. INSTALLATION 1.6.2 Choosing mounting method 1. Turn on the processor unit and then press the [MENU] key to show the menu. 2. Use the Omnipad ( key. 3. “MOUNTING” is selected; press the [ENT] key. 4. Use the Omnipad to choose the mounting method: “FLOOR”, “WALL” or “INVERT”...

  • Page 27: Connection Of External Equipment

    Connection of External Equipment 1.7.1 General wiring All external equipment are terminated on the MAIN Board inside the processor unit. Turn off the power and unfasten four screws to remove the cover. Connect wiring from external equipment referring to the interconnection diagram. Use the opener supplied to open terminal blocks, referring to the instructions below.

  • Page 28: Fabrication Of Cables

    1. INSTALLATION 1.7.2 Fabrication of cables Cable Power cable DPCY-1.5 (or equivalent) Cable for IEC 61162 format equipment (JIS cable TTYCS-1 or equivalent) Cable for AD-10 format equipment ((JIS cable TTYCS-1Q SECTIONAL VIEW (TTYCS-1) or equivalent) SECTIONAL VIEW (TTYCS-1Q) Note 1: Attach labels (supplied) to cables to differentiate between them. Note 2: A plastic sheet is placed across the cable glands of the processor unit to keep out foreign material.

  • Page 29: Operation

    OPERATION Controls MENU key: Opens/closes menu. DISP key: Selects display. HOW TO REMOVE THE COVER Omnipad: Selects menu items; shifts cursor. ENT key: Terminates keyboard input. DIM key: Adjusts panel illumination, HDG SETUP key: Sets up the equipment. SAT STATUS key: Shows status display See illustration below for description.

  • Page 30: Turning The Power On/Off

    2. OPERATION Turning the Power On/Off Use the power switch on the processor unit to turn the power to the display unit on and off. A beep sounds and the display starts up with the last-used display. Note: If backup heading data is used the heading indication flashes until faithful heading data becomes available.

  • Page 31: Choosing A Display

    Choosing a Display Use the [DISP] key to show a display desired. 2.4.1 Description of displays Heading display The heading display shows heading, course, speed, date, time and position-fixing status. The heading status mark changes in the sequence shown below. The “final calculations” mark disappears after heading becomes reliable, which is approximately 90 seconds after that mark appears.
  • Page 32 2. OPERATION Steering display The steering display shows heading in digital and analog form. SOG and COG are also indicated. Note that COG accuracy is low when the own ship speed is low. The faster the speed, the more accurate the COG. Bearing scale Compass display...
  • Page 33 Speed display Depending on the setting of DISTANCE DISP on the TRIP menu, the Set and Drift display or the Distance Run display is shown. The current indication requires a Doppler Speed Log. ° CURRENT Current (direction, speed) Ground speed DISTANCE Distance run SOG/STW display...

  • Page 34: Alarm Setup

    2. OPERATION Alarm Setup The SC-110 can alert you with audible and visual alarms when GPS signal, DPGS signal and WAAS signal are lost. To set the DGPS alarm, do the following: 1. Press the [MENU] key to show the menu.

  • Page 35: Confirming Satellite Status

    Confirming Satellite Status You can check the receiving condition of each antenna unit as follows: 1. Press the [MENU] key to open the menu. 2. Choose SATELLITE and then press the [ENT] key. Elevation angle 5 Antenna element 3. Use ◄ or ► to choose antenna element for which to confirm receiving status. 4.

  • Page 36: Gps Setup

    2. OPERATION GPS Setup The GPS SETUP menu smoothes position and course, averages speed, applies position offset, and deactivates unhealthy satellites. 2.7.1 Displaying the GPS setup menu 1. Press the [MENU] key to open the menu. 2. Choose GPS SETUP and then press the [ENT] key. 2.7.2 GPS SETUP menu description SMOOTH POS (Smoothing position)

  • Page 37: Output Data

    DISABLE SV (Disable satellite) Every GPS satellite is broadcasting abnormal satellite number(s) in its Almanac, which contains general orbital data about all GPS satellites. Using this information, the GPS receiver automatically eliminates any malfunctioning satellite from the GPS satellite schedule. However, the Almanac sometimes may not contain this information.
  • Page 38 GLL: Geographic position, latitude/longitude VHW: Water speed and heading VBW: Dual ground/water speed HVE: GPS antenna up-down motion amplitude (FURUNO proprietary sentence) ZDA: Time and date 7. Use the Omnipad to choose OFF or ON as appropriate and then press the [ENT] key.
  • Page 39 11. Use the Omnipad to choose the baud rate of the equipment connected and then press the [ENT] key. 12. INTERVAL is selected; press the [ENT] key. 13. Use the Omnipad to choose appropriate output interval and then press the [ENT] key.
  • Page 40 2. OPERATION Output sentence limitation The number of sentences which can be output depends on baud rate and output interval settings. The maximum number of characters per each data sentences are shown in the table below and the total number of characters must satisfy the formula shown below.

  • Page 41: Log Pulse

    2.8.2 Log pulse This equipment provides SOG (speed over ground) in high accuracy. It converts an SOG value to a pulse signal and outputs at the rate of 200 or 400 pulses/nm. 1. Press the [MENU] key. 2. Choose I/O SETUP and then press the [ENT] key. 3.

  • Page 42: System Setup

    2. OPERATION System Setup 2.9.1 Geodetic data Your unit is preprogrammed to recognize most of the major chart systems of the world. Although the WGS-84 system (default setting) is the GPS standard, other categories of charts in other datum still exist. Match the GPS datum with the chart system you use.

  • Page 43: Units Of Measurement

    2.9.2 Units of measurement Distance/speed can be displayed in nautical miles/knots, kilometers/kilometers per hour, or miles/miles per hour. 1. Press the [MENU] key to open the menu. 2. Choose SYS SETUP and then press the [ENT] key. 3. Choose UNITS. 4.

  • Page 44: Demonstration Mode

    2. OPERATION 2.9.5 Demonstration mode The demonstration mode provides simulated operation of the equipment. 1. Press the [MENU] key to open the menu. 2. Choose SYS SETUP and then press the [ENT] key. 3. Choose DEMO and then press the [ENT] key. 4.

  • Page 45: Waas/Dgps Setup

    2.10 WAAS/DGPS Setup 1. Press the [MENU] key to open the menu. 2. Choose WAAS/DGPS and then press the [ENT] key. WAAS/DGPS MODE WAAS SEARCH: AUTO 134 CORRECTIONS DATA SET: 00 DPGS STATION: AUTO RATE: 000BPS FREQ: 310.0kHz STATION: GOOD* DATA:GOOD* SIG.
  • Page 46 2. OPERATION 2) Use the Omnipad to choose WAAS satellite search method, AUTO or MANUAL as appropriate. For MANUAL, press the [ENT] key, enter appropriate WAAS satellite referring to the illustration below and then press the [ENT] key. Provider WAAS EGNOS 3) CORRECTIONS DATA SET is selected;...
  • Page 47 2. OPERATION 3) FREQ is selected; press the [ENT] key. 4) The cursor is selecting the hundredths digit so press ▲ or▼ to display appropriate digit. Press ► to shift the cursor to the tenths place. 5) Set other digits appropriately. 8.

  • Page 48: Others Menu

    2. OPERATION 2.11 OTHERS Menu The OTHERS menu contains the following items: HOLD HDG DATA: Choose whether to display last-used heading data at power on or not. Because this data is not reliable, the heading indication flashes to alert you. HDG RESTORATION: Choose how to restore GPS signal, automatically or manually, after it is lost.

  • Page 49: Trip Menu

    2.12 TRIP Menu The TRIP menu functions to Choose the indication to show on the SOG/STW display Choose source of distance run Reset distance run to zero Smooth the tide drift indication Enter smoothing for rate of turn and display range scale 1.

  • Page 50: Resetting Distance Run

    2. OPERATION 2.13 Resetting Distance Run The distance run may be reset to zero as below when the source of distance run is GPS or VBW. 1. Press the [MENU] key to display the main menu. 2. Choose TRIP MENU and then press the [ENT] key. 3.

  • Page 51: Maintenance, Troubleshooting

    MAINTENANCE, TROUBLESHOOTING Preventive Maintenance Regular maintenance is important for good performance. A maintenance program should be established and should include the following points. Check connectors and ground terminal on the processor unit and display unit for tightness. Check ground terminal for rust. Clean or replace as necessary. Check for water leakage in the antenna cable.

  • Page 52: Troubleshooting

    Heading output from SC-110 does not appear on external equipment. If large heading error occurs or heading indication is frequently interrupted, contact your dealer for advice. Troubleshooting...

  • Page 53: Diagnostics

    Diagnostics Diagnostic test1 The diagnostic test1 checks the equipment for proper operation. Note: Heading is not output during the diagnostic test, and this is communicated with an appropriate message. After completing the diagnostic test, turn the power off and on to update heading data. 1.
  • Page 54 3. MAINTENANCE, TROUBLESHOOTING OK shown for normal; NG (No Good) shown for error GPS receiver Processor unit Display unit ROM, RAM, KEY TEST OUTPUT TEST (for serviceman) (For serviceman) DISPLAY TEST PROGRAM NUMBER DISPLAY 6. Turn off the processor unit to quit the diagnostic test1. ROM RAM GPS1 PUSH KEY...
  • Page 55 Diagnostic test2 If the heading indication changes randomly when ship is at anchor or does not change when the ship moves, run the test2 following the procedure below, with the ship at anchor and satellite signal received. Note: Heading is not output during the diagnostic test, and this is communicated with an appropriate message.
  • Page 56 3. MAINTENANCE, TROUBLESHOOTING Diagnostic test3 This test checks the buzzer signal/contact for proper operation. 1. Press the [MENU] key to open the menu. 2. Choose SYS SETUP and then press the [ENT] key. 3. Choose TEST? and then press the [ENT] key. 4.

  • Page 57: Program Number

    Program Number You may display the program number as follows: 1. Press the [MENU] key to open the menu. 2. Choose SOFT VER. and then press the [ENT] key. 3. Press the [DISP] key to close the program version no. display. Clearing Data You may clear GPS data and system data all at once or individually as follows: 1.

  • Page 58: Replacement Of Battery

    3. MAINTENANCE, TROUBLESHOOTING Replacement of Battery The processor unit has a battery that stores data when the power is turned off. When the battery voltage is low, the message “BATTERY!” appears on the display. Have a qualified technician replace the battery, following the procedure below.

  • Page 59: Replacement Of Fuse

    Replacement of Fuse The 3 A fuse on the POWER Board inside the processor unit protects the equipment from overcurrent and reverse polarity of the power supply. If the fuse blows, have a qualified technician check the fuse. Error Messages The alarm sounds for equipment error and is accompanied by a flashing exclamation mark ( ).
  • Page 60 3. MAINTENANCE, TROUBLESHOOTING Error Message BATTERY ALM! Voltage of battery in processor unit is low. DATA ERR!* GPS data (from the GPS receiver in the processor unit) is lost for one minute. Heading output is stopped and the heading indication shows “- - -“. DGPS ERROR! DGPS data (from external DGPS receiver) is lost for one minute.

  • Page 61: Appendix

    APPENDIX 1. Menu Tree BUZZER (SHORT, LONG, CONSTANT) ALARMS MENU DGPS (OFF, ON) MESSAGES SMOOTH POS (0 SEC) GPS SETUP SMOOTH S/C (5 SEC) LAT OFFSET (0.000’N) LON OFFSET (0.000’E) DISABLE SV DATUM (WGS84, WGS72, OTHER 001 (WGS84)) SYS SETUP UNITS (kt, km/h, mi/h) TIME DIFF (+00:00) TIME DISP (12 HOUR, 24 HOUR)

  • Page 62: Digital Interface

    APPENDIX 2. Digital Interface Output sentences of channel 1 DATA OUT1-5: HDT, HDM, ROT, Patt, Phve, VTG, GGA, GLL, GNS, ZDA, VHW, VBW, VDR DATA OUT 6: AD-10 Transmission interval HDT, HDM, ROT, Patt, Phve: 100 ms VTG, GGA, GLL, GNS, ZDA, VHW, VBW, VDR: 1 s For details see page 2-12.
  • Page 63 APPENDIX Schematic diagrams Data IN Load requirements Isolation: Optocoupler Input Impedance: 440 ohm Max. voltage: ±15V Data Out 1-6 Output drive capability Max : 10mA AP-3...
  • Page 64 APPENDIX Data sentences PFECatt- True heading, pitching, rolling $PFEC,GPatt,xxx.x,+xx.x,-xx.x<CR><LF> $PFEC,GPatt,xxx.x,+xx.x,-xx.x*hh<CR><LF> GGA - Global positioning system (GPS) fix data Time, position and fix related data for a GPS receiver. Differential reference station ID, 0000-1023 Age of differential GPS data Units of geoidal separation, m Geoidal separation Units of antenna altitude, m Antenna altitude above/below...
  • Page 65 GNS - GNNS fix data $--GNS,hhmmss.ss,llll.lll,a,yyyyy.yyy,a,c--c,xx,x.x,x.x,x.x,x.x,x.x*hh<CR><LF> +-------+--------------------------------- 3 +---+--------------------------------------------- 2 +------------------------------------------------------------- 1 1. UTC of position 2. Latitude, N/S 3. Longitude, E/W 4. Mode indicator 5. Total number of satllite in use,00-99 6. HDOP 7. Antenna altitude, metres, re:mean-sea-level(geoid) 8. Geoidal separation 9.
  • Page 66 APPENDIX VBW - Dual ground/water speed $--VBW,x.x,x.x,A,x.x,x.x,A,x.x,A,x.x,A*hh<CR><LF> | +--- 11 +----- 10 +-------- 9 | +----------- 8 +-------------- 7 | +----------------- 6 +-------------------- 5 | | +------------------------ 4 | +--------------------------- 3 +------------------------------ 2 +---------------------------------- 1 1. Longitudial water speed, knots 2.
  • Page 67 VLW - Distance travelled through the water The distance travelled, relative to the water. $--VLW,x.x,N,x.x,N*hh<CR><LF> | +--------- 3 | +---+----------- 2 +---+----------------- 1 1. Total cumulative distance, nautical miles 2. Distance since reset, nautical miles 3. Checksum VTG - Course over ground and ground speed COG and SOG obtained by processing the GPS signals.

  • Page 68: Input/Output Ports

    200ms, 1s, 2s, selectable), VTG, GGA, GLL, GNS, ZDA, VHW, VBW, VDR : (1s, 2s, selectable) ATT sentence Proprietary sentence or FURUNO sentence Only P sentence : output rate of 25ms, 100ms,200ms, 1s, 2s, selectable ATT sentence – True heading, pitching, rolling $PFEC,GPatt,xxx.x, +xx.x, +xx.x<CR><LF>...
  • Page 69 Port Terminal Name Label DATA WAGO OUT6 231-304/026-000 LOG/ WAGO ALARM 231-306/026-000 DATA IN WAGO 231-305/026-000 I/O Signal Remarks Heading AD-10 only AD-10 output interval: 25ms 200 pulse/nm or 400 pulse/nm (software), 0.5A max. Signal Heading alarm, 0.5A max, normal close alarm Heading Heading data in either AD-10 or...

  • Page 70: Parts List And Parts Location

    This equipment contains complex modules in which fault diagnosis and repair down to component level are not practical (IMO A.694(17)/8.3.1. Only some discrete components are used. FURUNO Electric Co., Ltd. believes identifying these components is of no value for shipboard maintenance; therefore, they are not listed in the manual. Major modules can be located on the parts location photo on this and the next page.
  • Page 71 F U R U N O ELECTRICAL PARTS LIST SYMBOL TYPE PRINTED CIRCUIT BOARD 20P8189, CPU Model SC-50/110 Unit SC-502 DISPLAY UNIT Ref.Dwg. Blk.No. CODE No. REMARKS Display Unit, cover opened APPENDIX Page SHIPPABLE ASSEMBLY CPU Board (20P8189) AP-11...

  • Page 72: Geodetic Chart Codes

    APPENDIX 5. Geodetic Chart Codes 001：WGS84 002：WGS72 003：TOKYO ：Mean Vallue (Japan, Korea, and Okinawa) 004：NORTH AMERICAN 1927 ：Mean Vallue (CONUS) 005：EUROPEAN 1950 ：Mean Vallue 006：AUSTRALIAN GEODETIC 1984 ：Australla and Tasmania Island 007：ADINDAN ：Mean Value(Ethiopia and Sudan) 008： ：Ethiopia ：Mall 009： ：Senegal 010：...

  • Page 73: Principle Of Satellite Compass

    A fraction of a carrier wavelength, , is processed by FURUNO’s advanced kinematic technology in geographical survey, thus determining a vector (range and orientation) A1 to A2. In reality, a third antenna is used to reduce the influence of pitch, roll and yaw, and five satellites are processed to process 3D data.

  • Page 74: What Is Waas

    SBAS signal. Furuno will accept no responsibility for the use of the signal for other than the above stated purpose. It is the user’s responsibility to exercise common prudence and navigational judgment while using...

  • Page 75: Packing List

    ＰＡＣＫＩＮＧ ＬＩＳＴ SC-1203F N A M E ユニット UNIT GPSｱﾝﾃﾅ GPS ANTENNA 工事材料 INSTALLATION MATERIALS 鳥よけ BIRD-REPELLENT FIXTURE 六角ﾅｯﾄ １種 HEX.NUT 座金 WASHER ｽﾘｰﾎﾞﾝﾄﾞ SEALANT ｶﾞｽｹｯﾄ GUSKET （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） DESCRIPTION/CODE № O U T L I N E SC-1203F 000-041-926 20-024-3101-3...
  • Page 77 工事材料表 工事材料表 工事材料表 工事材料表 INSTALLATION MATERIALS 番 号 名  称 NAME ｹｰﾌﾞﾙ組品 ANTENNA CABLE ASSY. （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） 004-379-660 CODE NO. CODE NO.
  • Page 78 ＰＡＣＫＩＮＧ ＬＩＳＴ ＰＡＣＫＩＮＧ ＬＩＳＴ ＰＡＣＫＩＮＧ ＬＩＳＴ ＰＡＣＫＩＮＧ ＬＩＳＴ SC-502-J/E SC-502-J/E SC-502-J/E SC-502-J/E N A M E ユニット ユニット UNIT UNIT ユニット ユニット UNIT UNIT 表示部 DISPLAY UNIT 工事材料 工事材料 工事材料 工事材料 INSTALLATION MATERIALS INSTALLATION MATERIALS INSTALLATION MATERIALS INSTALLATION MATERIALS 工事材料 INSTALLATION MATERIALS 1.ｺ-ﾄﾞ番号末尾の[**]は、選択品の代表型式/ｺｰﾄﾞを表します。 CODE NUMBER ENDED BY "**" INDICATES THE NUMBER OF TYPICAL MATERIAL. （略図の寸法は、参考値です。...
  • Page 79 工事材料表 工事材料表 工事材料表 工事材料表 INSTALLATION MATERIALS 番 号 名  称 NAME +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ +TAPPING SCREW （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） 004-380-660 CODE NO. CODE NO.
  • Page 80 ＰＡＣＫＩＮＧ ＬＩＳＴ ＰＡＣＫＩＮＧ ＬＩＳＴ ＰＡＣＫＩＮＧ ＬＩＳＴ ＰＡＣＫＩＮＧ ＬＩＳＴ SC-1101-J/E SC-1101-J/E SC-1101-J/E SC-1101-J/E N A M E ユニット ユニット UNIT UNIT ユニット ユニット UNIT UNIT 演算部 PROCESSOR UNIT 予備品 予備品 予備品 予備品 SPARE PARTS SPARE PARTS SPARE PARTS SPARE PARTS 予備品 SPARE PARTS 工事材料 工事材料 INSTALLATION MATERIALS INSTALLATION MATERIALS 工事材料...
  • Page 81 工事材料表 工事材料表 工事材料表 工事材料表 INSTALLATION MATERIALS 番 号 名  称 NAME ｹｰﾌﾞﾙﾗﾍﾞﾙ CABLE LABEL 操作ﾚﾊﾞｰ TERMINAL OPENER +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ +TAPPING SCREW （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） 004-380-560 CODE NO.
  • Page 82 OUTLINE PART PART PART PART ﾋｭｰｽﾞ FUSE MFR'S NAME MFR'S NAME MFR'S NAME MFR'S NAME FURUNO FURUNO FURUNO FURUNO ELECTRIC ELECTRIC ELECTRIC ELECTRIC （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）...
  • Page 83 工事材料表 工事材料表 工事材料表 工事材料表 INSTALLATION MATERIALS 番 号 名  称 NAME ﾖｳｾﾂｶﾝﾌﾗｼﾞ STEEL WELDING PIPE FLANGES （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） 004-378-230 CODE NO.
  • Page 84 ﾌﾗｯｼｭﾏｳﾝﾄｷｯﾄ ﾌﾗｯｼｭﾏｳﾝﾄｷｯﾄ ﾌﾗｯｼｭﾏｳﾝﾄｷｯﾄ ﾌﾗｯｼｭﾏｳﾝﾄｷｯﾄ FLUSH MOUNT KIT. FLUSH MOUNT KIT. FLUSH MOUNT KIT. FLUSH MOUNT KIT. 番 号 名  称 NAME 化粧ﾊﾟﾈﾙ COSMETIC PANEL +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ TAPPING SCREW ﾊﾞﾈ座金 SPRING WASHER 六角ﾎﾞﾙﾄ ｽﾘ割り HEX.BOLT(SLOTTED HEAD) （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）...
  • Page 85 ﾌﾗｯｼｭﾏｳﾝﾄｷｯﾄ ﾌﾗｯｼｭﾏｳﾝﾄｷｯﾄ ﾌﾗｯｼｭﾏｳﾝﾄｷｯﾄ ﾌﾗｯｼｭﾏｳﾝﾄｷｯﾄ FLUSH MOUNT KIT. FLUSH MOUNT KIT. FLUSH MOUNT KIT. FLUSH MOUNT KIT. 番 号 名  称 NAME ﾌﾗｯｼｭﾏｳﾝﾄ FIXING PLATE FOR FLUSH MOUNT 蝶ﾅｯﾄ WING NUT 蝶ﾎﾞﾙﾄ WING SCREW ﾊﾞﾈ座金 SPRING WASHER 六角ﾎﾞﾙﾄ ｽﾘ割り HEX.BOLT(SLOTTED HEAD) （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）...
  • Page 86 Takahashi T Y. Hatai...
  • Page 91 K.MIYAZAWA SC-110 サテライトコンパス Takahashi T 名称 相互結線図 Y. Hatai MASS NAME SATELLITE COMPASS INTERCONNECTION DIAGRAM C7257-C01- B FURUNO ELECTRIC CO., LTD. *3 *4 TNC-J-3 空中線部 ANTENNA UNIT SC-1203F TNC-J-3 GPS ANT 1 TNC-J-3 GPS ANT 2 TNC-J-3 GPS ANT 3 IEC61162フォーマット接続...

  • Page 92: Index

    INDEX Alarms menu ... 2-6 Battery replacement ... 3-8 Compass display ... 2-4 Control description ... 2-1 Data clearing ... 3-7 Demonstration mode ... 2-16 Diagnostics test 1... 3-3 test 2... 3-5 test 3... 3-6 DIM key ... 2-2 DISP key ... 2-3 Distance run display ...
