Furuno SC-50 Operator's Manual

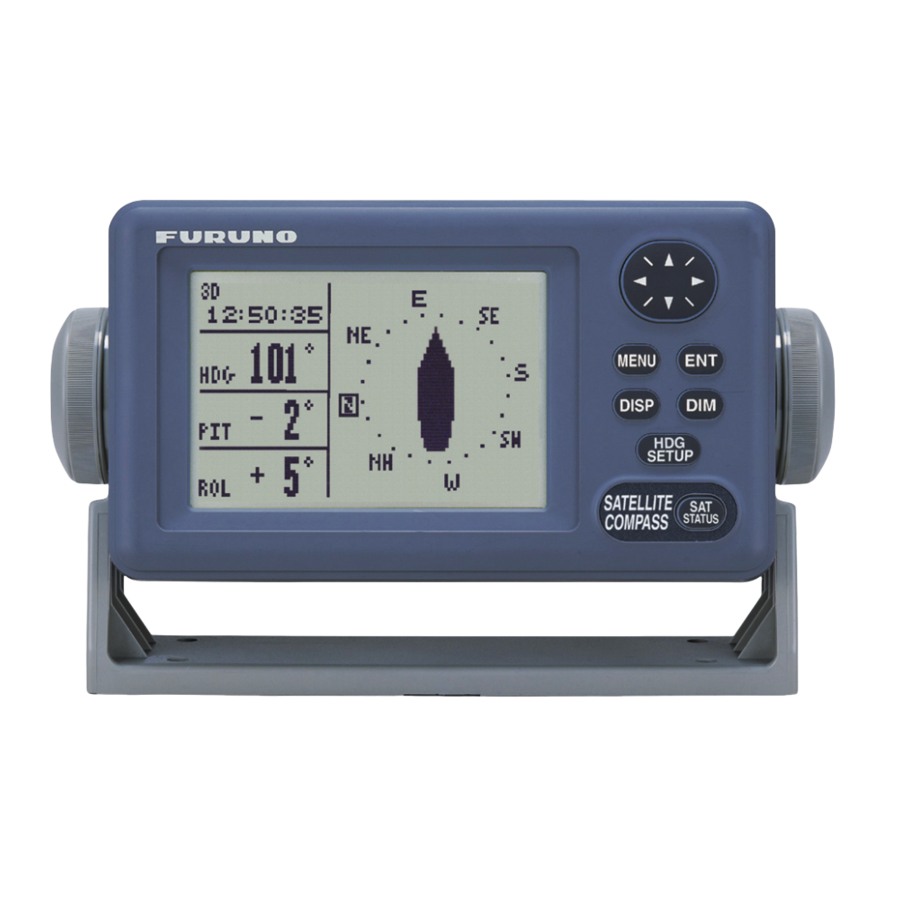

SC-50 THD SATELLITE COMPASS
The purpose of this Operator's Guide is to provide basic operating procedures for this
equipment. For more detailed information, see the Operator's Manual.
MENU key: Opens menu.
DISP key: Selects display; closes menu.
Turning Power On/Off
Use the power switch on the processor unit
to power the display unit on/off.
Dimmer, Display Contrast
1. Press the DIM key.
DIMMER (1-8)
CONTRAST (0-63)
EXIT: [ENT]
2. Press [up] or [down] arrow to adjust
dimmer (panel illumination).
3. Press [left] or [right] arrow to adjust
display contrast.
4. Press the ENT key.

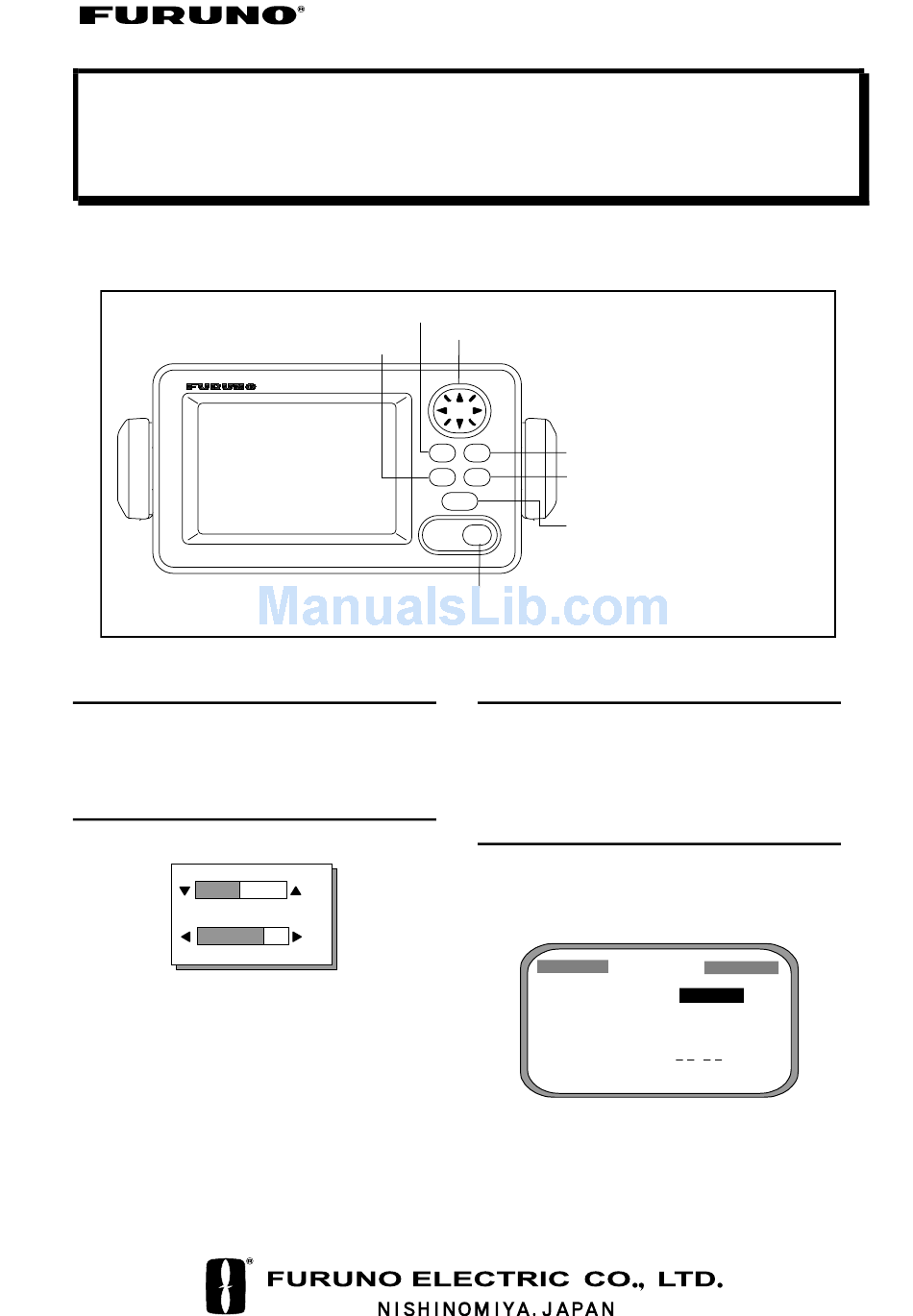

Operator's Guide
Omnipad: Selects menu items; shifts cursor.
MENU ENT
DISP DIM
HDG
SETUP
SATELLITE
SAT
COMPASS STATUS
SAT STATUS key: Shows satellite tracking

Choosing a Display

Use the DISP key to choose desired display,
among heading, steering, compass, ROT
and speed.
Smoothing Position
1.
4
2.
45
3.
4.
5.
ENT key: Terminates keyboard input.
DIM key: Adjusts panel illumination,
display contrast.
HDG SETUP key: Choose heading
status display.
Press the MENU key.
Choose GPS SETUP and then press the
ENT key.
GPS SETUP
SMOOTH POS : 0SEC
SMOOTH S/C : 5SEC
LAT OFFSET : 0.000'N
LON OFFSET : 0.000'E
DISABLE SV :
Choose SMOOTH POS and press the
ENT key.
Use the Omnipad to enter smoothing
value and then press the ENT key.
Press the DISP key to finish.
source.
