Furuno SC-50 Product Specification

SPECIFICATIONS OF SC-50
1. Accuracy
Heading 0.5° RMS
GPS Fix 10 m (95%)
DGPS Fix 5 m (95%)
WAAS Fix 3 m (95%)
2. Follow-up
45°/s rate-of-turn
3. Settling time 3 min
4. Interface
Number of ports
10 ports* 5 ports in AD-10 or
10 ports in IEC 61162-1/-2
* can be utilized in menu selection
1 port AD-10 only
Serial data sentence
25, 100, 200 ms, 1, 2 s data rate:
HDT, HDM(Heading), ROT(Rate of turn)
ATT(Pitch and Roll)
1, 2 s data rate: VHW(Heading), VTG, VBW(SOG),
GGA, GLL, GNS(L/L), ZDA(UTC),
VDR(Set and Drift)
Log output 1 port: 200/400 p/nm (closure)
Alarm output 1 port: Alarm signal (closure signal)
Heading input 1 port: Backup Heading
(AD-10/IEC 61162-1)
HDT, HDG, HDM, VBW, VHW, VLW
DGPS Input 1 port: RTCM SC-104 format
5. Receiver Type Twelve discrete channels.
C/A code, all-in-view
6. Receive Freq L1 (1575.42 MHz)
7. Display Unit 4.5" Monochrome LCD,
95 (W) x 60 (H)mm, 120 x 64 pixels
8. Display Mode
Steering, Nav Data, Compass Rose,
ROT, Heading and Set and Drift modes
POWER SUPPLY
12-24 VDC, 15 W
ENVIRONMENTAL
IEC 60945 for EMC, Vibration, Temperature

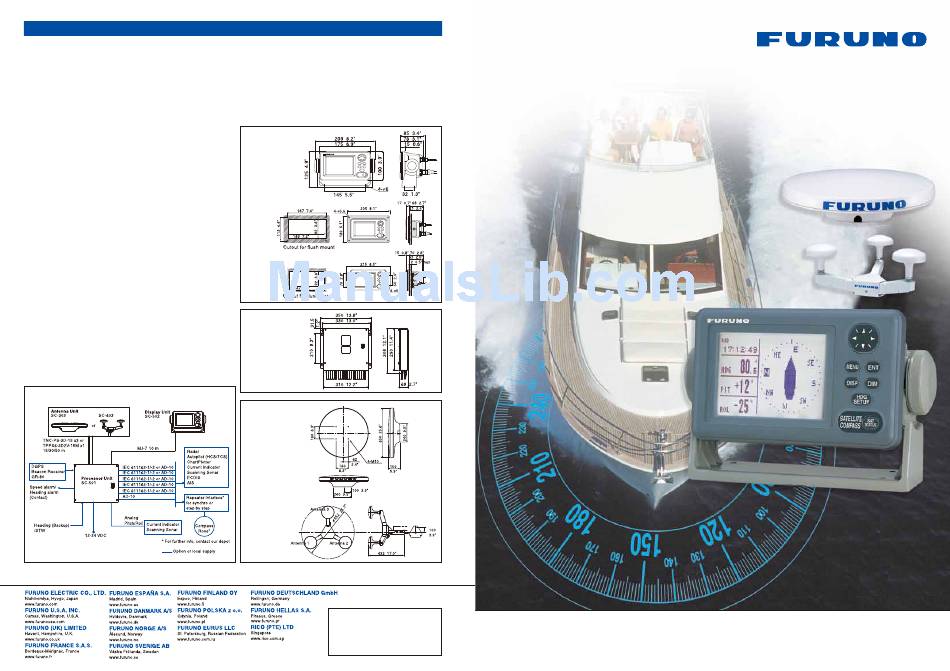

Interconnection Diagram
All brand and product names are registered trademarks, trademarks or service marks of their respective holders.
EQUIPMENT LIST
Standard

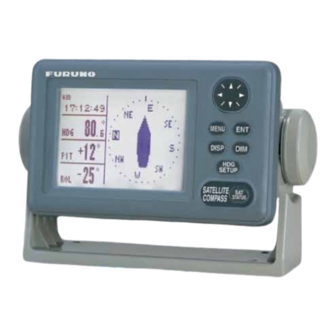

1. Display Unit SC-502 1 unit
2. Antenna Unit SC-303 or SC-603 with 15 m cable 1 unit
3. Processor Unit SC-501 1 unit
Option
1. Antenna Cable, 30 m CP20-01700, 50 m CP20-01710
2. Flush Mount Kit S type CP20-17, F type CP20-29
Display Unit
0.55 kg 1.2 lb
Flush Mount Kit
<F type>
<S type>
Processor Unit
4.2 kg 9.3 lb
Antenna Unit
SC-303 (Radome)
4.2 kg 9.3 lb
SC-603 (Open)
3.9 kg 8.6 lb
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
1209PDF
Catalogue No. N-862b
