C H A P T E R

Troubleshooting

Power Sequencer

FIGURE 2-1
circuits for the odd (1-7) outlet groups and five more for the even (0-8) outlet groups.
Outlet Group 9 is unswitched.
AC Input
FIGURE 2-1
shows only one AC circuit in a power sequencer. There are four of these
~ AC 1-9
ODD (LED)
Power switch for
outlet groups 1-9
Control
Fault (LED)
Ready (LED)

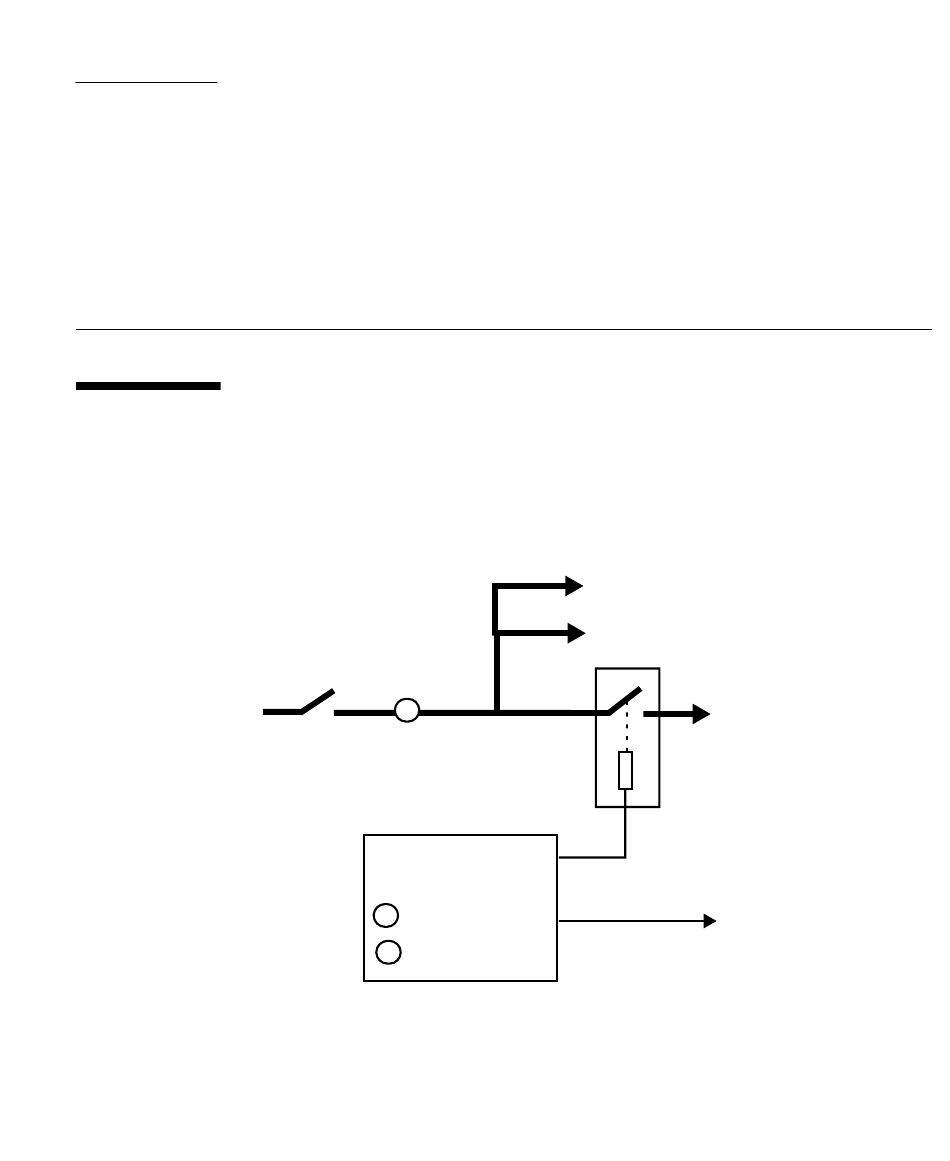

Simplified Block Diagram of a Single Circuit in a Power Sequencer
AC to relays for outlet
groups 3, 5, and 7
AC to outlet group 9 (unswitched)
AC to outlet group 1
Control for outlet group 1
Control for outlet
groups 3, 5, and 7
13
