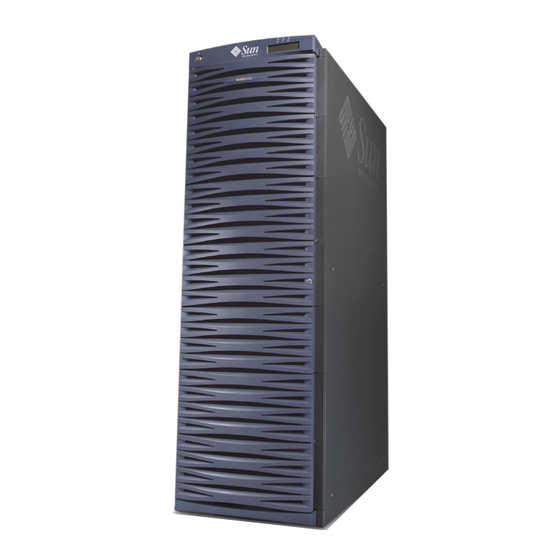

Sun Microsystems Sun Fire 6800 Installation Manual

Sun Microsystems Sun Fire 6800 Installation Manual

Hide thumbs Also See for Sun Fire 6800:
Table of Contents

Advertisement

Quick Links

Download this manual
Sun Fire
6800/4810/4800/3800
™
Systems Installation Guide
Sun Microsystems, Inc.
www.sun.com
Part No. 817-2353-12
April 2004, Revision A
Submit comments about this document at:
http://www.sun.com/hwdocs/feedback

Advertisement

Table of Contents
loading

Related Manuals for Sun Microsystems Sun Fire 6800

Summary of Contents for Sun Microsystems Sun Fire 6800

  • Page 1 Sun Fire 6800/4810/4800/3800 ™ Systems Installation Guide Sun Microsystems, Inc. www.sun.com Part No. 817-2353-12 April 2004, Revision A Submit comments about this document at: http://www.sun.com/hwdocs/feedback...
  • Page 2 Copyright 2004 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, California 95054, Etats-Unis. Tous droits réservés. Sun Microsystems, Inc. a les droits de propriété intellectuels relatants à la technologie incorporée dans le produit qui est décrit dans ce document. En particulier, et sans la limitation, ces droits de propriété intellectuels peuvent inclure un ou plus des brevets américains énumérés à...

  • Page 3: Table Of Contents

    Verifying the Floor Area 1–3 Installing the Sun Fire 6800 System 2–1 Tools 2–1 Unpacking the Sun Fire 6800 System 2–2 Moving and Securing the Sun Fire 6800 System 2–3 2.3.1 Adjusting the Leveling Pads 2–6 2.3.2 Securing the Cabinet to the Floor 2–6 2.3.3...
  • Page 4 Connecting Power Cables to the Sun Fire 6800 System 2–8 Connecting the I/O Assemblies 2–11 Connecting the Administrative Console 2–12 2.6.1 Connecting the ASCII terminal 2–13 2.6.2 Connecting the Administrative Console 2–13 Powering On the Sun Fire 6800 System 2–14 Powering Off the Sun Fire 6800 System 2–16...
  • Page 5 4.4.2 Connecting the Administrative Console 4–5 Powering On the Sun Fire 4800 System 4–6 Powering Off the Sun Fire 4800 System 4–6 Installing Additional Hardware 4–6 Installing Peripheral Devices 4–7 cPCI Card Visibility Issues 4–7 Installing the Sun Fire 3800 System 5–1 Mounting a Sun Fire 3800 System 5–1 Connecting Power Cables to the Sun Fire 3800 System 5–2 Connecting the I/O Assemblies 5–2...
  • Page 6 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 7 FIGURE 2-3 Removing the Rear Brackets and Rear Wheel Stop and Positioning Ramps 2–4 FIGURE 2-4 Moving the Sun Fire 6800 System Off the Shipping Pallet 2–5 FIGURE 2-5 Bracketing the Sun Fire 6800 System to the floor 2–7 FIGURE 2-6 RTS AC Power Switch on the Sun Fire 6800 System 2–8...
  • Page 8 Power Switch and Power Cord Socket Locations on the Sun Fire 3800 System 5–3 FIGURE 5-1 System Controller and I/O Assembly Locations on the Sun Fire 3800 System 5–4 FIGURE 5-2 Serial Cable Connections 5–5 FIGURE 5-3 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 9 Modifications: Any modifications made to this device that are not approved by Sun Microsystems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
  • Page 10 ICES-003 Class B Notice - Avis NMB-003, Classe B This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. viii Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 11 BSMI Class A Notice The following statement is applicable to products shipped to Taiwan and marked as Class A on the product compliance label. T33012 GOST-R Certification Mark Regulatory Compliance Statements...
  • Page 12 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 13 Safety Agency Compliance Statements Read this section before beginning any procedure. The following text provides safety precautions to follow when installing a Sun Microsystems product. Safety Precautions For your protection, observe the following safety precautions when setting up your equipment: Follow all cautions and instructions marked on the equipment.
  • Page 14 Standby – The On/Standby switch is in the standby position. Modifications to Equipment Do not make mechanical or electrical modifications to the equipment. Sun Microsystems is not responsible for regulatory compliance of a modified Sun product. Placement of a Sun Product Caution –...
  • Page 15 SELV Compliance Safety status of I/O connections comply to SELV requirements. Power Cord Connection Caution – Sun products are designed to work with power systems having a grounded neutral (grounded return for DC-powered products). To reduce the risk of electric shock, do not plug Sun products into any other type of power system.
  • Page 16 The following caution applies to CD, DVD, and other optical devices. Caution – Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 17 Conformité aux normes de sécurité Veuillez lire attentivement cette section avant de commencer. Ce texte traite des mesures de sécurité qu’il convient de prendre pour l’installation d’un produit Sun Microsystems. Mesures de sécurité Pour votre sécurité, nous vous recommandons de suivre scrupuleusement les mesures de sécurité ci-dessous lorsque vous installez votre matériel:...
  • Page 18 Arret – Met le système hors tension alternative. Veilleuse – L'interrupteur Marche/Veille est sur la position de veille. Modification du matériel N'apportez aucune modification mécanique ou électrique au matériel. Sun Microsystems décline toute responsabilité quant à la non-conformité éventuelle d'un produit Sun modifié. Positionnement d’un produit Sun Attention –...
  • Page 19 Connexion du cordon d’alimentation Attention – Les produits Sun sont conçus pour fonctionner avec des systèmes d'alimentation équipés d'un conducteur neutre relié à la terre (conducteur neutre pour produits alimentés en CC). Pour réduire les risques de décharge électrique, ne branchez jamais les produits Sun sur une source d'alimentation d'un autre type.
  • Page 20 L'avertissement suivant s'applique aux périphériques CD, DVD et autres périphériques optiques: Attention – L'utilisation de contrôles et de réglages ou l'application de procédures autres que ceux spécifiés dans le présent document peuvent entraîner une exposition à des radiations dangereuses. xviii Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 21 Einhaltung sicherheitsbehördlicher Vorschriften Lesen Sie vor dem Ausführen von Arbeiten diesen Abschnitt. Im folgenden Text werden Sicherheitsvor-kehrungen beschrieben, die Sie bei der Installation eines Sun Microsystems-Produkts beachten müssen. Sicherheitsvorkehrungen Treffen Sie zu Ihrem eigenen Schutz bei der Installation des Geräts die folgenden Sicherheitsvorkehrungen: Beachten Sie alle auf den Geräten angebrachten Warnhinweise und Anweisungen.
  • Page 22 Aus– Unterbricht die Wechselstromzufuhr zum Gerät. Wartezustand – Der Ein-/Standby-Netz-schalter befindet sich in der Standby-Position. Modifikationen des Geräts Nehmen Sie keine elektrischen oder mechanischen Gerätemodifikationen vor. Sun Microsystems ist für die Einhaltung der Sicherheitsvorschriften von modifizierten Sun-Produkten nicht haftbar. Aufstellung von Sun-Geräten Achtung –...
  • Page 23 Anschluss des Netzkabels Achtung – Sun-Geräte sind für Stromversorgungssysteme mit einem geerdeten neutralen Leiter (geerdeter Rückleiter bei gleichstrombetriebenen Geräten) ausgelegt. Um die Gefahr von Stromschlägen zu vermeiden, schließen Sie das Gerät niemals an andere Stromversor-gungssysteme an. Wenden Sie sich an den zuständigen Gebäudeverwalter oder an einen qualifizierten Elektriker, wenn Sie nicht sicher wissen, an welche Art von Stromversor-gungssystem Ihr Gebäude angeschlossen ist.
  • Page 24 Die folgende Warnung gilt für CD-, DVD- und andere optische Geräte: Achtung – Die hier nicht aufgeführte Verwendung von Steuerelementen, Anpassungen oder Ausführung von Vorgängen kann eine gefährliche Strahlenbelastung verursachen. xxii Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 25 Normativas de seguridad Lea esta sección antes de realizar cualquier operación. En ella se explican las medidas de seguridad que debe tomar al instalar un producto de Sun Microsystems. Medidas de seguridad Para su protección, tome las medidas de seguridad siguientes durante la instalación del equipo: Siga todos los avisos e instrucciones indicados en el equipo.
  • Page 26 Espera – El interruptor de encendido/espera está en la posición de espera. Modificaciones en el equipo No realice modificaciones de tipo mecánico ni eléctrico en el equipo. Sun Microsystems no se hace responsable del cumplimiento de normativas en caso de que un producto Sun se haya modificado.
  • Page 27 La siguiente medida solamente se aplica a aquellos dispositivos que dispongan de un interruptor de alimentación de espera: Precaución – El interruptor de alimentación de este producto funciona solamente como un dispositivo de espera. El cable de alimentación hace las veces de dispositivo de desconexión principal del sistema.
  • Page 28 Los productos Sun que utilizan tecnología láser cumplen los requisitos establecidos para los productos láser de clase 1. Class 1 Laser Product Luokan 1 Laserlaite Klasse 1 Laser Apparat Laser Klasse 1 xxvi Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 29 Dispositivos de CD y DVD La siguiente medida se aplica a los dispositivos de CD y DVD, así como a otros dispositivos ópticos: Precaución – La utilización de controles, ajustes o procedimientos distintos a los aquí especificados puede dar lugar a niveles de radiación peligrosos. Nordic Lithium Battery Cautions Norge Advarsel –...
  • Page 30 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 31: Preface

    Preface The Sun Fire™ 6800/4810/4800/3800 Systems Installation Guide provides installation instructions for Sun Fire 6800, Sun Fire 4810, Sun Fire 4800, and Sun Fire 3800 systems. These instructions are for an experienced systems or field engineer with networking knowledge. Typographic Conventions...

  • Page 32: Related Documentation

    Sun is interested in improving its documentation and welcomes your comments and suggestions. You can email your comments to Sun at: http://www.sun.com/hwdocs/feedback Please include the title and part number (817-2353-12) of your document with your feedback. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 33: Contacting Sun Technical Support

    Contacting Sun Technical Support If you have technical questions about this product that are not answered in this document, go to: http://www.sun.com/service/contacting Cautions and Notes Caution – This equipment contains lethal voltage. Accidental contact with centerplane, card cage, and drive areas can result in serious injury or death. Caution –...
  • Page 34 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 35: Preparing For Installation

    C H A P T E R Preparing for Installation This chapter describes how to prepare your site for the Sun Fire 6800, Sun Fire 4810, Sun Fire 4800, and Sun Fire 3800 systems. Note – For information about physical specifications, electrical specifications, and environmental requirements, refer to the Sun Fire 6800/4810/4800/3800 Systems Site Planning Guide.

  • Page 36: Verifying The Air Conditioning

    Refer to the Sun Fire 4810/4800/3800 Systems Site 6800/ Planning Guide for exact cooling requirements. 1. Information Technology Equipment — UL 1950, copyright 1989, 1991 by Underwriters Laboratories, Inc. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 37: Verifying The Floor Area

    The Sun Fire 6800 system cabinet has openings at the top rear corners and at the bottom of the cabinet for cable routing. If the system is mounted in a Sun Fire cabinet then each RTS power cable must have a dedicated AC breaker panel.
  • Page 38 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 39: Installing The Sun Fire 6800 System

    C H A P T E R Installing the Sun Fire 6800 System This chapter contains procedures for moving the Sun Fire 6800 system, connecting the cables, powering the system and installing additional hardware. Tools—page 2-1 Unpacking the Sun Fire 6800 System—page 2-2...

  • Page 40: Unpacking The Sun Fire 6800 System

    2. Remove the plastic clips that keep the two main sections of the shipping carton together ( FIGURE 2-2 Plastic clips Plastic clips Unpacking the Sun Fire 6800 System—Step 2 FIGURE 2-2 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 41: Moving And Securing The Sun Fire 6800 System

    Do not cut the strap. a. Press the plastic tab to unlock the strap. b. Loosen the strap to remove the wrench. Moving and Securing the Sun Fire 6800 System 1. Remove the front wheel stop.

  • Page 42: Figure 2-4 Removing The Rear Brackets And Rear Wheel Stop And Positioning Ramps

    7. Use the leveling wrench to raise the leveling pads as high as they will go, so the system is free to move. 8. Secure the leveling wrench back in the system with the plastic strap, and close the front and rear doors. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 43: Figure 2-5 Moving The Sun Fire 6800 System Off The Shipping Pallet

    Caution – A Sun Fire 6800 system is very heavy. Three or more people are needed to move the system safely. Two people must control the movement of the system from the sides while the third pushes slowly from the front. To prevent the system from tipping over, push or pull only along the middle of the system.

  • Page 44: Adjusting The Leveling Pads

    Zone 4 earthquake bracket. 2. Repeat Step 1 for the remaining kick-panel brackets. Caution – Before you begin drilling examine site blueprints to ensure that no pipes or wires run beneath operating location. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 45: Shipping And Storing The System

    Save the original shipping container and packing materials in case you need to store or ship your system. If you cannot store the shipping materials, recycle or dispose of the materials properly. Consult your local recycling authority for information. Chapter 2 Installing the Sun Fire 6800 System...

  • Page 46: Connecting Power Cables To The Sun Fire 6800 System

    1. Turn off each redundant transfer switch (RTS) on both the front and rear of the system ( FIGURE 2-7 RTS AC Power Switch on the Sun Fire 6800 System FIGURE 2-7 2. Remove the power cables from the shipping carton.

  • Page 47: Figure 2-8 Two Independent Ac Power Sources

    RTS units is not supported and will adversely affect reliability. RTS 1 RTS 2 default alternate To power source A To power source A RTS 0 RTS 3 alternate default Rear Front One AC Power Source FIGURE 2-9 Chapter 2 Installing the Sun Fire 6800 System...

  • Page 48: Figure 2-10 Connecting Power Cables To The Rts Module

    Caution – Each outlet must be a 200–240 VAC, 30A circuit solely for use by that power cable. The electrical receptacles must be grounded, and the grounding conductors serving these receptacles must be connected to the earth ground at the service equipment. 2-10 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 49: Connecting The I/O Assemblies

    1. Connect one end of each I/O cable to the appropriate card in the I/O assembly FIGURE 2-11 2. Connect the other end to the hub, workstation or peripheral. 3. Attach the cables to the cabinet with plastic ties to keep them out of the way. Chapter 2 Installing the Sun Fire 6800 System 2-11...

  • Page 50: Connecting The Administrative Console

    (SSC0) through the patch panel. It is used to set up the system and control the system controller software. The administrative console can be any external input device (such as a laptop computer or a workstation) connected to the patch panel. 2-12 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 51: Connecting The Ascii Terminal

    (local hub, router, or switch). 3. Set up the chosen administrative console. Refer to the Sun Fire Midrange Systems Platform Administration Manual for instructions on setting up the administrative console. Chapter 2 Installing the Sun Fire 6800 System 2-13...

  • Page 52: Powering On The Sun Fire 6800 System

    FIGURE 2-13 Caution – Do not disconnect the AC power cable from the wall connection when you work on or in the Sun Fire 6800 system. This connection provides a ground path that prevents damage from electrostatic discharge (ESD). 2. Power on the wall circuit breakers.
  • Page 53 Sun Fire 6800 System Power Switch Locations FIGURE 2-13 5. Power on the AC input box power switches ( FIGURE 2-13 6. Turn the FrameManager key to the on position. The FrameManager key can be found in the shipping carton. If the FrameManager key cannot be located, the system key can be used.

  • Page 54: Powering Off The Sun Fire 6800 System

    Sun Fire system has been powered on and completed POST successfully. This makes it easier to diagnose conflicts that may be caused by additional installations. 2-16 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 55: Installing Peripheral Devices

    Unless otherwise specified in the Rackmount Placement Matrix, mount the heaviest subassemblies at the lowest available opening to minimize the effects of earthquakes. Refer to the installation guide for the peripheral device for additional instructions. Chapter 2 Installing the Sun Fire 6800 System 2-17...
  • Page 56 2-18 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 57: Installing The Sun Fire 4810 System

    C H A P T E R Installing the Sun Fire 4810 System This chapter contains information on installing a Sun Fire 4810 system. Mounting a Sun Fire 4810 System—page 2-1 Connecting the Power Cables—page 2-2 Connecting the I/O Assemblies—page 2-2 Connecting the Administrative Console—page 2-4 Powering On the Sun Fire 4810...

  • Page 58: Connecting Power Cables

    I/O assembly includes its own network interface card and peripherals. 1. Connect one end of the I/O cable to the appropriate card in the I/O assembly. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 59: Figure 3-1 Power Switch, Power Cord Socket And I/O Assembly Locations On The Sun Fire 4810

    2. Connect the other end to the hub, workstation or peripheral. 3. Repeat Step 1 and 2 for each I/O cable. I/O Assemblies Power Switch Power Switch, Power Cord Socket and I/O Assembly Locations on the Sun FIGURE 3-1 Fire 4810 System Chapter 3 Installing the Sun Fire 4810 System...

  • Page 60: Connecting The Administrative Console

    (such as a laptop computer or a workstation) connected to the primary (bottom) System Controller board. Primary System Controller Connections on the Sun Fire 4810 System FIGURE 3-2 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 61 3.4.1 Connecting the ASCII terminal The initial system setup requires an ASCII terminal connected to the TTYa serial port on the System Controller board using a null modem cable or through a network terminal server (NTS). TTYa TTYa Sun Fire Sun Fire Null modem cable System...

  • Page 62: Powering On The Sun Fire 4810 System

    Sun Fire system has been powered on and completed POST successfully. This makes it easier to diagnose conflicts that may be caused by additional installations. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 63: Installing Peripheral Devices

    During initial installation, shut power off to the system before removing or replacing system hardware. Refer to the installation guide for the additional hardware for additional instructions. Installing Peripheral Devices When you add additional storage devices, refer to the Rackmount Placement Matrix, at http://docs.sun.com for mounting hole numbers for mounting screws for Sun disk arrays and other storage trays and devices.
  • Page 64 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 65: Installing The Sun Fire 4800 System

    C H A P T E R Installing the Sun Fire 4800 System This chapter contains information on installing a Sun Fire 4800 system. Mounting a Sun Fire 4800 System—page 3-1 Connecting the Power Cables—page 3-2 Connecting the I/O Assemblies—page 3-2 Connecting the Administrative Console—page 3-4 Powering On the Sun Fire 4800...

  • Page 66: Connecting Power Cables To The Sun Fire 4800 System

    The I/O assemblies provide network interface and peripheral access for the domains FIGURE 4-1 Note – Domains cannot share I/O assemblies. If configuring a system with two domains make sure that each I/O assembly includes its own network interface card and peripherals. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 67: Figure 4-1 Power Switch, Power Cord Socket And I/O Assembly Locations On The Sun Fire 4800

    1. Connect one end of the I/O cable to the appropriate card in the I/O assembly. 2. Connect the other end to the hub, workstation or peripheral. 3. Repeat Step 1 and 2 for each I/O cable. I/O Assemblies Power Switch Power Switch, Power Cord Socket and I/O Assembly Locations on the Sun FIGURE 4-1 Fire 4800 System...

  • Page 68: Connecting The Administrative Console

    (such as a laptop computer or a workstation) connected to the primary (bottom) System Controller board. Primary System Controller Connections on the Sun Fire 4800 System FIGURE 4-2 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

  • Page 69: Connecting The Ascii Terminal

    4.4.1 Connecting the ASCII terminal The initial system setup requires an ASCII terminal connected to the TTYa serial port on the System Controller board using a null modem cable or through a network terminal server (NTS). TTYa TTYa Sun Fire Sun Fire Null modem cable System...
  • Page 70 Sun Fire system has been powered on and completed POST successfully. This makes it easier to diagnose conflicts that may be caused by additional installations. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 71 During initial installation, shut power off to the system before removing or replacing system hardware. Refer to the installation guide for the additional hardware for additional instructions. Installing Peripheral Devices When you add additional storage devices, refer to the Rackmount Placement Matrix, at http://docs.sun.com for mounting hole numbers for mounting screws for Sun disk arrays and other storage trays and devices.
  • Page 72 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 73 C H A P T E R Installing the Sun Fire 3800 System This chapter contains information on installing a Sun Fire 3800 system. Mounting a Sun Fire 3800 System—page 4-1 Connecting the Power Cables—page 4-2 Connecting the I/O Assemblies—page 4-2 Connecting the Administrative Console—page 4-4 Powering On the Sun Fire 3800 System...
  • Page 74 I/O assembly includes its own network interface card and peripherals. 1. Connect one end of the I/O cable to the appropriate card in the I/O assembly. 2. Connect the other end to the hub, workstation or peripheral. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 75 3. Repeat Step 1 and 2 for each I/O cable. Power Switch and Power Cord Socket Locations on the Sun Fire 3800 System FIGURE 5-1 Chapter 5 Installing the Sun Fire 3800 System...
  • Page 76 (such as a laptop computer or a workstation) connected to the primary (bottom) System Controller board. I/O Assemblies System Controller and I/O Assembly Locations on the Sun Fire 3800 System FIGURE 5-2 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 77 5.4.1 Connecting the ASCII terminal The initial system setup requires an ASCII terminal connected to the TTYa serial port on the System Controller board using a null modem cable or through a network terminal server (NTS). TTYa TTYa Sun Fire Sun Fire Null modem cable System...
  • Page 78 Sun Fire system has been powered on and completed POST successfully. This makes it easier to diagnose conflicts that may be caused by additional installations. Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...
  • Page 79 During initial installation, shut power off to the system before removing or replacing system hardware. Refer to the installation guide for the additional hardware for additional instructions. Installing Peripheral Devices When you add additional storage devices, refer to the Rackmount Placement Matrix, at http://docs.sun.com for mounting hole numbers for mounting screws for Sun disk arrays and other storage trays and devices.
  • Page 80 Sun Fire 6800/4810/4800/3800 Systems Installation Guide • April 2004...

This manual is also suitable for:

Sun fire 4810Sun fire 4800Sun fire 3800

Table of Contents
