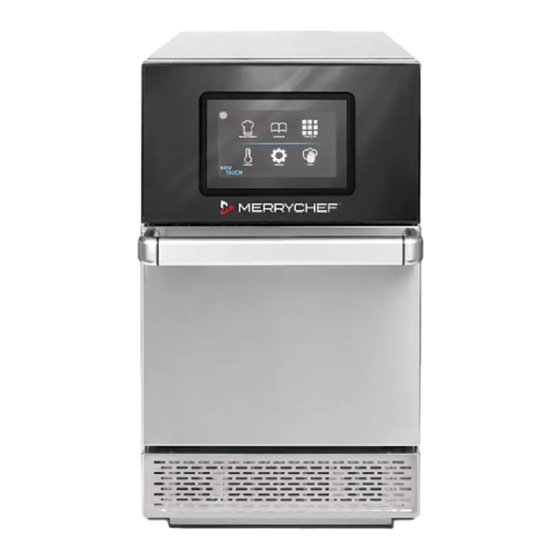

Welcome to your new Merrychef high speed oven. This guide has been created
to get you up and running with your new Merrychef conneX
quickly as possible.
Important: Before using your oven please ensure you fully read and follow the
safety instructions provided with the appliance.
A comprehensive installation and user manual
is available at www.merrychef.com
First time start up
Make all the relevant safety checks and ensure the appliance is clean and empty.
The first time the oven is connected to the electrical supply there will be a series of setup screens.
Press the power icon to turn the appliance on, you will be prompted to:
select the language you would like the oven to operate in,
set time and date,
connect to Wi-Fi or Ethernet (this can be done at a later stage in 'Settings'),
select a preheat temperature.
When the preheat cycle is complete the selected 'Operating Mode' screen will appear,
and you can start using your oven.
Start up
1.
2.
Part number: 32Z9230
Language: MULTILINGUAL
conneX Quick Start Guide_2022.indd 1
conneX Quick Start Guide_2022.indd 1
Ensure the appliance is plugged in. Make all the relevant safety
checks and ensure the cavity is clean and empty.
Select the power icon on screen, to switch ON the oven.
The 'easyTouch
' screen illuminates and scrolls through the Welbilt brands.
®
Once booted the Merrychef splash screen appears, giving shortcut options to
'Information' or 'Settings'.
If left idle the screen automatically progresses to Preheat/Preheat selection.
If only one preheat temperature has been set, the oven will automatically
start heating up to temperature.
ENGLISH
Quick Start Guide
high speed oven as
®
www.merrychef.com
26/01/2022 14:12
26/01/2022 14:12
Advertisement
Table of Contents
Related Manuals for Welbilt Merrychef conneX
Summary of Contents for Welbilt Merrychef conneX
- Page 1 ENGLISH Quick Start Guide Welcome to your new Merrychef high speed oven. This guide has been created to get you up and running with your new Merrychef conneX high speed oven as ® quickly as possible. Important: Before using your oven please ensure you fully read and follow the safety instructions provided with the appliance.
- Page 2 When the appliance is setup with two or more preheating temperatures a choice is displayed. A scroll bar at the side of the screen indicates that there are more temperature choices not shown on the screen. If necessary, swipe up or down to navigate the preheat selections available. Then select the temperature required to start preheating the cavity.
- Page 3 ENGLISH Changing the cavity temperature Recipes not created for the ovens current preheat temperature will be inactive and greyed out. To determine these recipes preheat temperature, select, press and hold the icon until the edit/delete option appears over the button, then select edit to investigate the recipes parameters.
- Page 4 Keyboard buttons and their functions Button Meaning Function Keyboard screen The keyboard screen is used to enter an authorised password to enter data for programmes and may restrict operator access to some functions. Clear screen Select the ‘clear screen’ key to delete all text from the keyboard screen.
