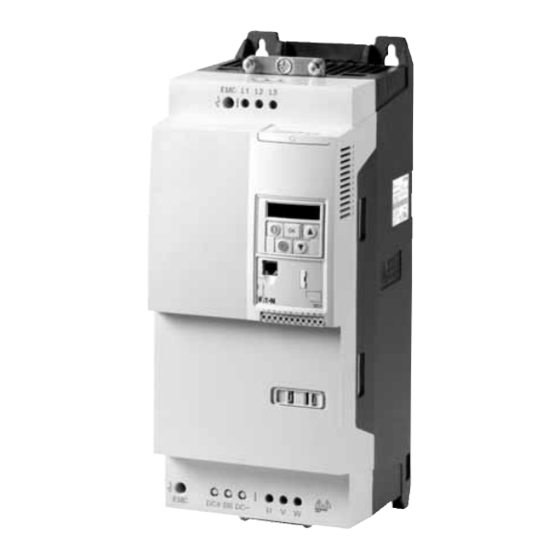

Handbuch
PowerXL
™
DC1...E1
Variable Frequency Drives
Parameter Manual
Para-
Bezeichnung
meter
P-01
f-max
P-02
f-min
...
Beschreibung
Sets the upper limit for the speed of the motor.
This can be set to any value between "f-min" and 5x the "motor nom frequency".
When "Motor Nom Frequency" (P-09) is changed, P-01 is set to the value of P-09.
"Motor Nom Speed" (P-10) = 0, the maximum speed limit will be displayed in Hz.
"Motor Nom Speed" (P-10) > 0, the maximum speed limit will be displayed in rpm.
Sets the lower limit for the speed of the motor
This can be set to any value between 0 and "f-max" (P-01). When "Motor Nom
Frequency" (P-09) is changed, P-01 is set to zero.
01/22 MN040022EN
WE
50.0 Hz
0.0 Hz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerXL DC1E1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton PowerXL DC1E1 Series

Summary of Contents for Eaton PowerXL DC1E1 Series

  • Page 1 Handbuch 01/22 MN040022EN PowerXL ™ DC1…E1 Variable Frequency Drives Parameter Manual Para- Bezeichnung Beschreibung meter P-01 f-max Sets the upper limit for the speed of the motor. 50.0 Hz This can be set to any value between “f-min” and 5x the “motor nom frequency”. When “Motor Nom Frequency”...
  • Page 2 1. Edition 2016, publication date 08/16 2. Edition 2016, publication date 11/16 3. Edition 2022, publication date 01/22 See revision protocol in the “About this manual“ chapter. © 2022 by Eaton Industries GmbH, 53105 Bonn Authors: Heribert Joachim, Marcel Goerentz Redaction: René...
  • Page 3 Danger! Dangerous electrical voltage! Before commencing the installation • Disconnect the power supply of the device. • Wherever faults in the automation system may cause damage to persons or property, external measures must • Ensure that devices cannot be accidentally retriggered. be implemented to ensure a safe operating state in the •...

  • Page 4: Table Of Contents

    P-12 = 9: PROFIdrive – Control and setpoint via fieldbus .... 25 3.2.11 P-12 = 10: PROFIdrive: Control via network, local setpoint ..26 3.2.12 P-12 = 11: PROFIdrive – Control via terminals, setpoint via fieldbus ..............27 DC1…E1 Variable Frequency Drives 01/22 MN040022EN www.eaton.com...
  • Page 5 Messages after a data transfer with a DX-COM-STICK… ... 33 Operating status indicators ............33 Parameters ................. 34 “Monitor” parameter group............34 “Basic” parameter group............. 37 “Extended” parameter group ............40 “Advanced” parameter group............47 DC1…E1 Variable Frequency Drives 01/22 MN040022EN www.eaton.com...

  • Page 6: About This Manual

    Configuration of the control signal terminals ✓ P-12 = 12 ✓ List of messages ✓ DX-COM-STICK2 replaced by DX-COM-STICK… ✓ Parameter P-69, P-70 ✓ 11/16 P-12 = 12: SWD Control + setpoint, auto 08/16 – First edition DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 7: Writing Conventions

    All the specifications in this manual refer to the hardware and software versions documented in it. ￫ More information on the devices described here can be found online at: www.eaton.eu/powerxl as well as: www.eaton.eu/documentation DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 8: General

    Change the password for the “Extended” parameter group by changing the value of parameter P-37 • “Advanced” parameter group (Level 3): Access the parameter group by entering the password for Level 2 (P-37 + 100). DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 9: Menu Structure

    ∙ ∙ ∙ ∙ ∙ Level 1 Password entry Level 2, "Extended" (password set with: P-37, default password = 101) Level 3, "Advanced" (password set with: P-37 + 100, default password = 201) DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 10: Keypad

    • Increases the parameter value DOWN • Decreases the speed • Decreases the parameter value Note: 1) Only if P-12 = 1 (one operating direction) or = 2 (two operating directions) 2) Only if P-12 = 2 DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 11: Setting Parameters

    → All parameters will be restored to their default settings. The keypad will show P-dEF Reset after a fault Press the STOP button to reset after a fault. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 12: Extended" Parameter Set

    P-01 to P-59. Additional parameters (up to to P-68) can be configured for specific applications. The password that needs to be entered in P-14 is equal to the value yielded by P-37 + 100. DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 13: Monitor" Submenu

    (or P00-01 to P00-50 in the case of level 3). Press the OK button to confirm. Exit the “Monitor” submenu Press the OK button (several times if necessary). → Only parameter P-00 will be available now. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 14: Control Via The Keypad

    Changes the value being displayed: A, rpm, etc. STOP Stops the variable frequency drive. Note: In this mode, a high-level signal must be applied at terminal 2 (DI1) as an enable signal for the DC1 variable frequency drive. DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 15: Control Signal Terminals

    The setting (digital/analog) for terminals 4 and 6 will be configured automati- cally based on the value set for P-15. ￫ See also the section “Control signal terminal connection infor- mation and functions” in the installation manual MN040023EN. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...
  • Page 16 Used to select between the analog speed reference value at analog input 1 (AI1 = terminal 6) and a fixed frequency. The fixed frequency itself can be selected with the Select f-Fix Bit0, Select f-Fix Bit1, Select f-Fix Bit2 commands. • Low = Analog setpoint value • High = fixed frequency DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...
  • Page 17 Used to select between a fixed frequency and the digital setpoint value, which is set with the keypad or with the UP and DOWN commands. • Low = Fixed frequency • High = Digital setpoint value DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...
  • Page 18 If START INV is used to start the drive, the drive will run in the opposite direction. Used to increase the speed if a digital setpoint is selected (P-12 = 1 or = 2). Used together with the DOWN command. DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 19: Configuration Of The Control Signal Terminals

    Select f-Fix4/AI1 REF Select Fire Mode/Normal OP AI1 REF Select f-Fix4/f-Fix2 Select Fire Mode/Normal OP Select f-Fix Bit0 Select Fire Mode/Normal OP Select f-Fix Bit1 The setpoint and the control commands are set via terminals. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 20: 1: Local - Control And Digital Setpoint Using The Keypad, One Operating Direction

    Select Fire Mode/Normal OP Select DIG REF/f-Fix4 Select Fire Mode/Normal OP The setpoint value is set using the keypad = digital setpoint value. The arrow buttons are used to adjust the setpoint value. DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 21: 2: Local - Control And Digital Setpoint Using The Keypad, Two Operating Directions

    The arrow buttons are used to adjust the setpoint value. P-12 = 2: If the motor is running, pressing the green button again will reverse the operating direction. The last operating direction will be stored when the unit is switched off. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 22: 3: Modbus - Internal Acceleration And Deceleration Ramps, Control Via Fieldbus

    No function No function No function Select f-Fix/BUS REF Select Fire Mode/Normal OP Select f-Fix4/f-Fix2 Select f-Fix4/BUS REF Select Fire Mode/Normal OP No function Select DIG REF/f-Fix4 Select Fire Mode/Normal OP No function DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 23: 4: Modbus - Control, Setpoint And Ramps Via Fieldbus

    No function No function No function Select f-Fix/BUS REF Select Fire Mode/Normal OP Select f-Fix4/f-Fix2 Select f-Fix4/BUS REF Select Fire Mode/Normal OP No function Select DIG REF/f-Fix4 Select Fire Mode/Normal OP No function DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 24: 5: Local - Pid Controller

    Select f-Fix4/f-Fix2 Select Fire Mode/Normal OP No function Select f-Fix2/f-Fix4 Select Fire Mode/Normal OP No function 1) If P-15 = 16 or 17, the fixed frequencies will only be enabled in fire mode. DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 25: 6: Local - Pid Controller With Summation Of Ai1

    Select f-Fix4/f-Fix2 Select Fire Mode/Normal OP No function Select f-Fix2/f-Fix4 Select Fire Mode/Normal OP No function 1) If P-15 = 16 or 17, the fixed frequencies will only be enabled in fire mode. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 26: 7: Canopen - Internal Acceleration And Deceleration Ramps, Control Via Fieldbus

    No function No function No function Select f-Fix/BUS REF Select Fire Mode/Normal OP Select f-Fix4/f-Fix2 Select f-Fix4/BUS REF Select Fire Mode/Normal OP No function Select BUS REF/f-Fix4 Select Fire Mode/Normal OP No function DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 27: 8: Canopen - Control, Setpoint And Ramps Via Fieldbus

    No function No function No function Select f-Fix/BUS REF Select Fire Mode/Normal OP Select f-Fix4/f-Fix2 Select f-Fix4/BUS REF Select Fire Mode/Normal OP No function Select BUS REF/f-Fix4 Select Fire Mode/Normal OP No function DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 28: 9: Profidrive - Control And Setpoint Via Fieldbus

    1) If P-15 = 15 and fire mode is active, the drive will run with fixed frequency 4 (f-Fix4), which is set with P-13. 2) If P-15 = 16, the setpoint value selection will be independent from fire mode. DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 29: 10: Profidrive: Control Via Network, Local Setpoint

    1) If P-15 = 15 and fire mode is active, the drive will run with fixed frequency 4 (f-Fix4), which is set with P-13. 2) If P-15 = 16, the setpoint value selection will be independent from fire mode. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 30: 11: Profidrive - Control Via Terminals, Setpoint Via Fieldbus

    1) If P-15 = 15 and fire mode is active, the drive will run with fixed frequency 4 (f-Fix4), which is set with P-13. 2) If P-15 = 16, the setpoint value selection will be independent from fire mode. DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 31: 12: Profidrive: Control And Setpoint Via Fieldbus, Automatic Switchover To Local Control (P-12 = 0) In The Event Of Communication Loss

    1) If P-15 = 15 and fire mode is active, the drive will run with fixed frequency 4 (f-Fix4), which is set with P-13. 2) If P-15 = 16, the setpoint value selection will be independent from fire mode. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 32: 13: Dual Mode - Control And Setpoint Via Profidrive Telegram - Enable Via Di1

    1) If P-15 = 15 and fire mode is active, the drive will run with fixed frequency 4 (f-Fix4), which is set with P-13. 2) If P-15 = 16, the setpoint value selection will be independent from fire mode. DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 33: Messages

    • If the fault message still appears, the device needs to be replaced. Before commissioning the new device, check the system for short-circuits or ground faults that could have caused the device to fail. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...
  • Page 34 The parameters have not been saved and the default settings have been loaded. Change the parameter values (again) and save them once more. If the message appears again, please contact your nearest Eaton sales branch. The analog input's input current does not fall within the specified range.
  • Page 35 Internal memory error (DSP) dAtA-E • Press the Stop button. • If the fault persists, please contact your nearest Eaton sales branch. Motor PTC thermistor input select fault – Overtheating of the connected motor thermistor F-Ptc • Check the cable connections and the motor.

  • Page 36: Messages After A Data Transfer With A Dx-Com-Stick

    1, 2, 3, 4, 5, 6 Flash synchronously Overload The current currently exceeds the value set with P-08. 1, 6 Flash in an alternating Power outage or power supply switched off pattern flashes Fire Mode enabled DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 37: Parameters

    Displayed in hours, minutes and seconds. Pressing UP key ▲ on the drive keypad will change the display from “hours” to “minutes and seconds”. P00-13 Last Fault PDP 65000 h Last 4 faults occured. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...
  • Page 38 I/O Controller / Application SW Version P00-29 Drive Type – – Drive Type Drive rating – – Drive rating Firmware version – – Firmware version Scope capture data available – – Scope capture data available DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...
  • Page 39 FaulCounter Fire detected Counts, how often “Fire detected” occurred P00-48 Scope Channel 1 P00-48 Scope Channel 2 P00-49 Scope Channel 3 P00-49 Scope Channel 4 P00-50 System Software Version – – System Software Version DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 40: Basic" Parameter Group

    0 / 20 V Defines the Motor rated voltage. When the output frequency is greater than the ”Motor Nom Frequency” (P-09), the output voltage is controlled at the level set with “Motor Nom Voltage” (P-07). DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...
  • Page 41 Excessive voltage boost levels may result in increased FS2: FS4: 10.0 % U motor current and temperature, and forced ventilation may 2.5 % U be required. FS3: 2.0 % U FS4: 1.5 % U DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...
  • Page 42 The value to be put in is determined by P-37 (default: 101). Access to Level 2 (extended ￫ P-01 to P-59 and P00-01 to P00-30): P-37 Access to Level 3 (advanced ￫ P-01 to P-68 and P00-01 to P00-50): P-37 + 100 DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...

  • Page 43: Extended" Parameter Group

    P-02 P-01 Preset Fixed Frequency 2 0.0 Hz Value can be adjusted between f-min and f-max. Selection via a digital control signal. If P-09 is changed, the value is reset to default. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...
  • Page 44 Defines the adjustment voltage at the frequency set in P-29. P-29 f-MidV/f 0 Hz P-09 Frequency to shape V/f curve 0 Hz Sets the frequency at which the adjustment voltage defined with P-28 is applied to the motor. DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...
  • Page 45 2: Spin start enabled on trip, brown our coast to stop (P-05 = 1) Hint: The setting of P-33 will be adopted at a change of P-13 (P-33 = 0 when P-13 = 0 or 1, P-33 = 2 when P-13 = 2). DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...
  • Page 46 If a remote keypad is connected, parameters cannot be accessed by the remote keypad if they are locked. P-39 AI1 Offset -500.0 % 500.0 % Offset Analog Input 1 0.0 % Resolution 0.1 % DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...
  • Page 47 (inverter output disabled) when running at min speed (f-min) 0: Standby mode disabled non-zero: enter standby mode after the time specified in this parameter. Operation automatically resumes as soon as the speed set point increases above P-02. DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...
  • Page 48 Mdobus Parity Type Modbus Parity Type 0: No parity, 1 stop bit (N-1) 1: No parity, 2 stop bits (N-2) 2: Odd parity, 1 stop bit (O-1) 3: Even parity, 1 stop bit (E-1) DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...
  • Page 49 If set to 0, then cyber security settings will not change. 10 s Otherwise, the cyber securtiy option in P-57 will be reset to 0 after time delay definied by P-58 P-59 Reserved Parameter – – Reserved Parameter – DC1...E1 variable frequency drive 01/22 MN040022EN Eaton.com...

  • Page 50: Advanced" Parameter Group

    2: Terminal 2 or Switch Forward or Switch Reverse 3: Terminal 2 and Switch Forward or Reverse 4: Terminal 2 and Switch Forward P-70 LocalControl Logic2 0: Terminal 3 or Switch Reverse 1: Terminal 3 2: Terminal 3 and Switch Reverse DC1...E1 variable frequency drive 01/22 MN040022EN www.eaton.com...
  • Page 51 Eaton is dedicated to ensuring that reliable, efficient and safe power supply is available when it’s needed most. With unparalleled knowledge of electrical power management across industries, experts at Eaton deliver customized, integrated solutions to solve our customers’ most critical challenges.
