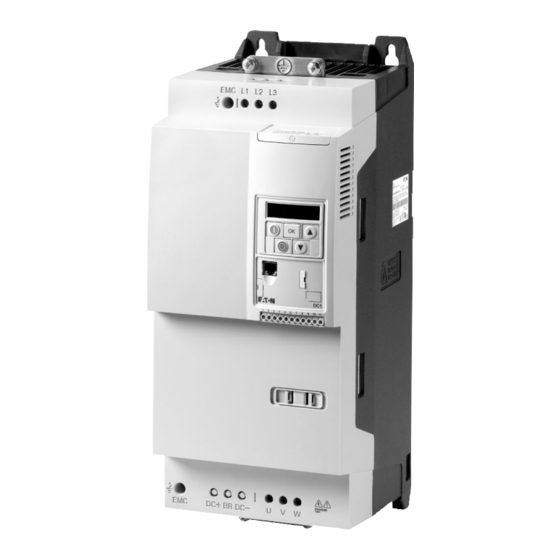

Eaton PowerXL DC1 Manual

Variable frequency drives
Hide thumbs Also See for PowerXL DC1:
Table of Contents

Advertisement

Quick Links

Download this manual
Manual
PowerXL
™
DC1
Variable Frequency Drives
Parameter Manual
Para-
Designation
meter
P00-01
Analog Input1
P00-02
Analog Input 2
P00-03
Frequency Reference
...
Value
Description
0 - 1000
Analog input 1
Level of the signal applied to analog input 1 after
scaling and offsets have been applied.
0 - 1000
Analog input 2
Level of the signal applied to analog input 2 after
scaling and offsets have been applied.
-P-01 - +P-01
Frequency Reference in Hz.
Will be calculated into rpm when motor data are
available. Value of the drive internal digital reference
11/16 MN04020004Z-EN
DS
0
0
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerXL DC1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton PowerXL DC1

Summary of Contents for Eaton PowerXL DC1

  • Page 1 Manual 11/16 MN04020004Z-EN PowerXL ™ Variable Frequency Drives Parameter Manual Para- Designation Value Description meter P00-01 Analog Input1 0 - 1000 Analog input 1 Level of the signal applied to analog input 1 after scaling and offsets have been applied. P00-02 Analog Input 2 0 - 1000...
  • Page 2 All editions of this document other than those in German language are translations of the original operating manual. 1. Edition 2016, publication date 01/16 2. Edition 2016, publication date 11/16 © 2016 by Eaton Industries GmbH, 53105 Bonn Authors: Heribert Joachim, Jörg Randermann Redaction: René...
  • Page 3 Danger! Dangerous electrical voltage! Before commencing the installation • Disconnect the power supply of the device. • Wherever faults in the automation system may cause injury or material damage, external measures must be • Ensure that devices cannot be accidentally restarted. implemented to ensure a safe operating state in the event •...

  • Page 5: Table Of Contents

    P-12 = 9: SWD control + setpoint value ........25 3.2.11 P-12 = 10: SWD control ............... 26 3.2.12 P-12 = 11: SWD setpoint value............ 27 3.2.13 P-12 = 13: SWD control + setpoint value, DI ENA....... 28 DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 6 Messages ..................29 List of messages................29 Messages after a data transfer with a DX-COM-STICK ....31 Parameter ................... 32 “Monitor” parameter group............32 “Basic” parameter group............. 34 “Extended” parameter group ............37 DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 7: About This Manual

    Deleted date 11/16 P-12 = 12: SWD control + setpoint value, auto ✓ 01/16 – Initial issue This manual (MN04020004Z – “Parameter Configuration Manual”) was part of manual MN04020003Z up to version 12/2013. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 8: Writing Conventions

    All the specifications in this manual refer to the hardware and software versions documented in it. ￫ More information on the devices described here can be found on the Internet under: www.eaton.eu/powerxl as well as: www.eaton.eu/documentation DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 9: General

    Level 2 (“Extended”) can be accessed by using parameter P-14 to enter the correct password. The default password is: • Access to level 2: 101 Users can change this password as required: • Password for Level 2 with: P-37 DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 10: Menu Structure

    1.2 Menu structure P00- ∙ ∙ ∙ ▲▼ ▲▼ ▲▼ ∙ ∙ ∙ ∙ ∙ ∙ ∙ ∙ ∙ Level 1 Password entry Level 2 (password set with: P-37; default password = 101) DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 11: Control Unit

    • Increases the parameter value DOWN • Decreases the speed • Decreases the parameter value Note: 1) Only if P-12 = 1 (one operating direction) or = 2 (two operating directions) 2) Only if P-12 = 2 DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 12: Setting Parameters

    → All parameters will be restored to their default settings. The keypad will display P-dEF Resetting after a fault Press the STOP button to reset the unit after a fault DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 13: Extended Parameter Set

    Use the ▲ and ▼ buttons to set a value for P-14 that does not match the password (P-37). Press the OK button to confirm → Only the “basic parameters”, i.e., parameters P-01 to P-14, will be accessible now. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 14: Monitor" Submenu

    Use the ▲ and ▼ buttons to select parameters P00-01 to P00-20. Press the OK button to confirm. Exiting the "Monitor" submenu Press the OK button (several times if necessary). → Only parameter P-00 will be available now. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 15: Control Via Keypad

    Changes the value being displayed: A, rpm, etc. STOP Stops the variable frequency drive Note: In this mode, a high-level signal must be applied at terminal 2 (DI1) as an enable signal for the DC1 variable frequency drive. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 16: Control Signal Terminals

    More specifically, you can select predefined terminal configurations by setting P-15 to a value between 0 and 13. The setting (digital/analog) for terminals 4 and 6 will be configured automatically based on the value set for P-15. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 17 In applications with two operating directions, the forward direction is selected with FWD. FWD and REV are XOR'd. If both signals are applied simultaneously, the drive will ramp down to zero with the quick stop ramp (P-24). DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 18 The fixed frequency itself is selected with the Select f-Fix Bit0 or Select f-Fix Bit1 commands. Select PI REF/AI1 REF Used to select between setpoint values • Low = setpoint from the PI controller's output • High = AI1 DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 19 If START INV is used to start the drive, the drive will run in the opposite direction. Used to increase the speed if a digital setpoint is selected (P-12 = 1 or = 2). Used together with the DOWN command. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 20: Configuration Of The Control Signal Terminals

    Pulse FWD (NO) Pulse STOP (NC) Pulse REV (NO) AI1 REF Select t-dec/t-QuickDec Select AI1 REF/f-Fix1 AI1 REF Select f-Fix Bit0 EXTFLT Select f-Fix Bit1 The setpoint and the control commands are set/issued via terminals. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 21: 1: Digital Setpoint Value, 1 Operating Direction

    Not permissible Not permissible Not permissible No function EXTFLT No function The setpoint value is set using the keypad = digital setpoint value. The arrow buttons are used to adjust the setpoint value. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 22: 2: Digital Setpoint Value, 2 Operating Directions

    The arrow buttons are used to adjust the setpoint value. P-12 = 2: If the motor is running, pressing the green button again will reverse the operating direction. The last operating direction will be stored when the unit is switched off. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 23: 3: Control Via Modbus With Internal Acceleration And Deceleration Ramps

    Not permissible START Select BUS REF/AI1 REF EXTFLT AI1 REF START Select BUS REF/DIG REF EXTFLT No function Not permissible Not permissible Not permissible Not permissible Not permissible START No function EXTFLT No function DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 24: 4: Control Via Modbus, Ramps Via Modbus

    Not permissible START Select BUS REF/AI1 REF EXTFLT AI1 REF START Select BUS REF/DIG REF EXTFLT No function Not permissible Not permissible Not permissible Not permissible Not permissible START No function EXTFLT No function DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 25: 5: Pi Controller

    Select PI REF/AI1 REF PI feedback AI1 REF Not permissible Select PI REF/f-Fix1 EXTFLT PI feedback Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 26: 6: Pi Controller With Ai1 Totaling

    Select PI REF/AI1 REF PI feedback AI1 REF Not permissible Select PI REF/f-Fix1 EXTFLT PI feedback Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 27: 7: Control Via Can With Internal Acceleration And Deceleration Ramps

    Not permissible START Select BUS REF/AI1 REF EXTFLT AI1 REF START Select BUS REF/DIG REF EXTFLT No function Not permissible Not permissible Not permissible Not permissible Not permissible START No function EXTFLT No function DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 28: 8: Control Via Can, Ramps Via Modbus

    Not permissible START Select BUS REF/AI1 REF EXTFLT AI1 REF START Select BUS REF/DIG REF EXTFLT No function Not permissible Not permissible Not permissible Not permissible Not permissible START No function EXTFLT No function DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 29: 9: Swd Control + Setpoint Value

    No function No function Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible No function EXTFLT No function DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 30: 10: Swd Control

    AI2 REF AI1 REF Not permissible No function EXTFLT AI1 REF Not permissible START Select f-Fix Bit0 Select f-Fix Bit1 Not permissible Not permissible Not permissible Not permissible START No function EXTFLT No function DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 31: 11: Swd Setpoint Value

    No function No function Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible No function EXTFLT No function DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 32: 13: Swd Control + Setpoint Value, Di Ena

    No function No function Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible Not permissible No function EXTFLT No function DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 33: Messages

    If the error occurs during deceleration or stopping: • Make the deceleration ramp (P-04/P-24) longer or use the brake resistor and activate the braking chopper with P-34 (only on devices with frame size FS2, FS3, or FS4). DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 34 The parameters have not been saved and the default settings have been loaded. Change the parameter values (again) and save them once more. If the message appears again, please contact your nearest Eaton sales branch. The analog input's input current does not fall within the specified range.

  • Page 35: Messages After A Data Transfer With A Dx-Com-Stick

    The parameter set stored in the DX-COM-STICK does not match the variable frequency drive. tyPE-E Only transfers from the variable frequency drive to the DX-COM-STICK are possible. The DX-COM-STICK is not compatible with the variable frequency drive. tyPE-F DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 36: Parameter

    OFF in hours, minutes and seconds. Pressing the UP key on the drive keypad will change the display from “hours” to “minutes and seconds”. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 37 1 - … Framesize NoOfInputPhases Number of input phases kW/HP Instance Motor Power Power@Ue 370 - 15000 Device Power at Device Voltage Rating Device voltage 230 - 460 Rated voltage DeviceType – Device Type DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 38: Basic" Parameter Group

    This results in reduced voltage being applied to the motor on light load, significantly reduce energy consumption. 0: OFF 1: ON Hint: This mode of operation is less suitable for dynamic applications where the load conditions can suddenly increase significantly. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 39 FS1: 20 % U low speed and starting torque. FS2: 15 % U Excessive voltage boost levels may result in FS3: 10 % U increased motor current and temperature, and forced ventilation may be required. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 40 P-14 Password 0 - 9999 Entry of the password to get access to the extended parameter set. The value to be put in is determined by P-37 (default: 101). Extended parameters are accessible. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...

  • Page 41: Extended" Parameter Group

    • 0: 4 kHz • 1: 8 kHz • 2: 12 kHz • 3: 16 kHz • 4: 24 kHz • 5: 32 kHz DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 42 Defines the frequency range around f-Skip1 in which the drive doesn‘t work in steady-state to avoid mechanical resonances in the application. During acceleration and deceleration this range is passed through by using the ramps set with P-03 and P-04. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 43 • 2: Start at min speed (Auto-r) • 3: Start with latest speed before switching off (Auto-r) • Auto r: START and STOP button on the keypad are disabled. DC1 starts with a START command at the terminals. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 44 Output value = Input value x Scaling Example: P-16 = 0 - 10 V, P-35 = 200 %: at 5 V the motor turns with max speed (P-01) (5 V x 200 % = 10 V) DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 45 P-42 PID1 Ti 0.0 - 30.0 s PI(D) controller integral time constant 1.0 s Higher values will result in a more damped response. Used in systems in which the overall process responds slowly. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 46 PID controller will wake from Standby mode. P-50 CAN0 Baudrate 0 - 3 CANopen Baudrate Possible values: • 0: 125 kbit/s • 1: 250 kBit/s • 2: 500 kbit/s • 3: 1000 kbit/s DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
  • Page 47 P-18 = 6 or 7: output will be logic 0 if the value ≧ limit, output will be logic 1 if value < level P-55 RO1 Switch-On Delay 0.0 - 250.0 s Delay time before the Relay switches from logic 0 to 0.0 s logic 1. DC1 Variable Frequency Drives 11/16 MN04020004Z-EN www.eaton.com...
