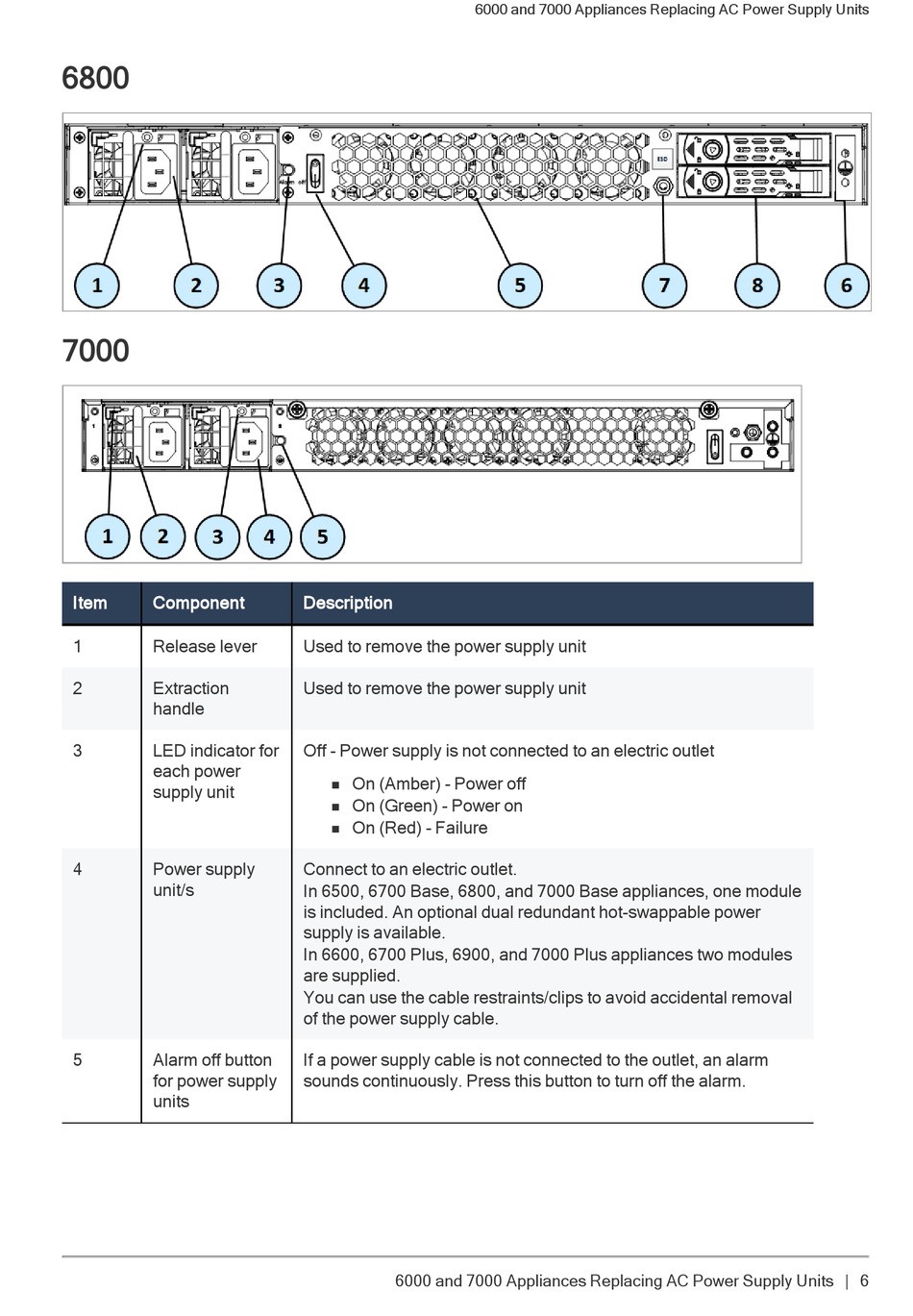

Check Point Quantum 6000 Replacing page 6

6800
7000
Item Component
1 Release lever
2 Extraction
handle
3 LED indicator for
each power
supply unit
4 Power supply
unit/s
5 Alarm off button
for power supply
units
6000 and 7000 Appliances Replacing AC Power Supply Units
Description
Used to remove the power supply unit
Used to remove the power supply unit
Off - Power supply is not connected to an electric outlet
On (Amber) - Power off
n
On (Green) - Power on
n
On (Red) - Failure
n
Connect to an electric outlet.
In 6500, 6700 Base, 6800, and 7000 Base appliances, one module
is included. An optional dual redundant hot-swappable power
supply is available.
In 6600, 6700 Plus, 6900, and 7000 Plus appliances two modules
are supplied.
You can use the cable restraints/clips to avoid accidental removal
of the power supply cable.
If a power supply cable is not connected to the outlet, an alarm
sounds continuously. Press this button to turn off the alarm.
6000 and 7000 Appliances Replacing AC Power Supply Units | 6
