Models Available; Accessories; Product Dimensions - GE Monogram ZVB36 Installation Instructions Manual

These downdraft vents systems can be
Models
retracted when not in use.
Available
ZVB36
36" Wide Downdraft Vent
in white, black and stainless steel
• JXRB57 optional accessory for indoor

Accessories

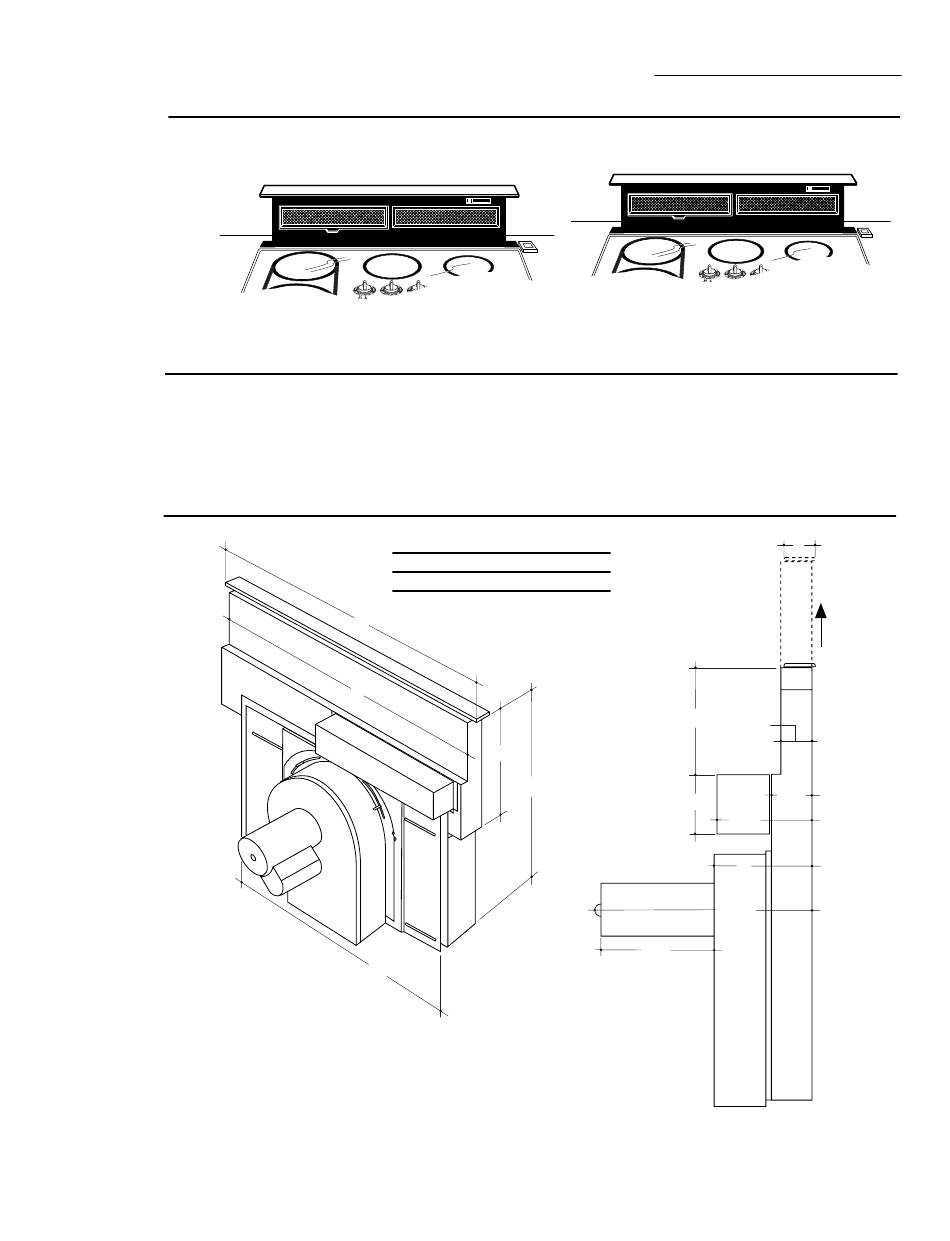

Product
Dimensions
remote location of the blower/motor
assembly. Use this kit when the blower and
motor assembly will be located outside or
below the cabinet floor.
30" Models
36" Models
A
B
26"
Design Information
Downdraf t Vent Systems
ZVB30
30" Wide Downdraft Vent
in white, black and stainless steel
• JXBC57 optional outdoor cover accessory
for remote installation of blower and motor
assembly on an outside wall.
A B
30" 28-3/8"
36" 33-3/4"
14-3/4"
27"
5-3/8"
2"
8-1/2" Lift
7-1/2"
2-1/4"
3-1/4"
3-1/4"
6-3/8"
7"
12-3/8"
3
