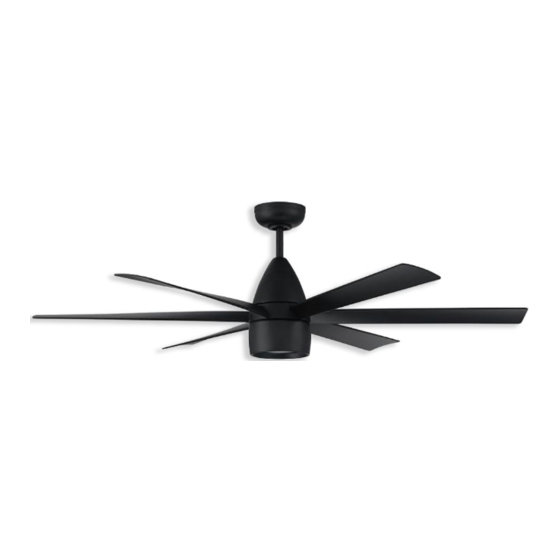

Craftmade Quirk QRK54 Installation Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Quirk

Installation Guide

For Model:

QRK54

WARNING:

DC Motor will not

operate until blades

are installed

For

Damp Location

E192641

net weight of fan: 14.11 lb (6.4 kg)

READ THESE INSTRUCTIONS AND

Need help?

Do you have a question about the Quirk QRK54 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Quirk QRK54

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Quirk Installation Guide For Model: Table of Contents: QRK54 Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 WARNING: Fan Assembly.
Page 2: Safety Tips
(2) this LED light kit must accept any interference received, including interference that may cause undesired operation. Distributed by: Craftmade, 650 S. Royal Lane, Coppell, TX, 75019; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches that the hanging location allows the blades a 7 feet (76cm) clearance of 7 feet (2.13m) from the floor and (2.13m) 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 12ft - 20ft (3.66m - 6.1m)
Page 5: Fan Assembly. Pgs
stop pin 5. Fan Assembly. set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging ball and remove stop pin and then slide hanging hanging ball ball off of the downrod. [Refer to diagram 1.] Loosen yoke set screws and nuts at top of motor diagram 1 housing.
Page 6: Wiring
5. Fan Assembly. (cont.) wood ceiling safety cable joist loop With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging wood screw ball rest on the hanging bracket.
Page 7: Canopy Assembly
7. Canopy Assembly. Locate 2 screws on underside of hanging antenna bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging hanging bracket. Place rounded part of slotted hole in bracket canopy over loosened screw in hanging bracket and push up.
Page 8: Light Kit Assembly
9. Light Kit Assembly. motor Remove 1 screw from motor plate on underside housing of motor housing and partially loosen the other 2 screws. Align slotted holes in fitter plate with loosened screws in motor plate, allowing molex connections from motor housing to come motor plate through hole in middle of fitter plate--remove and discard plastic that holds these 2 wires...
Page 9: Automated Learning Process./Activating Code
10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is REMOTE CONTROL not desired, turn wall switch off to any other (back side) programmable receiver or fan. Remove battery cover on back side of remote control transmitter.
Page 10: Remote Control Operation
11. Remote Control Operation REMOTE CONTROL I I I Fan SPEED buttons--1: Use to control ceiling fan speeds 1-6 Fan OFF button--2: Use to turn the fan off REVERSE function button--3: Use to control fan direction LIGHTING button--4: Use to control down-light and up-light (if applicable) IMPORTANT: The Automated Learning Process takes approximately 5 minutes to complete.
Page 11: Smart Wifi Remote Control (Optional)
12. Smart Ceiling Fan WiFi Remote Control (Optional). To enjoy all the potential of your new device, you will need to download the Craftmade Smart app, available on the Google Play Store and Apple App Store, or use the QR code to download the app.
Page 12: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. 2. Check to be sure fan is wired properly. Return fan, shipping prepaid, to Craftmade. We will repair 3. Learning process between fan and remote or ship you a replacement fan, and we will pay the return control may not have been successful and code shipping cost.
