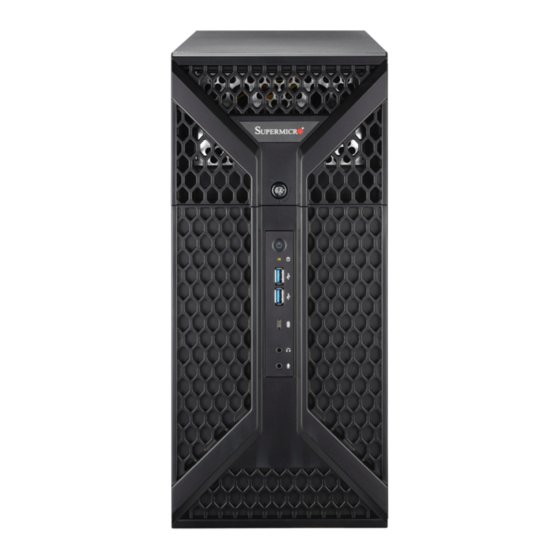

SC735D4 Chassis
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC735D4 and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro SC735D4

Summary of Contents for Supermicro SC735D4

  • Page 1 SC735D4 Chassis USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 About this Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC735D4 chassis. Installation and maintenance should be performed by experienced technicians only. This document lists compatible parts available when this document was published. Refer to...

  • Page 4: Table Of Contents

    Supermicro SC735D4 Chassis User's Manual Contents Chapter 1 Introduction 1.1 Overview ..........................7 Key Features ........................7 1.2 Components .........................8 Drives ..........................8 Fans and Cooling ........................8 Motherboard ........................8 Expansion Slots ........................8 External I/O Connections ....................8 Control Panel ........................8 1.3 Chassis Features .........................9 Chassis Front ........................9...
  • Page 5 Contents 2.8 Installing the Rear Input/Output Shield and Motherboard ..........29 I/O Shield .........................29 Motherboard ........................30 Appendix A Standardized Warning Statements for AC Systems Appendix B System Specifications...
  • Page 6 Supermicro SC735D4 Chassis User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 7: Chapter 1 Introduction

    Chapter 1: Introduction Chapter 1 Introduction 1.1 Overview Supermicro’s SC735D4 family of mid-tower features whisper-quiet operation for workstation environments. The chassis is equipped with a 90º rotatable drive cage and a high-efficiency power supply. CSE-735D4-1K26B 1200W power CSE-735D4-668B 668W power Key Features •...

  • Page 8: Components

    Supermicro SC735D4 Chassis User's Manual 1.2 Components The primary components are described below. Drives The standard configuration includes four 3.5" fixed drive bays* in a 90º rotatable drive cage. Four 2.5" drives can be used instead by means of optional adapters (MCP-220-73102-0N).

  • Page 9: Chassis Features

    Chapter 1: Introduction 1.3 Chassis Features Chassis Front The illustration below shows the features included on the front of the chassis. 5.25" Drive Bays Lock Control Panel Figure 1-2. Front View Front Features Features Description Lock Front Bezel Lock 5.25" Drive Bays For optional DVD-ROM drives or mobile rack module Control Panel Front control panel with Input/output ports, status indicators and a power button...

  • Page 10: Control Panel

    Supermicro SC735D4 Chassis User's Manual Control Panel Power and LED buttons are located on the control panel on the front of the chassis along with several USB ports. An LED bar runs along the front of the chassis. Power HDD LED...

  • Page 11: Chassis Rear

    Chapter 1: Introduction Chassis Rear The illustration below shows the features included on the rear of the chassis. Power Supply Rear I/O Ports Expansion Slots Figure 1-3. Rear View Rear Features Features Description Power Supply One multi-output 80Plus Platinum power supply Rear Exhaust Fan One 12-cm fan Rear I/O Panel...

  • Page 12: Where To Get Replacement Components

    (http://www.supermicro.com/ support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

  • Page 13: Chapter 2 Setup And Maintenance

    Chapter 2: Setup and Maintenance Chapter 2 Setup and Maintenance 2.1 Overview This chapter covers the steps required to install components and perform maintenance on the chassis. Most tasks can be accomplished without tools. Review the warnings and precautions listed in the manual before setting up or servicing this chassis, including those in the system safety appendix.

  • Page 14: Accessing The Chassis

    Supermicro SC735D4 Chassis User's Manual 2.3 Accessing the Chassis Caution: Except for short periods of time, do not operate the system without the cover in place. The chassis covers must be in place to allow proper airflow and prevent overheating.

  • Page 15: Front Bezel

    Chapter 2: Setup and Maintenance Front Bezel The front bezel door can be opened to install the optional 5.25" drives or mobile racks for additional storage drives. Also, the entire bezel can be removed. • To open the bezel door, unlock the lock and pull it open. Lock Figure 2-2.
  • Page 16 Supermicro SC735D4 Chassis User's Manual Removing the Bezel 1. Remove the side covers. 2. Find and remove the two rubber clasps from each side, as shown below. 3. Pull off the bezel. Rubber Clasp Figure 2-3. Removing the Front Bezel...

  • Page 17: Storage Drives

    Chapter 2: Setup and Maintenance 2.4 Storage Drives The chassis supports four internal SATA drives installed in a rotating cage. It also supports additional drives accessed at the top front of the chassis, and addition internal drives below the rotating drive cage. Drive Cage The drive cage rotates to access the drives.

  • Page 18: Removing And Installing Main Storage Drives

    Supermicro SC735D4 Chassis User's Manual Removing and Installing Main Storage Drives The rotating cage can house up to four drives of either 3.5" or 2.5" (2.5" drives require an optional bracket: MCP-220-73102-0N). Figure 2-5. Installing Drives Removing and Installing Main Storage Drives 1.
  • Page 19 Chapter 2: Setup and Maintenance Release Tab Figure 2-6. Drive Carrier 3. Press the release tab on the side of the hard drive carrier to release it from the cage. 4. Slide the hard drive carrier out of the cage. 5.

  • Page 20: Top Front Peripheral Drive Bays

    Supermicro SC735D4 Chassis User's Manual Top Front Peripheral Drive Bays Drives can be added at the top front of the chassis. It supports two 5.25" drives or a mobile rack (M14 or M28) containing hot-swap 2.5" drives. Installing the Top Front Drives or Mobile Rack 1.
  • Page 21 Chapter 2: Setup and Maintenance Figure 2-8. Installing an M28 Mobile Rack Figure 2-9. Installing an M14 Mobile Rack...

  • Page 22: Removing And Installing Optional 2.5" Storage Drives

    Supermicro SC735D4 Chassis User's Manual Removing and Installing Optional 2.5" Storage Drives Thumb Screw Figure 2-10. Installing Optional Cage and Drives 1. Power down the system as described in Section 2-2, and remove the left cover. 2. Loosen the thumb screw securing the drive cage to the chassis.

  • Page 23: Cooling

    Chapter 2: Setup and Maintenance 6. Insert or replace the drive in the carrier. 7. Insert the drive carrier into the cage, sliding it towards the back of the cage until it clicks into a locked position. 8. Slide the cage back into the chassis and tighten the thumb screw to secure the cage. 9.

  • Page 24: Front Fan

    Supermicro SC735D4 Chassis User's Manual Front Fan An optional fan can provide increased cooling if needed. This front fan and the optional internal 2.5" storage drives are mutually exclusive. Screws Optional Front Fan Rubber Pins Figure 2-12. installing a Front Fan...
  • Page 25 Chapter 2: Setup and Maintenance Installing the Front Fan (Optional) 1. Power down the system as described in Section 2.2 and remove the chassis side cover. 2. Insert the four rubber pins through the fan bracket and into the mounting holes in the fan.

  • Page 26: Installing Expansion Cards

    Supermicro SC735D4 Chassis User's Manual 2.6 Installing Expansion Cards Installing an Expansion Card 1. Power down the system as described in section 2-2 and open the left side chassis cover. 2. Remove the left chassis cover. 3. Push in the long release tab on the right side and the small one on the left side of the cover to detach and remove the cover completely.

  • Page 27: Power Supply

    Chapter 2: Setup and Maintenance 2.7 Power Supply The SC735D4 chassis can accommodate any standard PS2 size power supply. Mount the power supply on the rear floor of the chassis with the power supply fan facing down. It is recommended that the power requirements of installed components in the system total no more than 80% of the power supply rating.
  • Page 28 9. The 2000W power supply that comes standard with the SC735D4 is a modular type power supply that allows you to connect only the wiring you need for your system's configuration.

  • Page 29: Installing The Rear Input/Output Shield And Motherboard

    Chapter 2: Setup and Maintenance 2.8 Installing the Rear Input/Output Shield and Motherboard Figure 2-15. Installing the I/O Shield I/O Shield This shield encloses the I/O ports at the rear of the chassis. Install it before installing the motherboard. The motherboard package should include a compatible shield. Installing the I/O Shield 1.

  • Page 30: Motherboard

    Supermicro SC735D4 Chassis User's Manual Figure 2-16. Installing the Motherboard Motherboard Some standoffs are pre-installed and others are available in the accessory box. Compare the mounting holes in the motherboard to those in the chassis and add or remove standoffs as needed.

  • Page 31: Appendix A Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 32 Appendix A Standardized Warning Statements for AC Systems Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 33 SuperServer 2029U-T Series User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬ ٍ...
  • Page 34 Appendix A Standardized Warning Statements for AC Systems Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 35 SuperServer 2029U-T Series User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 36 Appendix A Standardized Warning Statements for AC Systems Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 37 SuperServer 2029U-T Series User's Manual ‫אזהרה מפני ניתוק חשמלי‬ ‫!אזהרה‬ ‫יש לנתק את המערכת מכל מקורות החשמל ויש להסיר את כבל החשמלי מהספק‬ ‫.לפני גישה לחלק הפנימי של המארז לצורך התקנת או הסרת רכיבים‬ ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت...
  • Page 38 Appendix A Standardized Warning Statements for AC Systems Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 39 SuperServer 2029U-T Series User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
  • Page 40 Appendix A Standardized Warning Statements for AC Systems Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 41 SuperServer 2029U-T Series User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제 조사에서...
  • Page 42 Appendix A Standardized Warning Statements for AC Systems ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 43 SuperServer 2029U-T Series User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 44 Appendix A Standardized Warning Statements for AC Systems ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스...
  • Page 45 SuperServer 2029U-T Series User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 46 Appendix A Standardized Warning Statements for AC Systems Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 47 SuperServer 2029U-T Series User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 48 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 49 ‫.قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح‬ ‫ لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحي‬UL ‫ وأ‬CSA ‫( ةمالع لمحت يتلاو‬UL/CSA) ‫ لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عم‬Supermicro.
  • Page 50 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 51: Appendix B System Specifications

    (Optional) Eight 2.5" drives in a mobile rack PCI Expansion Slots Seven PCIe full height, 10.5" length Chassis SC735D4; Mid-size tower, (WxHxD) 7.6 x 16.7 x 21.2 in. (193 x 424 x 536 mm) System Cooling One 12-cm exhaust fan Power Supply...
  • Page 52 Supermicro SC735D4 Chassis User's Manual Regulatory Compliance FCC, ICES, CE, UKCA, VCCI, RCM, NRTL, CB Certified Safety Models Compliant with UL and CSA: 119UH-R12X12, 119U-12, 119U-R12X12 Applied Directives, Standards EMC/EMI: 2014/30/EU (EMC Directive) Electromagnetic Compatibility Regulations 2016 FCC Part 15 Subpart B...
