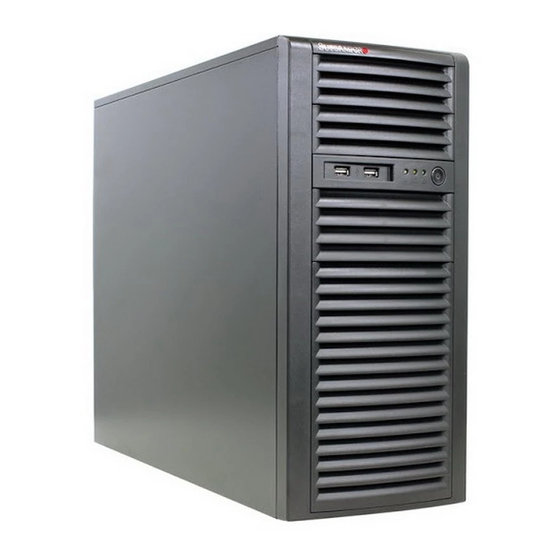

CHASSIS SERIES
SC732D
SC732D4-903B
SC732D2-903B
SC732D4-865B
SC732i-865B
SC732D4-500B
SC732i-500B
USER'S MANUAL
SC732
SC732D4F-903B
1.0b
SC732i
SC732D3-903B
SC732D4F-865B
SC732D2-865B
SC732D4F-500B
SC732D2-500B
SC732i-R500B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC732D4F-903B and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro SC732D4F-903B

Summary of Contents for Supermicro SC732D4F-903B

  • Page 1 SC732 CHASSIS SERIES SC732D SC732i SC732D4F-903B SC732D4-903B SC732D3-903B SC732D2-903B SC732D4F-865B SC732D4-865B SC732D2-865B SC732i-865B SC732D4F-500B SC732D4-500B SC732D2-500B SC732i-500B SC732i-R500B USER’S MANUAL 1.0b...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3 SC732 chassis. Installation and maintenance should be performed by experienced technicians only. Supermicro’s SC732 chassis features a unique and highly optimized design, allow- ing the user to install components with minimal or no use of screws or tools. The chassis is equipped with a either a 500, 865 ,900 or redundant 500 Watt whisper- quiet, high-efficiency power supply for superb power savings.

  • Page 4: Manual Organization

    SC732 Chassis Manual Manual Organization Chapter 1 Introduction The first chapter provides a description of the main components included with this chassis and describes the main features of the SC732 chassis. This chapter also includes contact information. Chapter 2 Standardized Warning Statements for AC Systems This section lists warnings, precautions, and system safety.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Introduction Overview ......................1-1 Where to get Replacement Components ............1-1 Shipping Lists ....................1-1 Contacting Supermicro ..................1-3 Returning Merchandise for Service..............1-4 Chapter 2 System Safety Overview ......................2-1 Warnings and Precautions ................2-1 Preparing for Setup ..................
  • Page 6 SC732 Chassis Manual Notes...

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction Overview Supermicro’s SC732 chassis features a unique and highly-optimized design, allow- ing most configuration of the chassis to be accomplished without tools or screws. The chassis is equipped with a high-efficiency power supply and high-performance fans provide ample optimized cooling. Four 3.5" HDD drive bays and four optional 2.5"...
  • Page 8 SC732 Chassis Manual PWS-903-PQ Model PCI Slots Power Supply SC732D4F-903B 4x 3.5" 900W SC732D4-903B 4x 2.5" 7x FF SC732D3-903B (Gold) (Optional) SC732D2-903B PWS-865-PQ Model PCI Slots Power Supply 4x 3.5" SC732D4F-865B 865W SC732D4-865B 4x 2.5" 7x FF SC732D2-865B High-efficiency (Optional)

  • Page 9: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 10: Returning Merchandise For Service

    For faster service, RMA authorizations may be requested online (http://www.super- micro.com/support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

  • Page 11: About Standardized Warning Statements

    Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Definition Warning! This warning symbol means danger.
  • Page 12 UPER ERVER "servername" User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 13 Chapter 2: Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬...

  • Page 14: Installation Instructions

    UPER ERVER "servername" User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 15: Circuit Breaker

    Chapter 2: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 16: Power Disconnection Warning

    UPER ERVER "servername" User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 17 Chapter 2: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 18: Equipment Installation

    UPER ERVER "servername" User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 19: Restricted Area

    Chapter 2: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 20: Battery Handling

    UPER ERVER "servername" User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬...
  • Page 21 Chapter 2: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 22: Redundant Power Supplies

    UPER ERVER "servername" User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 23: Backplane Voltage

    Chapter 2: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 24: Comply With Local And National Electrical Codes

    UPER ERVER "servername" User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 25: Product Disposal

    Chapter 2: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 26: Hot Swap Fan Warning

    UPER ERVER "servername" User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 27 Chapter 2: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.
  • Page 28 Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、 提供または指定された接続ケーブル、 電源コードとACアダプター...
  • Page 29 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 30 UPER ERVER "servername" User's Manual Notes 2-20...

  • Page 31: Overview

    Chapter 3 System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel to keep you constantly informed of the overall status of the system as well as the activity and health of specific compo- nents. This chapter explains the meanings of all LED indicators and the appropriate responses you may need to take.
  • Page 32 SC732 Chassis Manual NIC LED HDD LED Info LED Power Button Audio 2x IEEE 1394a 2x USB 2.0 2x USB 3.0 SC732D4F NIC LED HDD LED Info LED Power Button Audio 2x USB2.0 2x USB 3.0 SC732D4 NIC LED HDD LED Info LED Power Button...

  • Page 33: Control Panel Buttons

    Chapter 3 System Interface Control Panel Buttons Power: The main power button is used to apply or remove power from the power supply to the system. When the power is on, the power button will be lighted by a blue LED. Turning off the system power with this button will cause the blue LED to turn off and will remove the main power, but will keep standby power supplied to the system.
  • Page 34 SC732 Chassis Manual SC732D3 model chassis: • Two USB 3.0 ports • One audio port • One microphone port SC732D2 model chassis: • Two USB 2.0 ports • One audio port • One microphone port SC732i model chassis: • Two USB 2.0 portsS...

  • Page 35: Control Panel Leds

    Chapter 3 System Interface Control Panel LEDs The control panel located on the front of the SC732 chassis has three LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.
  • Page 36 SC732 Chassis Manual Notes...

  • Page 37: Chapter 4 Chassis Setup And Maintenance

    Chapter 4: Chassis Setup and Maintenance Chapter 4 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform main- tenance on the chassis. Most components of the SC732 do not require tools or screws to set them up. Those components which must be secured with screws require only a Phillips screwdriver.

  • Page 38: Removing The Chassis Side Covers

    SC732 Chassis Manual Removing the Chassis Side Covers Figure 4-1. Removing the Chassis Side Covers The SC732 features two removable side covers, allowing easy access to the chas- sis interior. Removing the Side Covers 1. Power down the system and remove the power cord from the rear of the power supply.

  • Page 39: Rotating The Hard Drive Cage

    Chapter 4: Chassis Setup and Maintenance Rotating the Hard Drive Cage Release Tab (A) HDD Cage (B) Figure 4-2. Rotating the Hard Drive Cage In order to access and install components in the chassis interior, it is necessary to rotate the hard drive cage (B). This will provide sufficient room to install and configure the chassis components.

  • Page 40: Removing And Installing 3.5" Hard Drives

    SC732 Chassis Manual Removing and Installing 3.5" Hard Drives Release Tabs Figure 4-3. Removing the Hard Drive Carrier from the Hard Drive Cage The SC732 chassis must be powered-down before hard drives can be removed from the hard drive carriers. Removing and Installing 3.5"...
  • Page 41 Chapter 4: Chassis Setup and Maintenance Figure 4-4. Removing the 3.5" Hard Drive from the Hard Drive Carrier 5. Gently slide the hard drive carrier out of the hard drive cage. 6. If a hard drive is already present, remove it by carefully pulling the sides of the hard drive carrier outward.
  • Page 42 SC732 Chassis Manual Optional Screw Figure 4-5. Installing the Hard Drive Carrier into the Hard Drive Cage 7. Remove the hard drive from the hard drive carrier. 8. Insert the new hard drive into the hard drive carrier. 9. Insert the hard drive carrier into the hard drive cage, sliding it towards the back of the the hard drive cage until it clicks into a locked position.

  • Page 43: Removing And Installing 2.5" Hard Drives (Optional)

    Chapter 4: Chassis Setup and Maintenance Removing and Installing 2.5" Hard Drives (Optional) Thumb Screw Figure 4-6. Removing the 2.5" Hard Drives The SC732 chassis must be powered-down before hard drives can be removed from the hard drive carriers. Removing and Installing 2.5" Hard Drives 1.
  • Page 44 SC732 Chassis Manual Figure 4-7. Installing 2.5" Hard Drives 5. If a hard drive is already present, remove it by carefully pulling the sides of the hard drive carrier outward. 6. Remove the hard drive from the hard drive carrier. 7.

  • Page 45: Installing The I/O Shield And Motherboard

    Chapter 4: Chassis Setup and Maintenance Installing the I/O Shield and Motherboard I/O Shield Figure 4-8. I/O Shield Placement I/O Shield An I/O shield holds the motherboard ports in place. Install the I/O shield before you install the motherboard. The maximum size of motherboard supported by the SC732 is a 12"...

  • Page 46: Motherboard Installation

    SC732 Chassis Manual Motherboard Installation Installing the Motherboard 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connec- tions. 2. Power down the system and remove the power cord from the rear of the power supply.

  • Page 47: Installing A 3.5" Device (Optional)

    Chapter 4: Chassis Setup and Maintenance Installing a 3.5" Device (Optional) The SC732D chassis has one 3.5" device slot, which supports an optional device, such as an all-in-one card reader. Installing a 3.5" Device 1. Power down the system and remove the power cord from the rear of the power supply.

  • Page 48: Installing Expansion Cards

    SC732 Chassis Manual Installing Expansion Cards Release Latch (A) Protective Bracket (B) PCI Card Slots Figure 4-11. Locating Expansion Card Components Expansion Card and PCI Slot Setup The SC732 chassis includes seven PCI card slots for expansion cards. The number of cards used varies, depending upon the motherboard models.

  • Page 49: Full-Height, Full-Length Expansion Card Setup

    Chapter 4: Chassis Setup and Maintenance Full-Height, Full-Length Card Holders (A) Figure 4-12. Installing a Full-Height, Full-Length Expansion Card Full-Height, Full-Length Expansion Card Setup The SC732 chassis includes clips to accomodate the use of full-height, full-length expansion cards. These clips support and stabilize the cards, preventing them from contacting any undesired surfaces.

  • Page 50: Installing The System Fans

    SC732 Chassis Manual Installing the System Fans Figure 4-13. Installing the Rear Exhaust Fan Installing the Rear Exhaust Fan 1. Power down the system and remove the power cord from the rear of the power supply. Remove the chassis side cover as described in Section 4-2. 2.
  • Page 51 Chapter 4: Chassis Setup and Maintenance Figure 4-14. Installing the Front Cooling Fan (Optional) Installing the Front Cooling Fan (Optional) 1. Power down the system and remove the power cord from the rear of the power supply. Remove the chassis side cover as described in Section 4-2. 2.

  • Page 52: 4-10 Installing The Front Bezel

    SC732 Chassis Manual 4-10 Installing the Front Bezel Front Bezel Installation 1. Insert the tabs on the front bezel into the mounting holse on the front of the chassis. 2. Ensure that the cover fits snugly. This completes the installation of basic components in the SC732 chassis Figure 4-15.

  • Page 53: 4-11 Power Supply

    Chapter 4: Chassis Setup and Maintenance 4-11 Power Supply The SC732 chassis includes either a 500W, redundant 500W, 865W or 900W power supply. In the unlikely event that it becomes necessary to replace the power supply, follow the instructions below. Power Supply Figure 4-16.
  • Page 54 SC732 Chassis Manual Notes 4-18...

  • Page 55: Appendix A Power Supply Specifications

    Appendix A: Power Supply Specifications Appendix A Power Supply Specifications This appendix lists power supply specifications for your chassis system. SC732D4F-500B, SC732D4-500B, SC732D2-500B, SC732i-500B 500W MFR Part # PWS-502-PQ 100 - 240V Rated AC Voltage 50 - 60Hz 12 - 6 Amp +5V standby 6.5 Amp +12V 69 Amp +5V 30 Amp...
  • Page 56 SC732 Chassis Manual SC732D4F-903B, SC732D4-903B, SC732D3-903B, SC732D2-903B 900W MFR Part # PWS-903-PQ 100-240 V AC Voltage 50-60 Hz 10-6 Amp +5V standby 3 Amp +12V1 25 Amp +12V2 25 Amp +12V3 25 Amp +12V4 25 Amp +5V 25 Amp +3.3V 25 Amp...
  • Page 57 Appendix A: Power Supply Specifications SC732i-R500B 500W Redundant Power Supply MFR Part # PWS-503R-PQ 100-240 V AC Input 50-60 Hz 10-6 Amp +5V 25 Amp +5V Standby1 4 Amp +12V 40 Amp +3.3V 20 Amp -12V 0.8 Amp...
  • Page 58 SC732 Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
