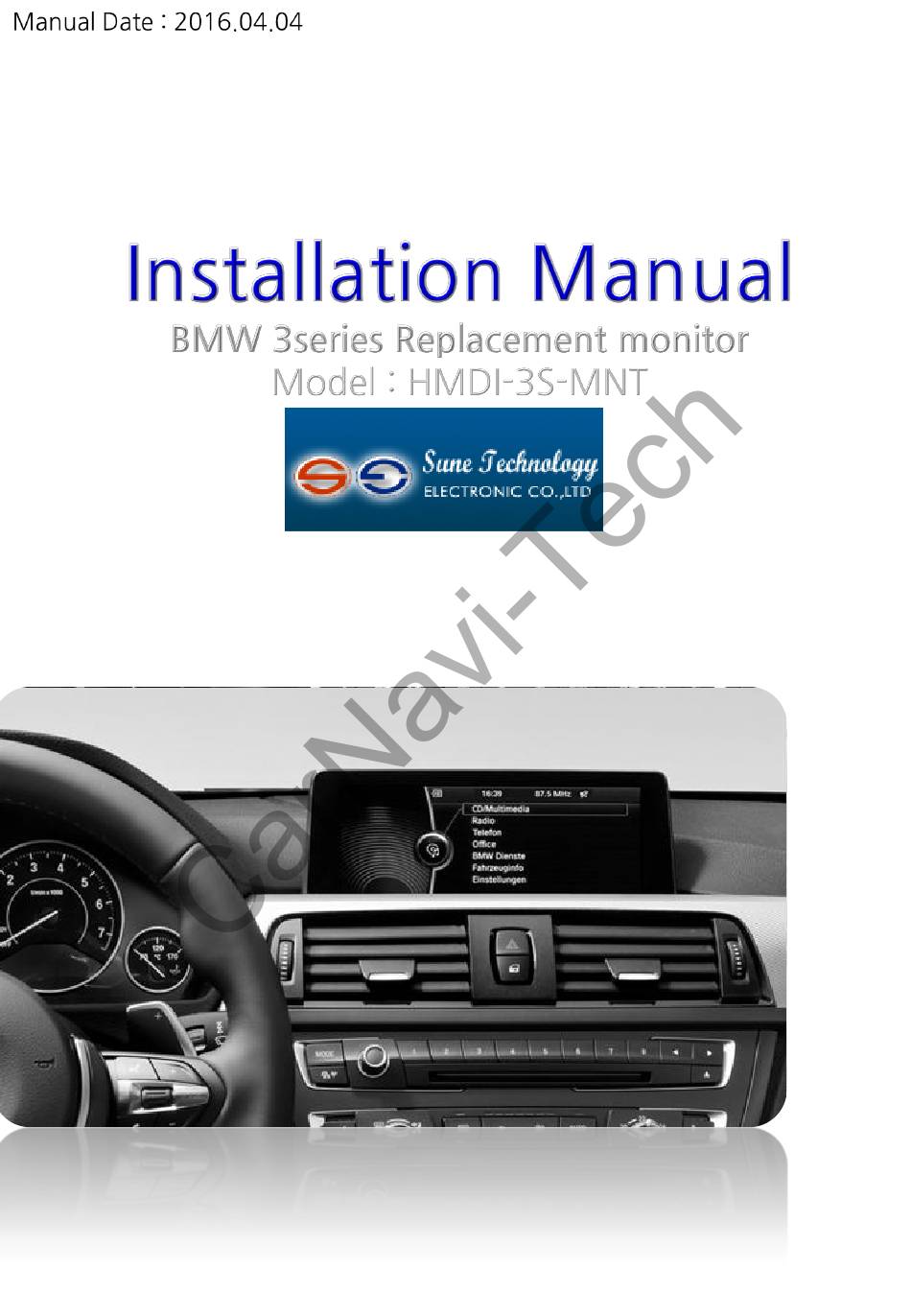

- Page 1 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...
- Page 2 •Specification Car Compatibility : BMW 3 series Components : Monitor 1EA Multimedia interface Input/output spec Input : HDMI*1, Output : To LCD*1, 5V USB power for Mirroring Power spec Input power : 8VDC ~ 18VDC Consumption : 5WATT Mode Switch feature - Able to switch the mode by the OEM buttons •Features •...
- Page 3 • Product exterior 8.8inch Monitor CAN IN / AUDIO OUT(Power cable ) | HDMI(HDMI cable) • Components POWER CABLE * 1ea HDMI Cable * 1ea (HARETC0184) (HARETC0175)
- Page 4 •How to use OEM buttons ※ Memory #8 should be saved as AUX switching mode. Then, AUX will be switched when the mode is changed. < Voice button on the < Memory button #8 > steering wheel > ※ Long Press - OEM mode ↔HDMI mode Short Press –...
- Page 5 •Factory setting Able to check system version FACTORY HDMI 3S COM INFO SYSTEM VERSION IMAGE UTIL1 (MAIN-130723) Possible to change the screen color FACTORY HDMI 3S COM INFO CONTRAST CONTRAST IMAGE BRIGHTNESS UTIL1 SHARPNESS BRIGHTNESS Able to change other options FACTORY HDMI 3S COM INFO BACK LIGHT...
- Page 6 •Installation Diagram Q-CAST OEM CABLE If there is no AUX wire on Plug&play cable, Connect RCA cable to Vehilce’s Aux port <OEM cable> <backside of the radio system> Remove OEM cable from the backside of Connection the radio system and connect the OEM cable to the place where it is marked on the picture above...
- Page 7 •Trouble shooting Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well. (Second lamp indicates AV sources connected works well.) Check interface connection has been done well. Q.
