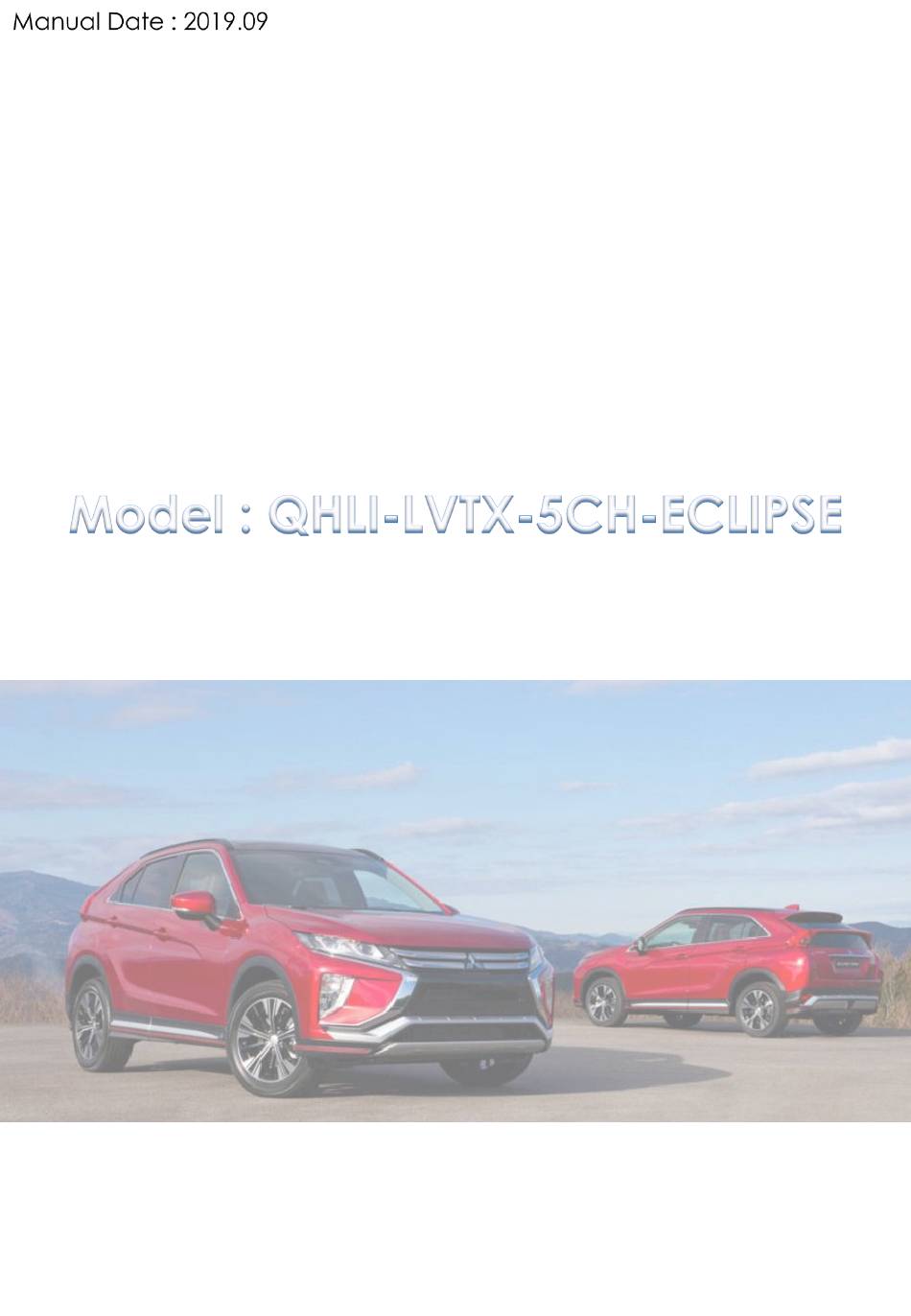

- Page 1 Installation Manual HDMI Interface for Mitsubishi Eclipse...
- Page 2 Compatibility: Eclipse/Outlander/Pajero/ASX/ Eclipse cross 2016~ Components: Interface*1 Sub Board*1 and Ex Board*1 Interface Input / Output specification: Input: HDMI*2 LVDS*1 A/V*2 CVBS(Rear camera)*1 CVBS(Front camera)*1 Output: To LCD*1 Power Spec: Input Power: 8VDC ~ 18VDC Consumption: 5WATT Switch input mode: External video sources skip function: Able to control input videos on and off via Dip switches Able to switch videos via the remote and button switch...
-
Page 3: Main Board
ECLIPSE BACK COVER MAIN BOARD POWER CABLE PRESET0869 QCPASS1347 HPOWER0229 AV CABLE MULTI CABLE IR CABLE 4P REMOTE CONTROL HAVCAB0056 HARETC0240 HIRCAB0002 REMOTE0001 EX CABLE S/W CABLE AUX CABLE HARETC0249 HARETC0001 HARETC0316 ECLIP-5CH-SUB ECLIPSE BD SUPP BRKT QCPASS1342 PRESET0870 FFC CABLE HDMI Cable FFCABL0017 HARETC0067... -
Page 4: Front Camera
※ ON : DOWN / OFF : UP FUNCTION Dip S/W SELECT OFF : LVDS MODE LVDS ON : LVDS MODE SKIP OFF : HDMI1 MODE HDMI1 ON : HDMI1 MODE SKIP OFF : AV1 MODE ON : AV1 MODE SKIP OFF : AV2 MODE ON : AV2 MODE SKIP OFF: EXT FRONT CAMERA... - Page 5 To Sub board ADC No Use LVDS NAVI BOX Plug & Play harness A/V CABLE...
- Page 6 ※ Main IF + Sub board Connection ※ Power / CAN J BY J cable Connection One pair of CAN H / L wires are added on the cable, but please do not use it.
- Page 7 ※ Power / CAN cable connection On this J by J cable, you can find ADC cable. Please plug it to ADC port on the Interface. ① You can use End call button on the steering wheel for mode change ②...
- Page 8 ① ② Please disassemble the monitor as above Please disconnect black OEM FPC cable picture. and connect supplied FPC cable as above. ③ ④ Please connect another side of supplied FPC cable Please install supplied sub board to supplied sub board and install supplied sub board bracket as above.
- Page 9 ※ Mode switch via long press on End Call button After connecting ADC cable, it will be able to use the end call button for mode switch.
- Page 10 ※ Use APPS button for mode switch After connecting CAN J BY J cable, it will be able to use the APPS button for mode switch.
-
Page 11: Image Setting
Menu of FACTORY IMAGE SETTING IMAGE H-POSITION PARK V-POSITION H-POSITION: Move the screen left and right. UTIL1 UTIL2 V-POSITION: Move the screen up and down. INFO MENU to Return SEL to Select/Save Menu of FACTORY PARK SETTING IMAGE PAS TYPE PARK PAS SETUP UTIL1... -
Page 12: System Version Information
Menu of FACTORY UITL1 IMAGE AVOUT SELECT AVOUT SELECT: Select audio channel PARK LVDS MODEL UTIL1 CAR MODEL transmitted through AUX (DEFAULT/AV1/AV2/AV3) UTIL2 HD2 SKIP INFO FACTORY RESET LVDS MODEL: LVDS setting (CARPLAY) CAR MODEL: Car model setting MENU to Return SEL to Select/Save HD2 SKIP: HDMI2 skip setting (YES/NO) - Page 13 Q. I cannot change mode A. Check connection of Ground cable and IR Cable. Check LED lamp is on, if not check connection of POWER cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well.
- Page 14 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX: +88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99 Copyright ⓒ 2019 by SUNE TECHNOLOGY...
