- Page 1 SUNE TECH Insta lla tion Manual HD-LEXUS Man ual Date 2019, 04, 10 2019, 04, 08 Mai n 2019, 04, 06 Fi rmware Date 2019, 04, 06 Tw8823...
- Page 2 SUNE TECH HD-LEXUS LEXUS Default - Pow er Capaciti v e Touch Cable Key-Pad HD-LEXUS Univers al HD-LEXUS AV-Cable IR - Cable RGB OUT Cable Register Touch option option...
- Page 3 SUNE TECH New GVIF Cable Old GVIF Cable option option Power – 1on1 Power-NewLCD Power-Toyota Power-w/o Navi option option option option...
-
Page 4: Rgb Input

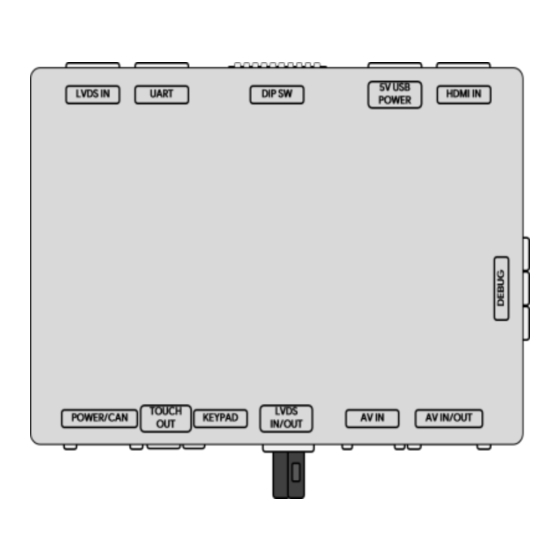

SUNE TECH RGB Input Analog Red Analog Green Analog Blue Analog CSYNC Analog Ground UART RX <- Device UART TX -> Device AV IN/OUT Navi Audio In R Ground Navi Audio In L Ground POWER / CAN AV IN Audio Out R Ground ACC IN Ground... - Page 5 SUNE TECH Switch Model Inch Year Used HDMI Input 12 ( Full ) 2017 ~ 12 ( Full ) 2017 ~ Used LVD S Input 12 ( Full ) 2017 ~ Used Rear Camera Input IS(use GS CAN)1ON1+NEW LCD 2018 ~ Used Front Camera Input 12 ( Half ) 2013 ~ 2016...
- Page 6 SUNE TECH Model Inch Years POWER Cable Type GVIF Type 8 inch Defau lt + w/o Navi 2013 ~ 2017 GVIF OLD 7 inch 8 inch Defau lt + 1on1 8 inch 2018 ~ Defau lt + New LCD GVIF NEW 12 inch 2013 ~ 2018 Defau lt + w/o Navi...
-
Page 7: Hdmi Device
SUNE TECH HDMI DEVICE NAVIGATION REAR / FRONT DVB-T From HEADUNIT From HEADUNIT... - Page 8 SUNE TECH HDMI DEVICE NAVIGATION REAR / FRONT DVB-T From HEADUNIT From HEADUNIT...
- Page 9 SUNE TECH Steer Remote How to press Description of operation 1, Hands Free Return back to OEM Screen form Interface Press button for short time calling Screen Screen is switched in that orde r switches are activated. 2, Seek In DVB-T mode , Press button for short time Up/Down Cha nge channel to up...
- Page 10 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99 Copyright ⓒ 2019 by SUNE TECHNOLOGY...
