- Page 1 SUNE TECH Installation Manual ＳＵＮＥ１０ ＶＥＬＡＲ Manual Date 2019, 06, 21 Main 2019,06,05 2019,06,05 Firmware Date 2019,06,05 Tw8823...

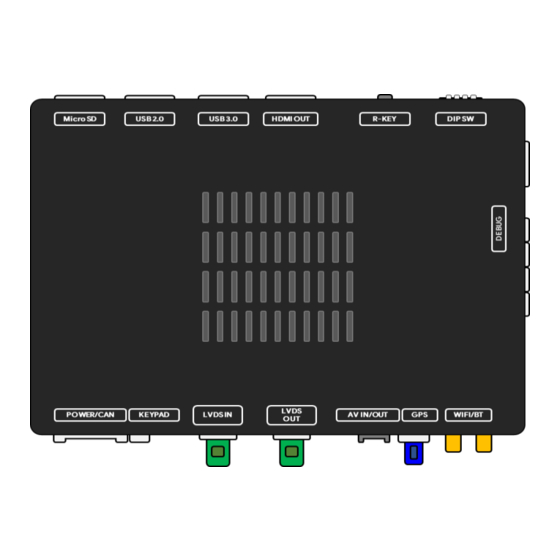

- Page 2 SUNE TECH LVDS BOARD PO WER ＳＵＮＥ１０－ＶＥＬＡＲ Extension Power LVDS Cable X 3 AV - CABLE KEY PAD Speaker GLONASS GPS WIFI/BT Antenna x 2...
- Page 3 SUNE TECH POWER / CAN ACC IN Ground AV IN/OUT ST_KEY 1 ST_KEY 2 12V OUT SPEAKER P SPEAKER N APIX OUT SEL RELAY 5V Audio Out R Ground LIN IN OMNI KEY Audio Out L Ground PAS CAN H PAS CAN L MIC P MIC N...
- Page 4 SUNE TECH Supported TOUCH DUO PRO NOT Supported TOUCH DUO PRO...
- Page 5 SUNE TECH From Headunit 1 = GROUND ( Black ) 3 = BATTERY (Gray/Red ) GROUND PAS CAN H 16 = PAS CAN LOW ( Purple/Gray ) PAS CAN L 17 = PAS CAN HIGH ( Purple/Green) LIN IN 18 = LIN IN ( Yellow )
- Page 6 SUNE TECH Steer Remote How to press Description of operation Return back to OEM Screen form Interface 1, Voice Press button for short time Screen Press button for 1 second Screen is switched to Android...
- Page 7 SUNE TECH 1920 x 720 HDMI INPUT SOURCE DEFAULT NAVIGATION BRIGHT REAR VIEW CONSTRAST RED FRONT VIEW CONSTRAST GREEN CONSTRAST BLUE CUSTOM EXIT DIP SWITCH INFO : FIRMWARE DATE : MAIN : 2019, 02, 03 SUB : 2019, 02, 03 TW23 : 2019, 02, 03 How to press In not settings menu.
- Page 8 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99 Copyright ⓒ 2019 by SUNE TECHNOLOGY...
