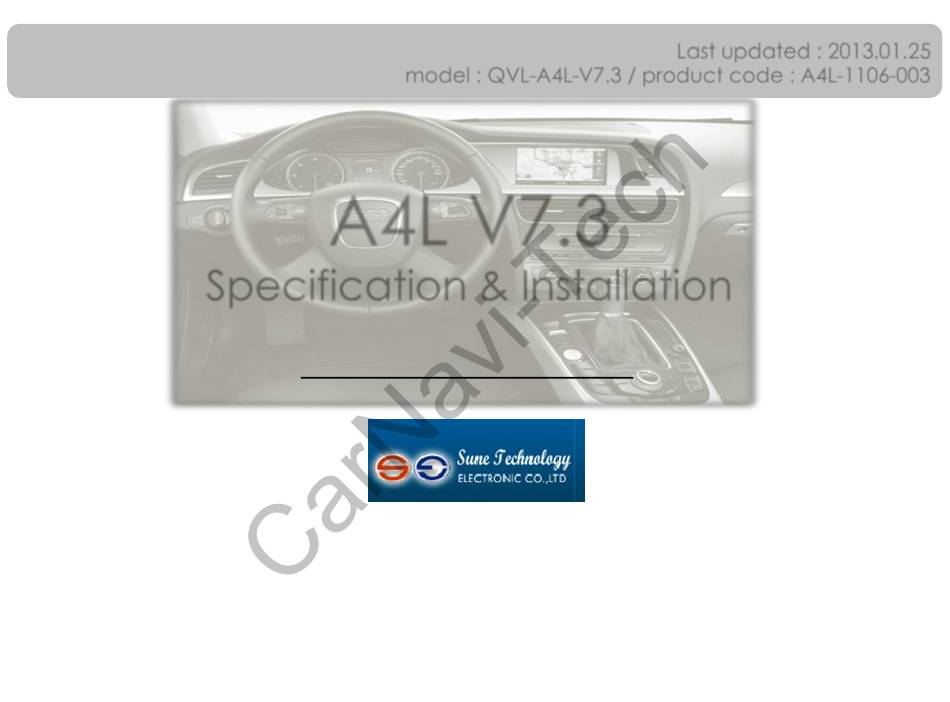

Last updated : 2013.01.25
model : QVL-A4L-V7.3 / product code : A4L-1106-003
A4L V7.3
Specification & Installation
Without MMI version
SUNE TECHNOLOGY ELECTRONIC CO., LTD
No.9, Land 606,Anping Rd., Tainan City 70849 Taiwan
Tel: +886-62292246 Fax:+886-62288104
Website http://www.sune-tech.com
Shop http://www.carnavi-tech.com
Skype : hsin_han99 or sune_tech
Your best partner for better driving
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sune Technology QVL-A4L-V7.3
Summary of Contents for Sune Technology QVL-A4L-V7.3
- Page 1 Last updated : 2013.01.25 model : QVL-A4L-V7.3 / product code : A4L-1106-003 A4L V7.3 Specification & Installation Without MMI version SUNE TECHNOLOGY ELECTRONIC CO., LTD No.9, Land 606,Anping Rd., Tainan City 70849 Taiwan Tel: +886-62292246 Fax:+886-62288104 Website http://www.sune-tech.com Shop http://www.carnavi-tech.com...
-
Page 2: Table Of Contents
Contents 1. Before Installation 1.1 Main Specificaton 1.2 Features 1.3 System diagram 1.4 Components 1.5 Exterior 2. Setup 2.1 DIP switch 2.2 Remote control 2.3 OSD Implementation 2.4 OSD (on screen display) 2.5 FACTORY mode 2.6 Parking guide line setting 2.7 Touch Calibration 2.8 Remote control button 2.10 Select DVD, DTB model... -
Page 3: Main Specificaton
1.1 Main specification 1. Input Spec. (MULTI VIDEO INTERFACE) -. 1 x Analog R,G,B,Sync -. 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 3 x A/V (NTST & PAL) Input. -. 1 x LCD Input (Car system Input) 2. Output Spec. -. -
Page 4: Features
1.2 Features - Input IR Code from each video sources, by using original type touch screen user can control external DVD, DTV - RGB and A/V Mode screen can be changed from external video source - Plug & Play by LVDS cable... -
Page 5: System Diagram
1.3 System diagram AUDI DISPLAY Original Monitor Navigation Input A/V1 Touch Input A/V2 LVDS In/Out VIDEO A/V3 CIRCUIT VIDEO MUX Sub-Board CVBS (Rear Camera) POWER CIRCUIT REAR HEADREST TOUCH CAMERA MONITOR Car Input NAVI DIP S/W Power Input (+10VDC~+16VDC) -
Page 6: Components
1.4 Components TOUCH OUT cable * 1ea (HTOUCH0004) IR cable * 1ea LCD cable * 1ea (HIRCAB0002) (HLCDCA0008) LVDS cable * 1ea (HLVDSC0003) MODE cable * 1ea (HARETC0001) Sub-board* 1ea (ASSEMB0063) RGB cable * 1ea TOUCH cable * 1ea (HNAVIC0004) (HTOUCH0007) REAR CAMERA POWER cable * 1ea (HARETC0002) -
Page 7: Exterior
1.5 Exterior ⑦ ⑥ ⑤ ④ - SUB BOARD - (52*31*19) ⑪ Dimension ⑦ ⑥ ⑤ ④ Horizontal length 125mm Vertical length 102mm Height 24mm ① POWER/CAN/RGB ② AV(IN/OUT) ③ Rear camera ④ LCD-OUT ⑧ ⑨ ⑩ ⑤ TOUCH ⑧ TO LCD ①... -
Page 8: Dip Switch
2.1 DIP switch ※DIP S/W Use Example #PIN Function DIP S/W selection [AUDI A4/A5] ON : Skipping RGB Mode RGB INPUT Skip OFF : RGB Display - Use Input Mode : A/V3(DVD), Navigation (RGB) ON : Skipping A/V 1 - Rear Camera : External rear camera A/V 1 Skip OFF : A/V1 Display - When original Navigation is not installed... -
Page 9: Remote Control
2.2 Remote control Function POWER & PIP Not for use MENU OSD implementation Making a selection ▲ Move upward ▼ Move downward Move leftward, press 2 seconds long-Factory ◀ mode implementation Move rightward, press 2 seconds long-Factory ▶ Mode implementation-Factory mode Reset *FACTORY MODE (Interface setting ) : Operated by pressing ▲... -
Page 10: Osd Implementation
2.3 OSD Implementation OSD implementation - DVD To implement DVD OSD menu, DVD must be installed in AV1; DVD IR in NAVI cable must be connected with DVD remote control sensor cable. First of all, if you touch the screen on mode ”AV1”, you can see the menu as shown left. -
Page 11: Osd (On Screen Display)
2.4 OSD (on screen display) OSD menu : Press “MENU” button on the remote control. Analog RGB Mode Analog RGB Mode Analog RGB Mode Video Mode Video Mode Video Mode IMAGE UTIL - BRIGHTNESS -LANGUAGE : Choosing OSD - FACTORY RESET : Resetting all the - CONTRAST language while using Touch OSD data about the relevant mode. -
Page 12: Factory Mode
2.5 Factory mode FACTORY mode – Press ◀ button 2 seconds long on the remote control. IMAGE * H-POSITION : moving in horizontal direction * V-POSITION : moving in vertical direction PARK - PARK ENABLE : Selecting whether to display the parking guide line or not on rear gear (default : OFF) - PARK SETUP : Adjusting the position of the parking guide line (available in PARK SETUP ->... -
Page 13: Parking Guide Line Setting
2.6 Parking guide line setting FACTORY mode – Press ◀ button 2 seconds long on the remote control. ① Register the value needed on the “PARK ENABLE” as “ON” in the PARK section as shown left. (default – OFF) ② If you get rear gear after setup, parking guide line will appear on screen as shown left. -
Page 14: Touch Calibration
2.7 Touch calibration >>> ① First of all, press ◀ button on remote control 2 ③ Then you can see “touch calibration” on seconds long. Then you can access to the FACTORY screen about 2 seconds long as shown above. mode. -
Page 15: Remote Control Button
2.8.1 Remote control button Registering value of remote control buttons? To control DVD and DTV via touch screen (using OSD menu) with other models besides already registered option- SANYO and NECVOX, you can register value of DTV and DTV’ s remote control which you have. Then you can control DVD and DTV via touch screen. - Page 16 2.8.2 Remote control button >>> ③ After register, select “INPUT” in OSD menu and press Instruction> continued… “OK”. Then you can see confirmation window as c. The values that you registered will appear as green shown above. At the moment, if you choose “YES”, all text in the marked area on pressing the button.
-
Page 17: Select Dvd, Dtb Model
2.9 Select DVD, DTV Model Factory Default : DVD TYPE - NECVOX/SANYO (For Chinese DVD) DTV TYPE - CMMB(For Chinese DTV) DVD TYPE DTV TYPE UTIL – DVD/DTV TYPE If DVD/DTV type that you want to use is not NECVOX or SANYO, you have to register values of the remote control that you want to use in the “IR MEMORY”... - Page 24 3. Trouble shooting 1. When can not change mode. -. Check if the IR Cable (Remote) is connected or not. -. Check if LED is turned on or not. If it is not turned on, Check if power cable is connected or not. -.
