Your best partner for better driving
SUNE TECHNOLOGY CO.,LTD
No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN
TEL:+88662292246 FAX:+88662288104
Http://www.sune-tech.com
Shop http://www.carnavi-tech.com
SKYPE:sune_tech or hsin_han99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QPI-BM12 and is the answer not in the manual?

Questions and answers

Related Manuals for Sune Technology QPI-BM12

Summary of Contents for Sune Technology QPI-BM12

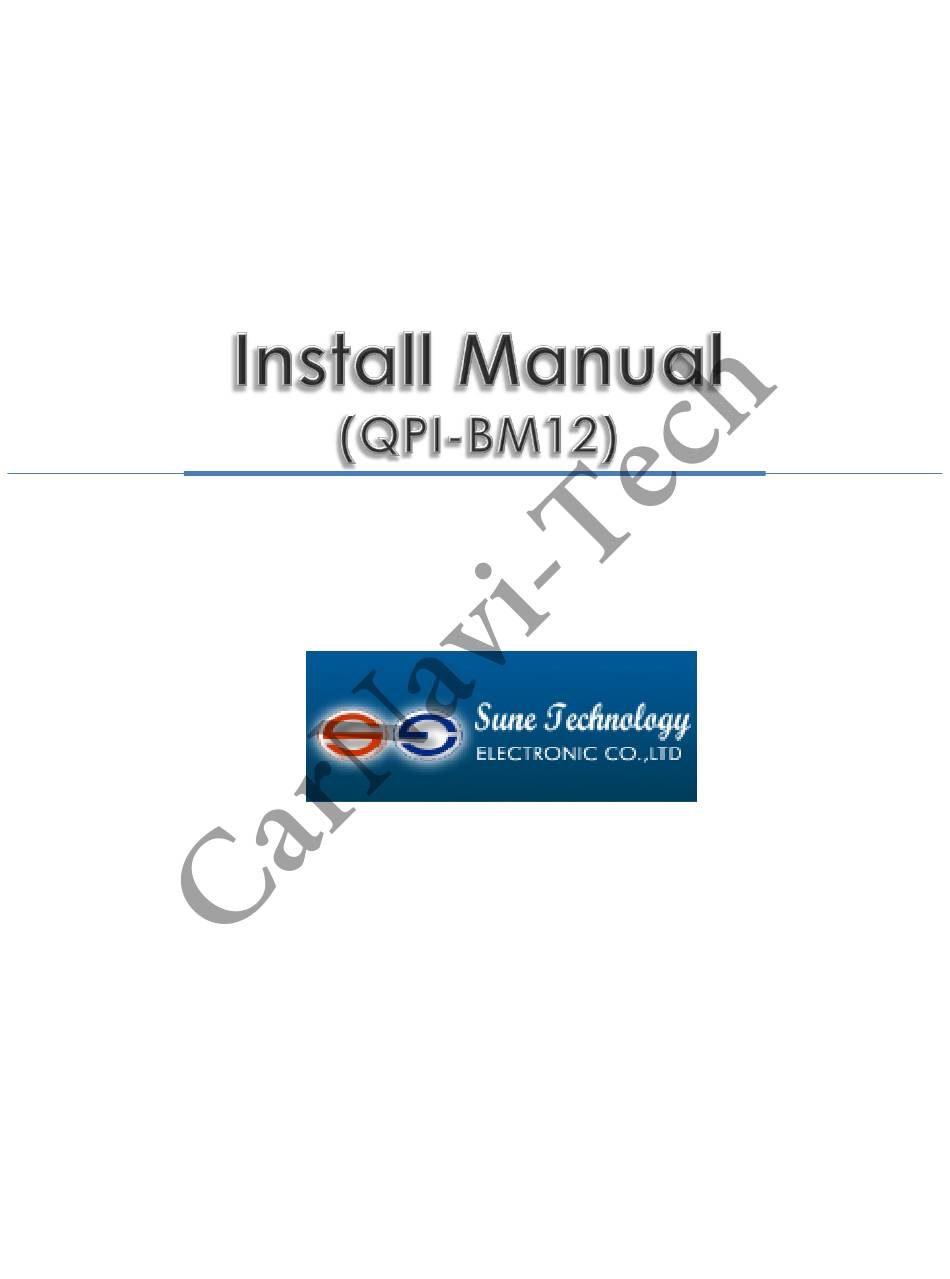

  • Page 1 Your best partner for better driving SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...
  • Page 2 Warning / Caution  When installing the main unit, do not remove or alter existing vehicle fasteners, including nuts, bolts, screw, clips, and fittings. Never detach, move or alter existing vehicle wiring, including electrical grounds and straps. Alteration of existing vehicle Warning components may make vehicle unsafe to operate.

  • Page 3: Table Of Contents

    Table of Contents 1. Specifications 1.1 Main Specifications 1.2 Features 1.3 System Diagram 1.4 Components 1.5 Exterior 2. Installation 2.1 Installation Diagram 2.2 Installation 3. Settings 3.1 DIP Switch 3.2 Remote Control 3.3 Car Model and Navi Model 3.4 Factory Mode 3.5 DVD, DTV I-DRIVE input 3.6 Original Button Usage 3.7 PIP setup...

  • Page 4: Specifications

    1. Specifications 1.1 Main Specifications 1. Car Compatibility BMW New 1,3,5,7 series 6.5’’ & 8.8’’ & 10.2” 2. Components Interface* 1EA 3. MULTIMEDIA INTERFACE input specification 3 * A/V input (video external input) 1 * CVBS(Rear Camera) input 1 * Analog RGB input (Navigation system output) 1 * LCD input (Car system input) 4.

  • Page 5: Features

    1. Specifications 1.2 Features  Easy installation through connection with commander  Able to control NAVI, DVD, DTV function by using I-Drive Controller  Able to adjust DVD, NAVI display on screen  Improved Screen Display (user-oriented interface)  Mode change through original button (I-DRIVE MENU BUTTON) ...

  • Page 6: System Diagram

    1. Specifications 1.3 System Diagram Switch for source toggle Remote control OEM Button (Can Signal) NAVIGATION Input (Analog RGB) DISPLAY Car Installation A/V 1 OEM LCD VIDEO MUX A/V 2 VIDEO CIRCUIT A/V 3 CVBS (Rear camera) Car Screen Input (CAR MAIN BOARD) POWER A/V OUT...

  • Page 7: Components

    1. Specifications 1.4 Components Extension Sub-board * 1ea (QCPASS0414)(Optional) LCD Cable * 1ea (HLCDCA0019) LVDS Extension Cable * 1ea Remote control * 1ea (HLCDCA0022)(Optional) (REMOTE0001) A/V cable * 1EA (HAVCAB0002) Mode cable * 1EA TOUCH IN cable * 1ea (HARETC0001) (HTOUCH0009) RGB cable * 1ea TOUCH OUT cable * 1ea...
  • Page 8 1. Specifications 1.4 Components 10.2” Touch Panel (TOUPAN0002) 8.8” Touch Panel (TOUPAN0012)

  • Page 9: Exterior

    1. Specifications 1.5 Exterior Dimension Width 150.4mm ⑬ ⑫ ⑪ ⑩ ⑨ Length 99.4mm Height 2.3.2mm ① MODE ② IR ③ POWER ④ TOUCH OUT TO NAVI ⑤ TOUCH IN FROM LCD ⑥ R-CAM ⑦ RGB-IN ⑧ AV IN/OUT ⑨ LCD-OUT ①...

  • Page 10: Installation Diagram

    2. Installation 2.1 Installation Diagram <Behind of Radio System> Monitor Original LCD Cable Provided LCD cable...

  • Page 11: Installation

    2. Installation 2.2 Installation / Monitor and Interface connection ① See left picture, Remove original LCD cable from monitor and connect with provided LCD cable. ② Connect the original LCD cable with LCD-IN on the interface. ※ Precaution : Do not connect power cable with accessory power, connect with backside of command or cigar jack.
  • Page 12 2. Installation 2.2 Installation / connect Power cable <Interface> Connect with Interface Connecting Connecting Connecting ※ Plug & Play without fiber optic cables - You are required to connect original fiber optic cables to the supplied plug & play connector Example <Behind of Radio System>...

  • Page 13: Settings

    3. Settings 3.1 DIP Switch ※ Example DIP S/W usage - Use input mode : A/V2, A/V3 - Use original navigation - External rear camera ▷DIP S/W : 1,2  ON (hide INPUT MODE) ▷DIP S/W : 3  OFF (A/V2 display) ▷DIP S/W : 4 ...

  • Page 14: Remote Control

    3. Settings 3.2 Remote Control Function POWER & PIP Unavailable MENU Activating OSD menu Making a selection, changing image display ▲ Moving upward ▼ Moving downward Moving leftward ◀ (If you press this button 2 seconds long, you can access the factory mode.) Moving rightward ▶...

  • Page 15: Car Model And Navi Model

    3. Settings 3.3 Car Model and Navi Model FACTORY mode – Press ◀ button 2 seconds long on the remote control.  Setup for car model Setup for navigation  UTIL1 - CAR MODEL  UTIL1 – NAVI MODEL Selecting model of the car Select navigation model F20 : 1, 3, 5, 7 series 6.5”...

  • Page 16: Factory Mode

    3. Settings 3.4 FACTORY Mode FACTORY mode – Press ◀ button 2 seconds long on the remote control.  UTIL1 – AVOUT SELECT  UTIL1 - FACTORY RESET Selecting background sound After FACTORY MODE RESET returning navigation or original mode DEFAULT : Selecting AV sound just before changing navigation or original mode...
  • Page 17 3. Settings 3.4 FACTORY Mode FACTORY mode – Press ◀ button 2 seconds long on the remote control.  UTIL2 - I_DRV CONTROL  UTIL2 - I_DRV REMOTE Selecting whether to use I_DRV Choose DTV and DVD model function or not to be control I_DRV function ON / OFF LI-1DISC...
  • Page 18 3. Settings 3.4 FACTORY Mode FACTORY mode – Press ◀ button 2 seconds long on the remote control.  UTIL2 – IR MEMORY  UTIL2 – HANDLE KEY To register DVD, DTV remote control, Whether to use voice button the remote control value must be on handle for mode change registered and can be control with I-Drive...

  • Page 19: Dvd, Dtv I-Drive Input

    3. Settings 3.5 DVD, DTV IR MEMORY input ① First of all, press ◀ button on ② Picture above shows DVD remote controller 2 seconds remote control button value long or press input, select menu you want UP→DOWN→UP→MENU to save. (To register DVD button in order to access remote control button value, Factory mode.
  • Page 20 3. Settings 3.5 DVD, DTV I-DRIVE input ③ After register, select “SRC” button in OSD menu. Then you example) continued.. can see confirmation window c. The values that you as shown above. At the registered will appear as moment, green text in the marked (If data is saved, DVD TYPE and area on pressing the button.

  • Page 21: Original Button Usage

    3. Settings 3.6 Original Button Usage/ 6.5” I-Drive Button (6.5”) Mode Operation Function Press longer Change mode Press shorter Go back to original image Whole Mode MENU Press shorter Making Selection Audio Press shorter Change mode + Change Car AUX Button #8 Reverse Press shorter...
  • Page 22 3. Settings 3.6 Original Button Usage / 8.8” I-Drive Button (8.8”) Mode Operation Function Press longer Change mode Press shorter Go back to Original image Whole MENU Press shorter Select mode Long press Change mode Audio Press shorter Change mode+ Change Car Aux Button #8 RGB(HDMI) Push longer this button in the...

  • Page 23: Pip Setup

    3. Settings 3.7.1 PIP Setup Can watch original mode with external input in RGB(When select HDMI) Or A/V1~3 mode - 6.5“ Monitor : Press shorter voice button in steering wheel - 8.8”, 10.2” Monitor : Push down longer I-Drive ※ Full screen → PIP Screen<1> → PIP Screen<2> User can watch external mode as full screen External mode-Full screen...

  • Page 24: Pop Set Up

    3. Settings 3.7.2 POP(Picture on Picture) - MINI with 6.5” ※ Only MINI with 6.5“ has a POP function. ☞ Short press Voice button in rear camera mode : Shift the position of POP...

  • Page 25: Switch Modes

    3. Settings 3.7.3 Switching modes ☞ Long press Voice button(Refer to Page 19) ☞ Car Audio Button (Quick Button) : Press Number 8 button - ① ① ☞ Car Audio Button Quick Button : Press Number 6 button (F56)-② ② ※...

  • Page 26: Rear Camera

    3. Settings 3.8 Rear Camera FACTORY mode – Press ◀ button 2 seconds long on the remote control. ※After installing rear camera : DIP S/W #7 must be put down (ON). Refer to page 9. Menu of FACTORY IMAGE PAS TYPE PARK PAS SETUP UTIL1...
  • Page 27 3. Settings 3.8.1 Rear Camera / 6.5” Rear display setting Press shortly on steering wheel, to select rear camera screen and POP screen QDIS < Rear camera full screen > QDIS < PIP screen > 3.8.1 Rear Camera / MINI with 6.5” ☞...
  • Page 28 3. Settings 3.8 Rear Camera / 8.8” Rear display setting Push down about 2 seconds long on I-Drive and select mode QDIS < Rear camera full screen > QDIS < PIP screen > ※ For 3D PDC, set DIP S/W 6 ON <...

  • Page 29: Rear Parking Guidelines

    3. Settings 3.9 Rear Parking Guidelines Go to Factory Menu, choose PAS SETUP, by using OK button change H-POS → V-POS  H-POS In H-POSITION, use ◁, ▷ on remote control, to adjust parking guideline left and right.  V-POS In V-POSITION use △, ▽on remote control, to adjust parking guideline up and down.

  • Page 30: Osd

    3. Settings 3.10 OSD (On Screen Display) / Analog RGB Mode  OSD  IMAGE *LANGUAGE : Set OSD language * BRIGHTNESS (only support English and Chinese) * CONTRAST * TRANS : Adjust OSD transparency * SHARPNESS *H-POSITION : Move OSD horizontally * V-POSITION : Move OSD vertically ...
  • Page 31 3. Settings 3.10 OSD (On Screen Display) / Video Mode  OSD  IMAGE * LANGUAGE : Set OSD language * BRIGHTNESS (only support English and Chinese) * CONTRAST * TRANS : Adjust OSD transparency * SATURATION * H_POSITION : Move OSD horizontally * HUE * V_POSITION : Move OSD vertically * SHARPNESS...

  • Page 32: Trouble Shooting

    4. Trouble Shooting Q. I cannot change mode A. Check connection of Ground cable and IR Cable. Check LED lamp is on, if not check connection of POWER cable. Q. All I got on the screen is black. A. .Check second LED lamp of the interface is on, if not, check A/V sources connected are working well.
  • Page 33 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...
