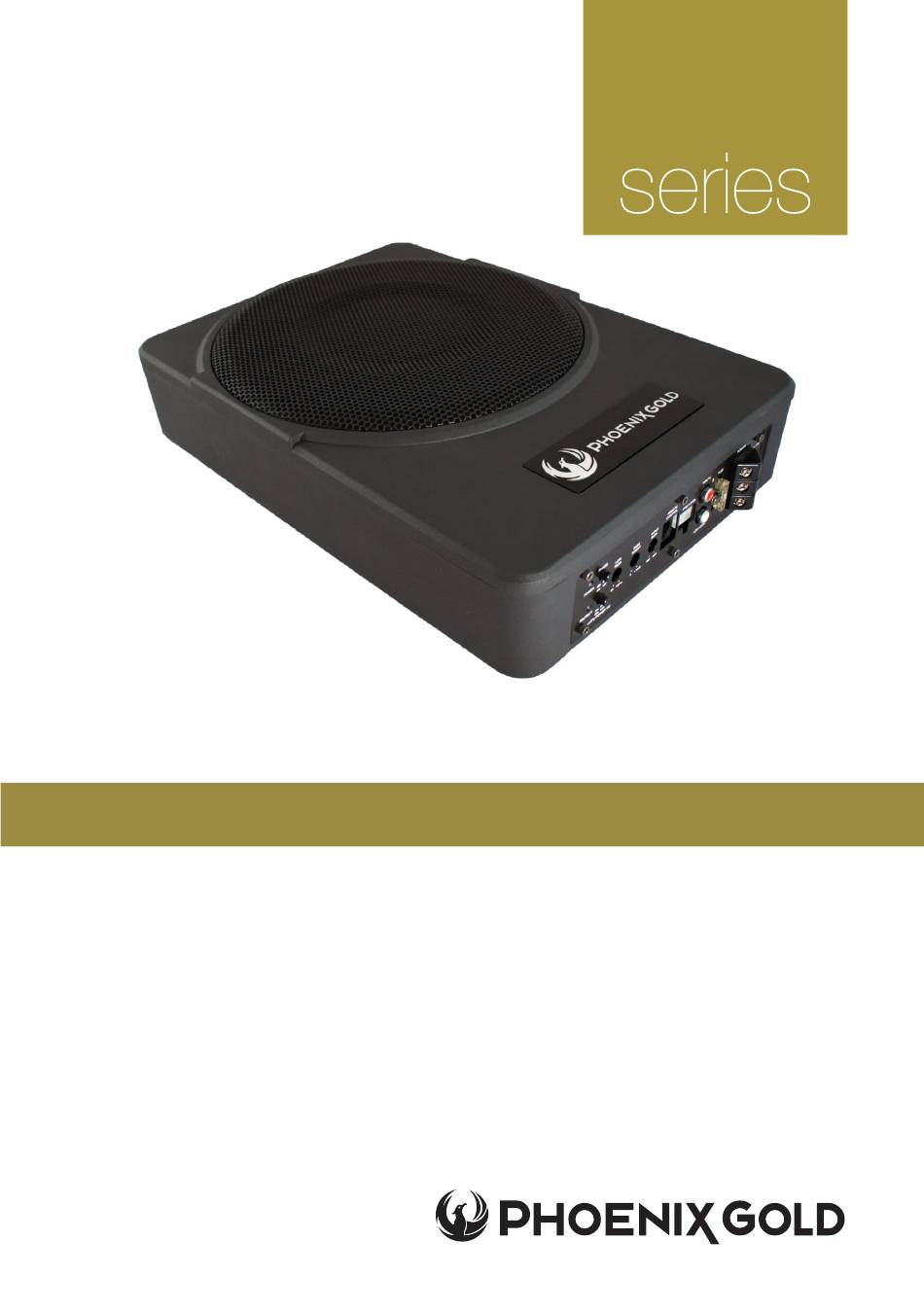

10" POWERFUL COMPACT ACTIVE SUBWOOFER
POWER RMS
THD
SIGNAL-TO-NOISE RATIO
FREQUENCY RESPONSE
INPUT SENSITIVITY (HIGH LEVEL)
INPUT SENSITIVITY (LOW LEVEL)
LOW PASS FILTER
BASS BOOST
SUBSONIC FILTER
FUSE RATING
DIMENSIONS - MM (L x W x H)
All specifications subject to change without notice.
ZR
400W MAX POWER
Model: ZR10P
SPECIFICATIONS
200W (400W Max)
20Hz - 150Hz
50Hz - 150Hz
340 x 245 x 78
<0.5%
>90dB
1.0V
300mV
0 to 12dB
20Hz
25A
Advertisement
Table of Contents
Related Manuals for Phoenix Gold ZR Series
Summary of Contents for Phoenix Gold ZR Series
- Page 1 10” POWERFUL COMPACT ACTIVE SUBWOOFER 400W MAX POWER Model: ZR10P SPECIFICATIONS POWER RMS 200W (400W Max) <0.5% SIGNAL-TO-NOISE RATIO >90dB FREQUENCY RESPONSE 20Hz - 150Hz INPUT SENSITIVITY (HIGH LEVEL) 1.0V INPUT SENSITIVITY (LOW LEVEL) 300mV LOW PASS FILTER 50Hz - 150Hz BASS BOOST 0 to 12dB SUBSONIC FILTER...
- Page 2 • Filtre subsonique à 30Hz • Aumento dei bassi variabile 0-12dB • Contrôle de phase • Dimensioni: 340mm x 245mm x 78mm • Amplification des basses variable 0-12dB • Dimensions - 340mm x 245mm x 78mm © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 3 2/3 full level. Slowly turn up the subwoofer input gain control until you hear a small amount of distortion. Then reduce the level until the distortion is completely gone. Level the control at this setting. © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 4 6-12 feet RCA cable. Always use a high quality cable. NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time! Fig.1 © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 5 NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time! Fig.2 REMOTE LEVEL CONTROL CONNECTION Fig.3 Install the remote control securely under the dash or in a similar location where using it wil not distract the driver. © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 6 Connect an empty fuse holder within 16” (40 cm) of the car battery, and run 8-gauge (or heavier) cable from this fuse to the amplifier location. Then connect the fuse holder to the “BATT+” (+12V) connection on the subwoofer rear panel. Fig.4 Fig.5 © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 7 Use only the best quality cables, and route them away from (static type) power cables. Engine noise • Check that the RCA grounds are not shorted to the vehicle chassis. (alternator • Check that the head unit is properly grounded. whine) © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 8 Phoenix Gold Product Warranty LIMITED WARRANTY ON AMPLIFIERS Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only.
