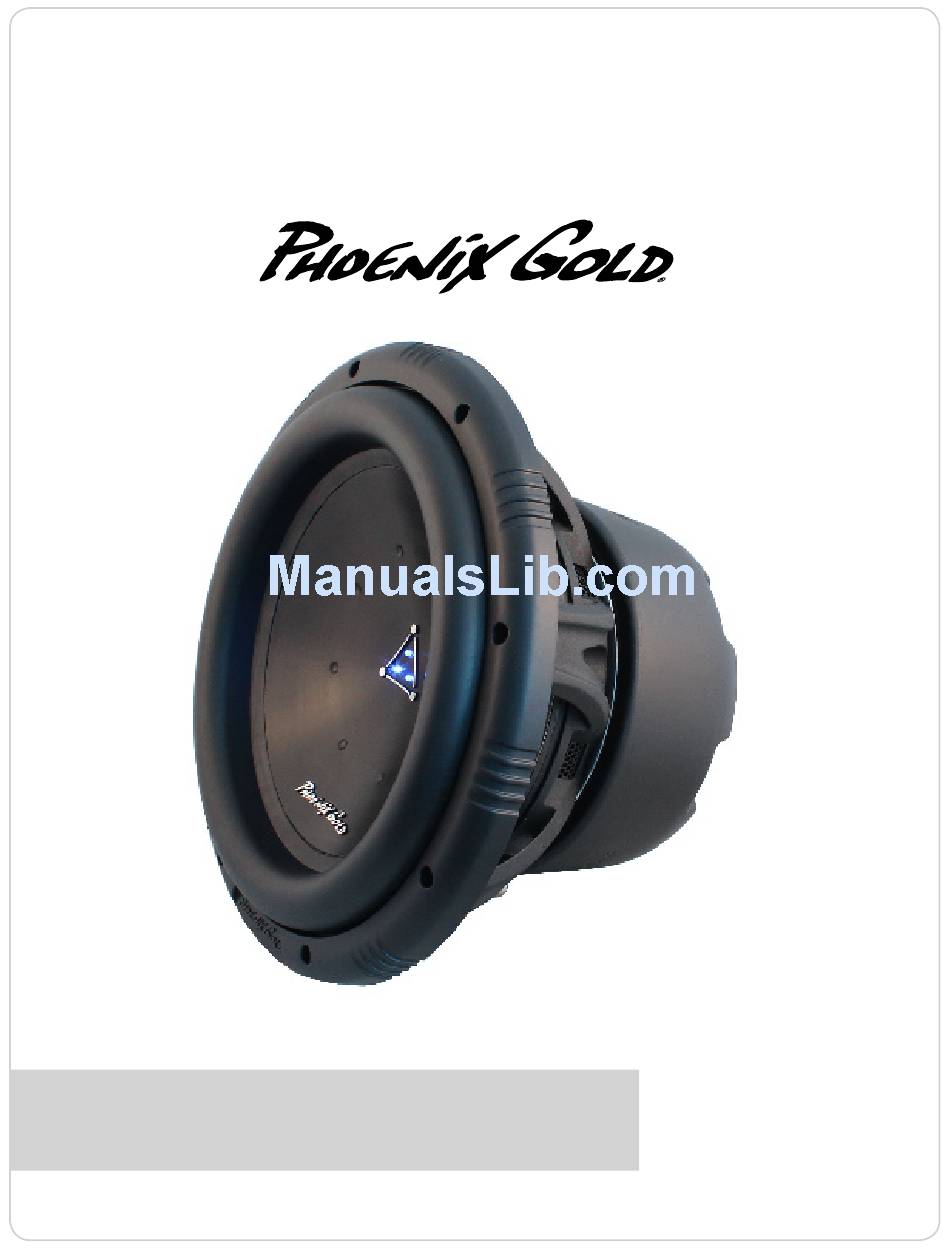

Page 1 ELITE 12d4/d2 ELITE. OWNER’S MANUAL...
Page 2 Subwoofer Owner’s Manual A few words ABOUT Design Thank you for purchasing the Phoenix Gold Elite.12 subwoofer. Featuring 60mm of peak to peak excursion, this monster’s 3.0” voice coil is engineered with a vented Titanium/Aluminum Hybrid former that is extremely light, rigid and capable of handling 1600w RMS. The dual spider system keeps the ultra long voice coil centered to eliminate any motor vibrations and losses.
Page 3 Subwoofer Owner’s Manual LED WIRING SMALL TERMINAL: LEDs (+12v and Ground Only) The Elite.12 has three terminals. The two larger terminals are connected to the voice coils. The small terminal is used to power the LEDs with a +12v and ground connection only. DO NOT CONNECT AN AMPLIFIER’S SPEAKER OUTPUT TO THE LED TERMINAL.
Page 4 LIMITED WARRANTY Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge.

Elite 12d4Elite 12d2
