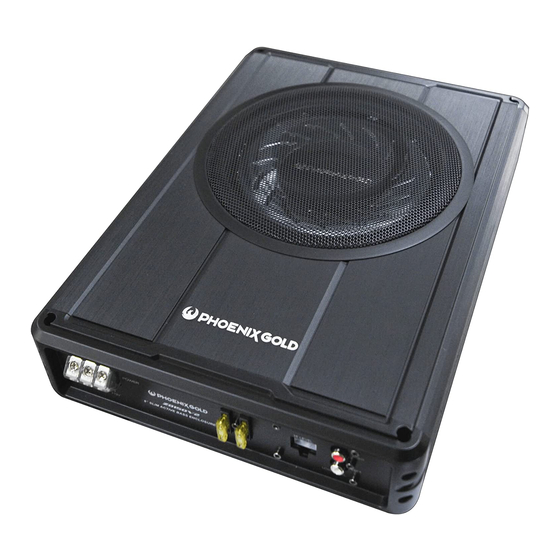

Model: Z8150V2 - Z10150
FEATURES
u MOSFET PWM (Pulse Width Modulated) Power Supply
u Soft turn-on circuit
u Variable input gain control
u Variable bass boost (0 to 18dB)
u RCA low level and high level inputs
u LED power and protection indicators
8" & 10" Slim
Active Bass
Enclosures
u Thermal, overload and speaker short protection
u Remote turn-on/turn-off circuit
u Variable low and subsonic crossovers
u Variable phase (0 to 180 degree)
u Auto Power On: ON/OFF
u Remote subwoofer level control
Advertisement
Table of Contents
Related Manuals for Phoenix Gold Z10150
Summarization of Contents
General Precautions
Shock Hazard Warning
Alerts users to dangerous high voltages within the unit, emphasizing not to open it.
Protection Circuitry Details
Explains the amplifier's protection circuitry that disables the unit during overload conditions.
Connecting The Subwoofer
Level Control Usage Warning
Advises against misusing the input level control as a volume control to prevent overload.
Front Panel Controls and Features
Remote Level Control Port
Port for connecting the remote control to adjust subwoofer volume independently.
Input Gain Control Adjustment
Procedure for setting the input gain to match the audio source, avoiding distortion.
Subsonic Filter Function
Filters out low-frequency noise and rumble to improve audio clarity.
Bass Boost Feature
Increases the sound level in the bass frequencies for enhanced impact.
Low Pass Filter Operation
Defines the frequency range the subwoofer amplifier receives, reproducing sound below set frequency.
Phase Adjustment
Helps compensate for time alignment issues in the audio system.
Auto Power On/Off
Automatically turns the subwoofer on/off based on signal detection for high-level inputs.
Power Status LED Indicator
Shows the unit's operational status; green for power, red for protection.
Rear Panel Controls and Features
Power Terminals Overview
Connection points for the main power supply to the amplifier.
Fuse Protection
The primary fuse for circuit protection; must be replaced with correct amperage.
Spare Fuse Location
Designated socket for storing a spare fuse for quick replacement.
High Level Inputs
Connects to speaker outputs from the head unit when RCA outputs are unavailable.
Low Level RCA Inputs
Recommended input method for audio signal when head unit has RCA outputs.
