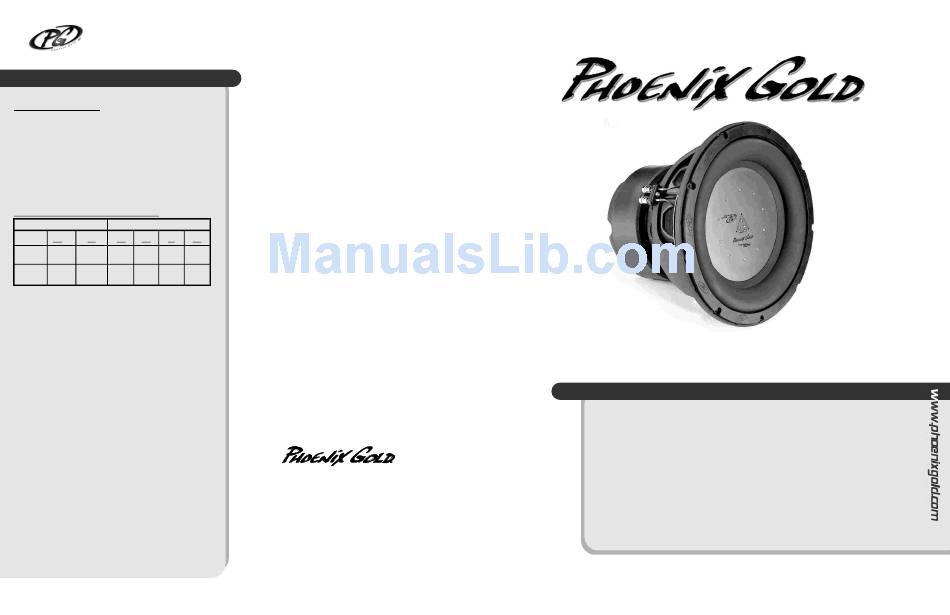

Titanium Elite 12d Subwoofer

SPECIFICATIONS

Titanium Elite 12d
Mounting Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . .10.5 in
Mounting Diameter . . . . . . . . . . . . . . . . . . . . . . . . .11.5 in
Overall Diameter . . . . . . . . . . . . . . . . . . . . . . . . . .13.25 in
Speaker Displacement: . . . . . . . . . . . . . . . . . . . . .0.2 cu ft
Frequency Response . . . . . . . . . . . . . . . . . .20Hz to 80Hz
Nominal Impedance per Coil . . . . . . . . . . . . . . . . .4 Ohms
Nominal Impedance per Driver . . . . . . . . . . . .2 or 8 Ohms
Peak Power Handling . . . . . . . . . . . . . . . . . . . .2000 Watts
RMS Power Handling . . . . . . . . . . . . . . . . . . . .1200 Watts
Enclosure Recommendations
Sealed Vented
Vb F3 Vb Vd Vl Fb
Musical 1.6 33Hz 2.75 4" 15" 25Hz
SPL 1.0 36Hz 2.25 4" 11" 31Hz
*Above enclosures include the driver displacement of .2 cu. ft.
T/S Parameters:
Fs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26.36 Hz
Re . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.42 Ohms
Qms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.94
Qes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.632
Qts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.56
Vas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34.1 liters
Mms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .371 grams
Cms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98 uM/Newton
Vas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34.1 Tesla-M
SPL (2.83V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86.18dB
Sd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .495 sq cm
Xmax (p-p) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50.5mm

LIMITED WARRANTY

Phoenix Gold International, Inc. (or "Phoenix Gold")
warrants its products against defects in materials and
workmanship for a limited period of time.
For a period of 90 days from date of original purchase, we will
repair or replace the product, at our option, without charge for
parts and labor. Customer must pay all parts and labor charges
after the limited warranty period expires. The limited warranty
period for factory refurbished products expires after ninety (90)
days from date of original purchase. This limited warranty
applies only to purchases from authorized Phoenix Gold
Electronics/Speaker retailers.
This limited warranty is extended only to the original
purchaser and is valid only to consumers in the United States.
Consumers are required to provide a copy of the original sales
invoice from an authorized Phoenix Gold dealer when making a
claim against this limited warranty.This limited warranty only
covers failures due to defects in materials or workmanship that
occur during normal use. It does not cover failures resulting
from accident, misuse, abuse, neglect, mishandling,
misapplication, alteration, faulty installation, modification,
service by anyone other than Phoenix Gold, or damage that is
attributable to Acts of God. It does not cover costs of
transportation to Phoenix Gold or damage in transit.
This warranty will become void if the serial number
identification has been wholly or partially removed, altered or
erased. Repair or replacement under the terms of this warranty
does not extend the terms of this warranty.
Should a product prove to be defective in workmanship or
material, the consumer's sole remedies will be repair or
replacement as provided under the terms of this warranty.
Under no circumstances shall Phoenix Gold be liable for loss or
damage, direct, consequential or incidental, arising out of the
use of or inability to use the product. There are no express
warranties other than described above.
PHOENIX GOLD INTERNATIONAL
9300 North Decatur
Portland, OR 97203
Tel: 503.286.9300
F ax: 503.978.3380
w w w.phoenixgold.com
8 1 0 0 . 0 2 5 2 B

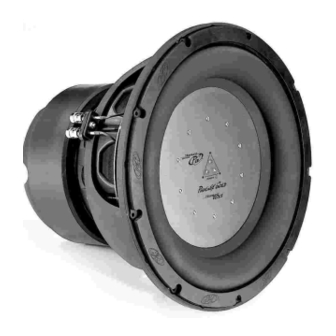

Titanium Elite 12d
High Excursion Subwoofer
FEATURES
* For complete manuals, technical tips, FAQ's, system diagrams and new product information visit us @
• Hybrid Flat Panel Aluminum Diaphragm with three Blue LEDs
• Custom Tooled Deep Cast Aluminum Basket
• User replaceable Cone, Coil and Spider Assembly
• T rue 3" of Peak-to-Peak Excursion
• Dual 4 ohm 3" Aluminum Four Layer High Temperature Voice Coil
• Black Anodized Aluminum Former
• Integrated Aluminum Cooling Ring
• Cast Aluminum Back Plate Heat Sink
• Large Roll Rubber Surround
• 1200 Watts Continuous Power Handling
• Dual 9" Custom Tooled Spiders
• Custom Tooled Vented Spider Spacer
• T riple Stack 235 Oz Magnet
