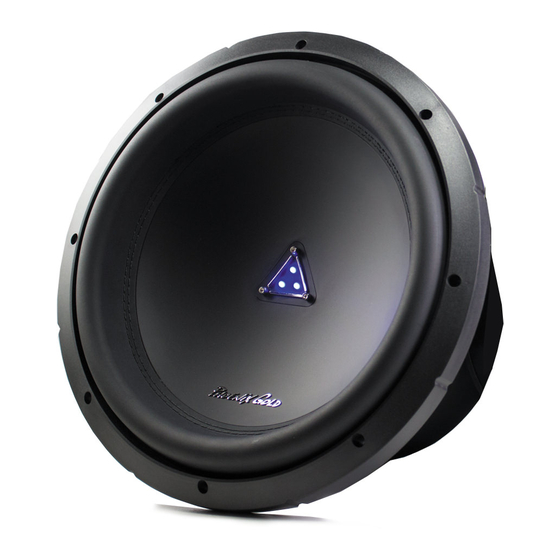

Phoenix Gold TI212D4 Manual

Subwoofer

Download this manual

Features

• One Piece Aluminum Plated Dustcap

• Long Throw Rubber Surround

• Flat Non-Linear Roll Spider

• High Temperature OFC Voice Coils

• Rigid Cast Aluminum Frame

• Nickel Plated 12 Gauge Speaker Terminals

• High Excursion Motor Design

Subwoofer Manual

Manuel de subwoofer

Models: Ti210d4, Ti212d4

Caractéristiques

• Pare-poussière monopièce plaqué aluminum

• Enceinte d'ambiance avec contour en caoutchouc de longue portée

• Anneau de centrage plat à excursion linéaire

• Bobines acoustiques en cuivre exempt d'oxygène à haute température

• Panier rigide en aluminum moulé

• Bornes d'enceinte nickelées de calibre 12

• Modèle de moteur à grand battement

Need help?

Do you have a question about the TI212D4 and is the answer not in the manual?

Page 1 • Panier rigide en aluminum moulé • Rigid Cast Aluminum Frame • Nickel Plated 12 Gauge Speaker Terminals • Bornes d’enceinte nickelées de calibre 12 • Modèle de moteur à grand battement • High Excursion Motor Design © 2011 Phoenix Gold • www.phoenixgold.com...
Page 2 ENCLOSURE INFORMATION Phoenix Gold subwoofers are overbuilt in virtually every way conceivable. It is important that the subwoofer’s enclosure is built to these same exacting standards. The enclosure must be constructed of at least .75 inch MDF. Screws or air staples are excellent construction fasteners when used with a strong bonding “yellow”...
Page 3 10.5 11.3 Mounting Depth 6in -150mm 6 1/2in - 164mm 4.35 5.38 0.51 0.46 Vas (liters) 36.3 Cms (uM/N) Mms (gms) 257.91 190.81 91dB 91dB Impedance Dual 4 Dual 4 *Specifications subject to change © 2011 Phoenix Gold • www.phoenixgold.com...
Page 4 LIMITED WARRANTY Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge.

Ti210d4
