Introduction

About the MTP SW6 Switcher

The Extron MTP SW6 is a 6-input, 1-output mini twisted pair
(MTP) switcher that is compatible with the entire line of Extron
MTP transmitters and receivers.
The Extron MTP transmitters and receivers are a system for
long-distance distribution of video and either audio or RS-232
communications. The MTPs transmit and receive over Extron's
Enhanced Skew-Free A/V UTP cable or over CAT 5, 5e, or 6
shielded twisted pair (STP), unshielded twisted pair (UTP), or
foil shielded twisted pair (FTP) cable.
The MTP switcher receives up to six sets of signals from
compatible MTP devices on RJ-45 connectors (figure 1-1). You
can select one input to output to a compatible MTP device on an
RJ-45 connector. The signal sets are comprised of high or low
resolution video signals (RGB, bi-level or tri-level component
video, S-video, or composite video) and can also include either
RS-232 serial signals or audio.
Control
System
M T
-2 32
RS RT
IN SE
E
SP AR UT
TP
Rx DI O OU
Tx R
O AU
M ON
U T AK L
T P E- PE
O U PR O N
O FF
T
P U
IN 6
5
Extron
4
MTP SW 6 3
W ER 2
PO
V AX
Mini Twisted Pair 12 A M
0.5 1
Switcher
UT ER
MP
CO IN
IN A
DIO 15 HD
AU P T
MT
IN
DI O
AU
R IN
TE
M PU
CO Extron
MTP T 15HD A AAP
Transmitter
Extron
MTP T 15HD A D
Transmitter Laptop Laptop

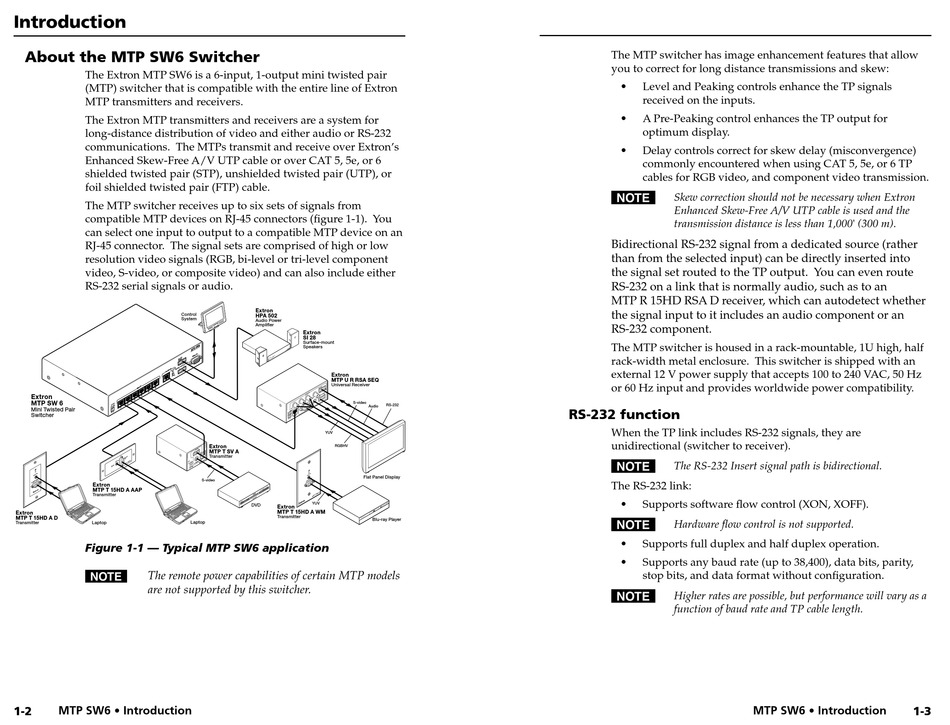

Figure 1-1 — Typical MTP SW6 application
The remote power capabilities of certain MTP models
N
are not supported by this switcher.
MTP SW6 • Introduction
1-2
Extron
HPA 502
Audio Power
Ampli er
Extron
SI 28
Surface-mount
W 6 Speakers
P S
IES
SER IFIER
HPA POWE R AMPL
AUDIO
O TE
R EM TECT
1 2 LIMITE L R/PRO
OVER SIGNA
TEMP
Extron
MTP U R RSA SEQ
Universal Receiver
S-video
Audio
YUV
Extron
RGBHV
MTP T SV A
Transmitter
IN
DIO Flat Panel Display
AU
S-video IN
UT ER
MP
CO
A
HD
T 15
M TP
YUV
DVD
Extron
MTP T 15HD A WM
Transmitter
OUTPUT
1080P VIDEO
HIGH DEFINIT ION
FULL
RS-232
Blu-ray Player
The MTP switcher has image enhancement features that allow
you to correct for long distance transmissions and skew:
• Level and Peaking controls enhance the TP signals
received on the inputs.
• A Pre-Peaking control enhances the TP output for
optimum display.
• Delay controls correct for skew delay (misconvergence)
commonly encountered when using CAT 5, 5e, or 6 TP
cables for RGB video, and component video transmission.
N Skew correction should not be necessary when Extron
Enhanced Skew-Free A/V UTP cable is used and the
transmission distance is less than 1,000' (300 m).
Bidirectional RS-232 signal from a dedicated source (rather
than from the selected input) can be directly inserted into
the signal set routed to the TP output. You can even route
RS-232 on a link that is normally audio, such as to an
MTP R 15HD RSA D receiver, which can autodetect whether
the signal input to it includes an audio component or an
RS-232 component.
The MTP switcher is housed in a rack-mountable, 1U high, half
rack-width metal enclosure. This switcher is shipped with an
external 12 V power supply that accepts 100 to 240 VAC, 50 Hz
or 60 Hz input and provides worldwide power compatibility.

RS-232 function

When the TP link includes RS-232 signals, they are
unidirectional (switcher to receiver).
N The RS-232 Insert signal path is bidirectional.
The RS-232 link:
• Supports software flow control (XON, XOFF).
N Hardware flow control is not supported.
• Supports full duplex and half duplex operation.
• Supports any baud rate (up to 38,400), data bits, parity,
stop bits, and data format without configuration.
Higher rates are possible, but performance will vary as a
N
function of baud rate and TP cable length.
MTP SW6 • Introduction 1-3
