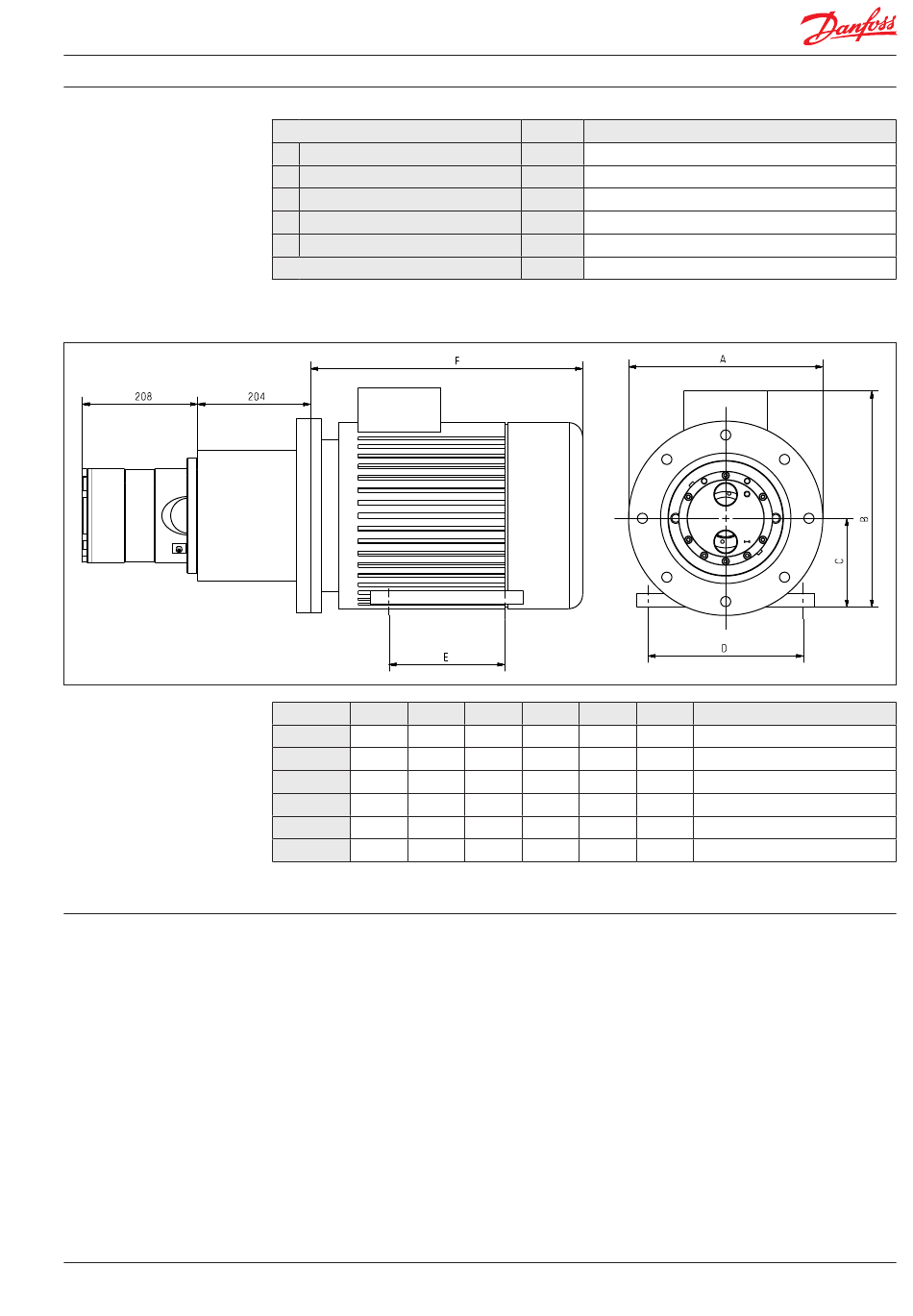

Data sheet APP pumps - APP 5.1-10.2
Description
C Bleeding
D Parallel key, DIN 6885
I Inlet connection
O Outlet connection
Pump mounting flange
10.2 Complete unit
Pump A (mm) B (mm)
APP 5.1
350 437
APP 6.5 350 437
APP 7.2 350 437
APP 8.2 350 473
APP 10.2
350 473
APP 10.2 400 513
For inlet and outlet connections data, see "Accessories catalogue" (521B0903).
521B0851 / DKCFN.PD.013.FB3.02 / 10.2012 180R9263 / IOM APP 5.1-10.2 Appendices - v02 / 01.2013
APP 5.1 and APP 10.2
M6, Hexagon AF = 5 mm
mm
10 × 8 × 45
inches 0.39 × 0.31 × 1.77
M42 x 1.5 x 13 mm (0.51 inch) depth
M42 x 1.5 x 13 mm (0.51 inch) depth
125 A2
C (mm) D (mm) E (mm) F (mm)
160 254 210 498
160 254 254 542
160 254 254 542
180 279 241 578
180 279 279 616
200 318 305 659
IEC Electric motor
11 kW, HUC2 160 M-4
15 kW, HUC2 160 L-4
15 kW, HUC2 160 L-4
18.5 kW, HUC2 180 M-4
22 kW, HUC2 180 L-4
30 kW, HUC2 200 L-4
