Mighty Mule GTO RB709U-NB Owner's Manual

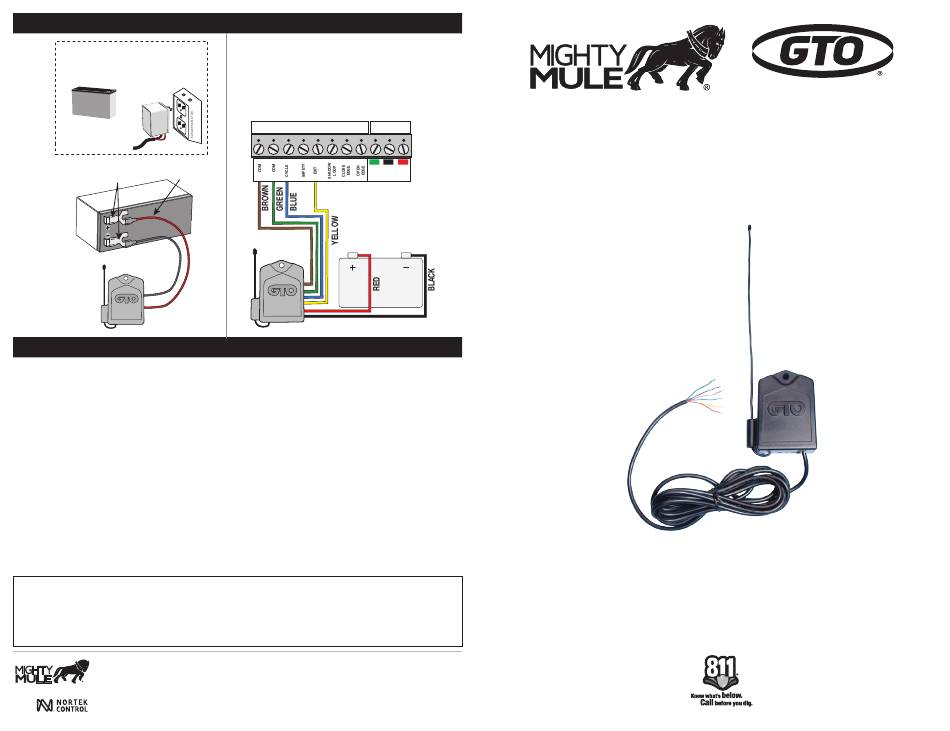

Wiring Receiver to Operators with R4211 and R5211 Control Boards

8 to 24 VOLT AC/DC
POWER SUPPLY or BATTERY
RED WIRE to POSITIVE
BLACK WIRE to NEGATIVE
BATTERY or
TRANSFORMER
(RB570 or R4215)
Battery Cable
Double Spade Connectors
RED (+)
included with SENSOR

Specifications

Compatible transmitter:
• GTO gray narrow band transmitters (318MHz)
Power input:
• 8-24 V ac/dc, 10ma standby, 40ma activated (Red & Black wires).
Outputs: 2 channels pulsed outputs
• 2 channels dry-contact normally open relay outputs.
• Channel 1: Blue (N/O Contact) & Green (COM) wires.
• Channel 2: Yellow (N/O Contact) & Brown (COM) wires.
• Activated for .5 seconds when the correct transmitter code is received.
• Relay switching maximum rating: 24Vac/dc @ 1A.
• Operating Range 50 to 100 feet (15.2 to 30.5 m)
Indoor/Outdoor compatible.
Mount receiver at least 3 feet from AC power source.
FCC Regulation
This device complies with FCC rules Part 15. Operation is subject to the following conditions:
1. This device may not cause harmful interference.
2. This device must accept an interference that may cause undesired operation.
Transmitter distance may vary due to circumstances beyond our control. NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
