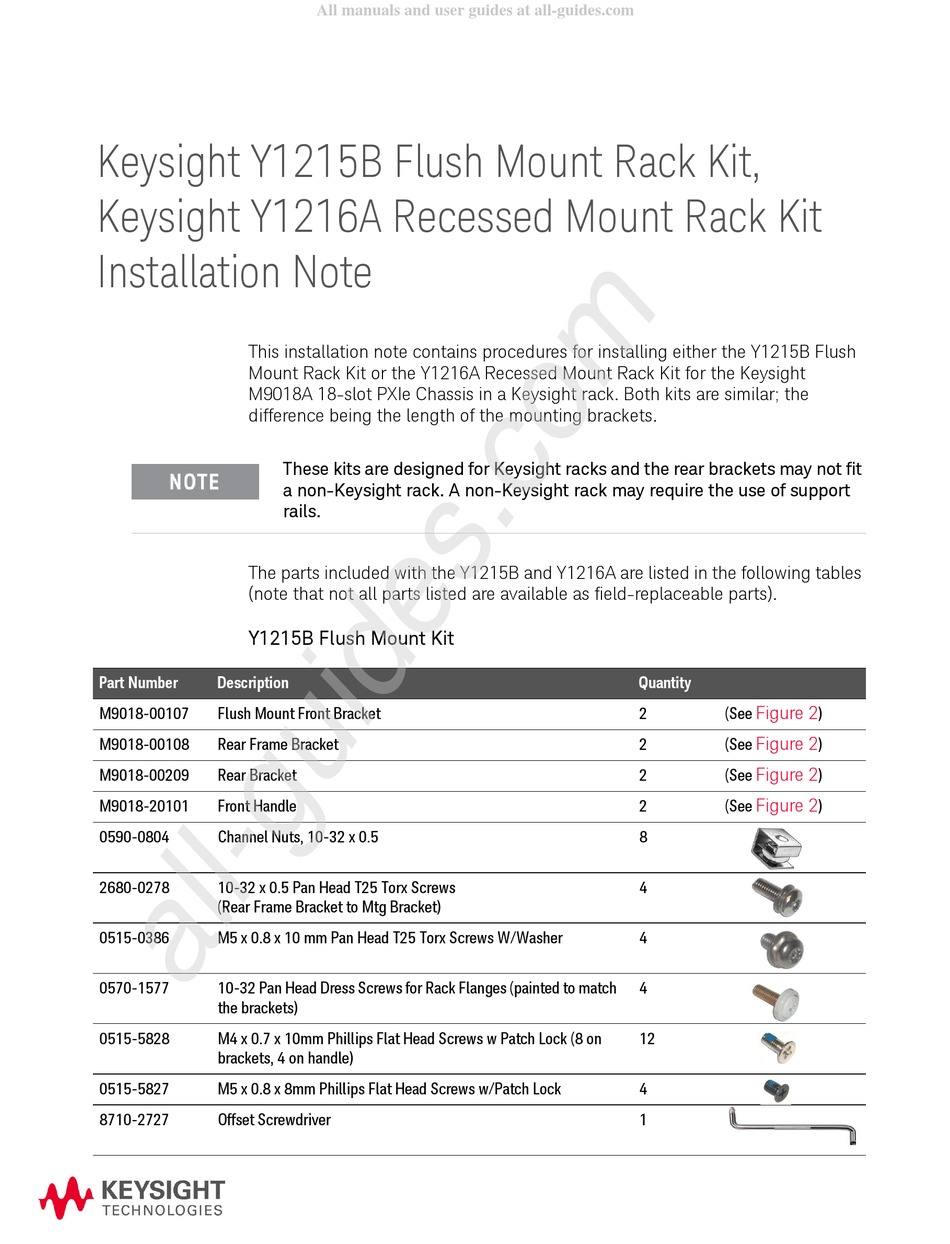

Keysight Y1215B Flush Mount Rack Kit,
Keysight Y1216A Recessed Mount Rack Kit
Installation Note
This installation note contains procedures for installing either the Y1215B Flush
Mount Rack Kit or the Y1216A Recessed Mount Rack Kit for the Keysight
M9018A 18-slot PXIe Chassis in a Keysight rack. Both kits are similar; the
difference being the length of the mounting brackets.
The parts included with the Y1215B and Y1216A are listed in the following tables
(note that not all parts listed are available as field-replaceable parts).
Y1215B Flush Mount Kit
Part Number Description
M9018-00107 Flush Mount Front Bracket
M9018-00108 Rear Frame Bracket
M9018-00209 Rear Bracket
M9018-20101 Front Handle
0590-0804 Channel Nuts, 10-32 x 0.5
2680-0278 10-32 x 0.5 Pan Head T25 Torx Screws
(Rear Frame Bracket to Mtg Bracket)
0515-0386 M5 x 0.8 x 10 mm Pan Head T25 Torx Screws W/Washer
0570-1577 10-32 Pan Head Dress Screws for Rack Flanges (painted to match
the brackets)
0515-5828 M4 x 0.7 x 10mm Phillips Flat Head Screws w Patch Lock (8 on
brackets, 4 on handle)
0515-5827 M5 x 0.8 x 8mm Phillips Flat Head Screws w/Patch Lock
8710-2727 Offset Screwdriver
All manuals and user guides at all-guides.com
These kits are designed for Keysight racks and the rear brackets may not fit
a non-Keysight rack. A non-Keysight rack may require the use of support
rails.
Quantity
Figure 2
2 (See )
Figure 2
2 (See )
Figure 2
2 (See )
Figure 2
2 (See )
8
4
4
4
12
4
1
