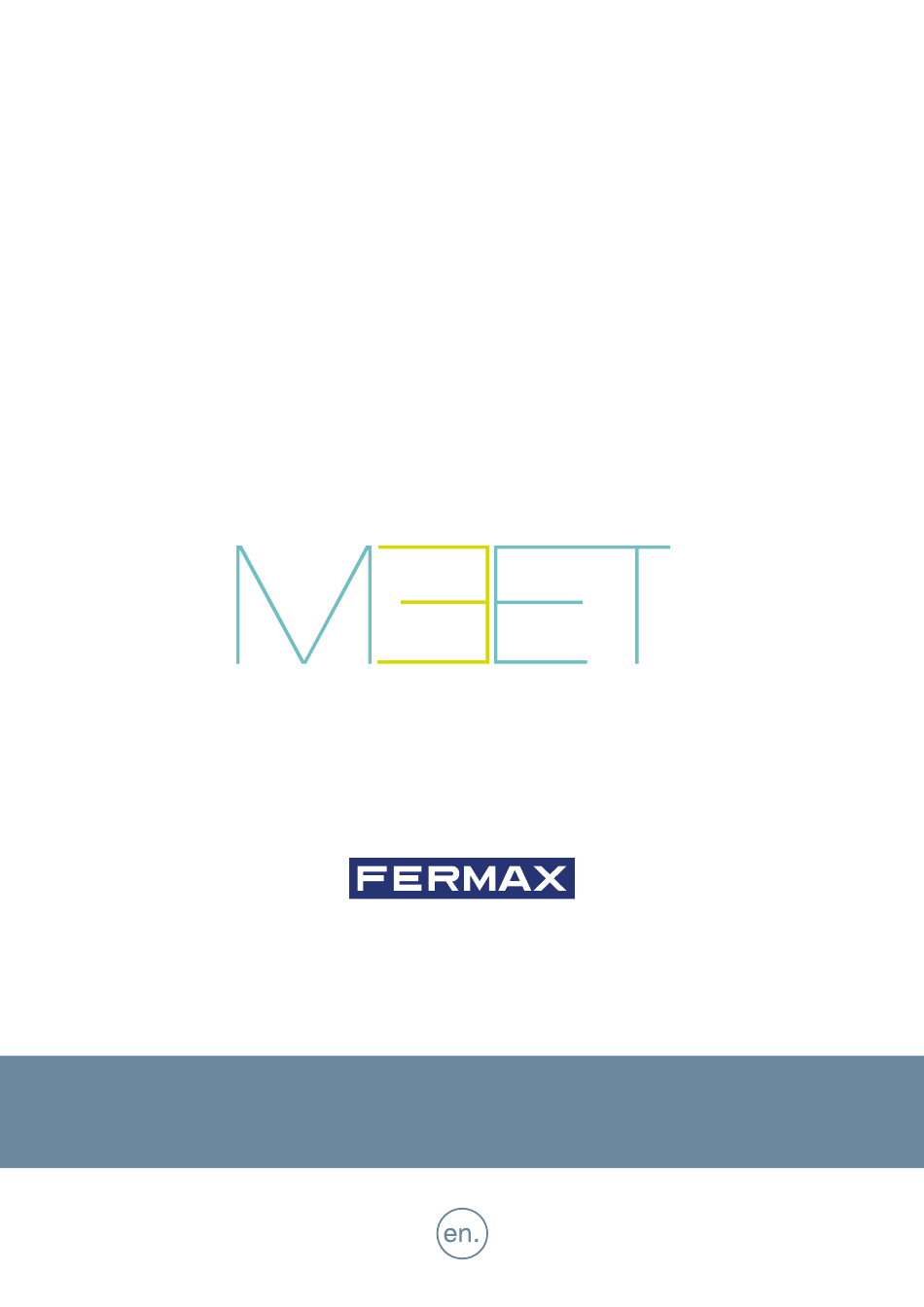

  • Page 1 KIN PANEL INSTALLER´S MANUAL...
  • Page 2 Technical publication for information purposes edited by FERMAX ELECTRÓNICA S.A.U. FERMAX ELECTRÓNICA applies a continuous improvement policy, therefore it reserves the right to modify the contents of this document, as well as the product features hereof at any time and without prior notice. Any modification will be reflected in subsequent editions of this document.
  • Page 3 4.5. Diagram Installation of the 4 RELAY MODULE REF. 1491 4.6. Diagram installation of the GUEST CODE Module Ref. 1494 4.7. Diagram installation of the lift control system 5. TECHNICAL SPECIFICATIONS 6. ANNEX 6.1. Firmware updates 6.2. Regulations KIN PANEL...

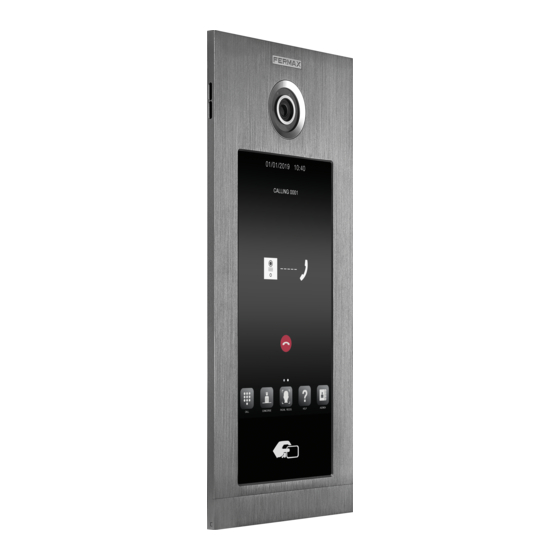

  • Page 4 DESCRIPTION This document is the Installer Manual for KIN PANEL REF. 1445, version V 03.10. It includes installation and programming instructions. High definition camera 1,2 Mpx: Lighting for night vision with LEDs Lateral speaker (at the edge) Network status (it turns on if no LAN is available)
  • Page 5 WEB BROWSER PROGRAMMING For programming of the KIN panel, access is required through a PC via a web browser. Preferably use Chrome browser. The PC must be connected to the same LAN as the panel and configured with an IP address in the same range.
  • Page 6 2.2. GENERAL The section GENERAL allows the configuration of the identification parameters of the KIN panel within the installation. It allows time-date configuration. Button for saving options above of it. Button for saving date/time options only. TYPE: Select the identification parameters of the panel. There are some other parameters related, depending...
  • Page 7 Default option is ENGLISH. Refresh the webpage after changing the language. PANEL VOLUME: Select the desired value between 1 and 5. Default option is 4. The conversation volume is common for uplink and downlink. BACKGROUND: Select dark colour or light colour. KIN PANEL...

  • Page 8: Network Configuration

    If the installation has no FERMAX MANAGEMENT SOFTWARE the installer can set date, time and time zone manually. Do not use the GMT (TIME ZONE) adjustament in this case. GMT is usable only when the time is automaticaly taken form internet or FERMAX MANAGEMENT SOFTWARE.
  • Page 9 If a device has an IP address already assigned to another device on the network, an “IP CONFLICT” prompt will appear, along with the MAC of the conflicting device. Both devices will not work properly until this issue is resolved. 2.4. ACCESS This section allows some programmings related to the access control functionality of the panel. KIN PANEL...
  • Page 10 If there are not more cards to program, after two minutes the panel will exit program mode. There is not possible to deregister cards programmed by this method. Use the FERMAX MEET MANAGEMENT SOFTWARE for full operational possibilities.

  • Page 11: Face Recognition

    V01.05 is required for programming and managing the photos of the authorized faces if the model is 5.0. The FERMAX MANAGEMENT SOFTWARE V01.06 is required for programming and managing the photos of the authorized faces if the model is 6.0.
  • Page 12 2.8. SIP This option allows to configure KIN panel to use SIP functionalities, such us call divert to smartphone using the FERMAX MEET ME APP or allow the panel to operate with a third-party SIP systems or terminals using SIP protocol instead of FERMAX MEET protocol.
  • Page 13 CONVERSATION, RING TIME: No function. Configuration for SIP server integration Configure the SIP parameters as explained below, for the cases where the KIN panel works as an extension of a SIP server. Contact with the SIP server administrator to get some of the information requiered in this section.
  • Page 14 This option allows to generate calls to smartphone devices in the cases where it is not a MEET monitor associated in the installation. A FERMAX MEET ME licence Ref. 1496 is required for each apartment The call can be received in 8 smartphones simultaneously.
  • Page 15 • Apartment 170 generates a call to the monitor IP 192.168.1.190 in the same installation. • Apartment 171 generates a call to the smartphone with FERMAX MEET ME licence 0103283. • Apartment 645 generates a call to the monitor IP 192.168.1.195 in the same installation.
  • Page 16 WHITE LIST: The apartment can be called if the corresponding white list of apartment is Y (YES), otherwise, the apartment cannot be called. DIRECTORY: KIN panel allows to use a directory for calling the tenants. Visitors can select the tenant’s name from this directory and call directly without knowing the apartment number.
  • Page 17 Enter the current code, the new pin and confirm it. The new password can have alphanumeric characters and has no limit on its length. Finally, select SAVE. KIN PANEL...
  • Page 18 KIN. 2.13. RESET Use this functionality to remotely reset the KIN panel, or to return it to factory settings. In both cases it will ask for confirmation.

  • Page 19: Language [English]

    REBOOT DEVICE: The panel will automatically turn off and start up but retain all the programming parameters it had previously. When resetting, the device will lose connection with the PC. Refresh the website after about 60 seconds to resume the connection. KIN PANEL...

  • Page 20: Operation

    OPERATION The screen of the KIN PANEL is interactive, so its operation depends on the call process or selected function. When someone stands in front of the panel or touches anywhere in the screen, a standby interface is shown. This standby interface can be a keypad for calling or some HELP information, or directory, depending on the programming settings.
  • Page 21 Then, if nobody is in front of the panel, it turns off after 3 minutes for saving energy. NOTE: The screensaver can be customized, so it is possible that it differs from the one in the image above. KIN PANEL...

  • Page 22: Icon Functions

    NOTE: The HELP screen can be customized, so it is possible that it differs from the one in the image above. CALL Icon It shows the calling screen, it can be a numerical keypad, an alphanumerical keypad or a single apartment calling button. Numerical keypad 1 WAY panel Alphanumerical keypad KIN PANEL...
  • Page 23 Tapping this button, the face recognition interface will appear. Users should stay for a few seconds in front of the panel. If the user´s face has been programmed and the system recognises him, the door will open. NOTE: Face recognition requires some previous programming by means of the FERMAX MEET MANAGEMENT Software. KIN PANEL...
  • Page 24 The panel shall have installed a GUEST CODE MODULE Ref.1494, as explained in the INSTALLATION section. A third-party Access Control System is required. Users shall enter the valid GUEST CODE followed by “#” to open the door. KIN PANEL...
  • Page 25 The panel admits up to 8 differents ACCESS PIN, that must be progra- mmed by the installer. See WEB BROWSER PROGRAMMING section for further details. Users shall enter the valid ACCESS PIN followed by “KEY” button to open the door. KIN PANEL...

  • Page 26: Installation

    Move the slider of the panel and fix the two screws. When installing, pay attention to the reservation of the 2 cm space around the door to move the slide cover. KIN PANEL...
  • Page 27 4.3. CONNECTORS The KIN panel is connected to the installation by means of connectors: ethernet for LAN connection and MOLEX type connectors for other connections (power supply, RS-485, etc.). A bag containing the corresponding female connectors with their cables comes with the panel.

  • Page 28: Basic Diagrams

    Use a power supply adapted to the electric lock voltage & current Basic diagram using no PoE switch Supply the panel by means of a FERMAX Ref. 4813 (12 Vdc 2A) power supply Use a power supply adapted to the electric lock voltage &...
  • Page 29 4.7 DIAGRAM INSTALLATION OF THE LIFT CONTROL SYSTEM REF. 9545 This installation has to be performed in the PANEL nº 1 of the corresponding block only. KIN PANEL...

  • Page 30: Technical Specifications

    Operating temperature -40~70 ºC Relative humidity 20%~80%, without condensation (*) In cold places below -20ºC use a 12 Vdc 2A power supply instead of PoE. (**) An internal heating resistant is connected automatically when temperature is below -20ºC KIN PANEL...

  • Page 31: Firmware Updates

    Contact the FERMAX Technical Department if you wish to receive the corresponding update file. The firmware update is performed via the FERMAX MEET System Upgrading Tool V01.00.exe. The procedure for updating the firmware with the corresponding update file is as follows: 1.
  • Page 32 Avd. Tres Cruces, 133 46017 Valencia Spain For more information, visit www.fermax.com Contact: tec@fermax.com...
