GRUNDFOS INSTRUCTIONS

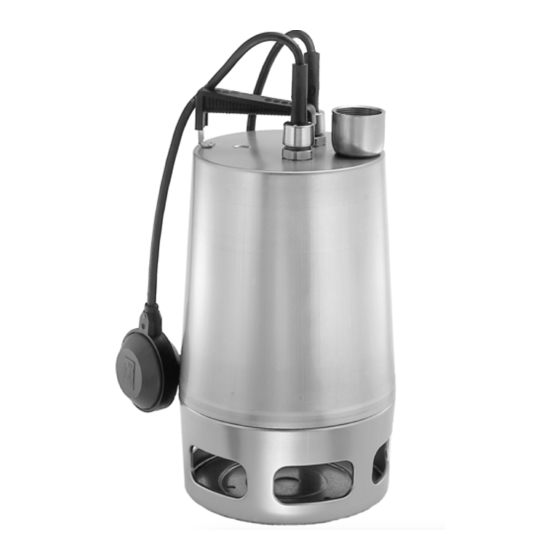

Unilift AP12, AP35, AP50
Control box
Installation and operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unilift AP12 and is the answer not in the manual?

Questions and answers

Related Manuals for Grundfos Unilift AP12

Summary of Contents for Grundfos Unilift AP12

  • Page 1 GRUNDFOS INSTRUCTIONS Unilift AP12, AP35, AP50 Control box Installation and operating instructions...
  • Page 3 Unilift AP12, AP35, AP50 Control box Installation and operating instructions Montage- und Betriebsanleitung Notice d'installation et d'entretien Istruzioni di installazione e funzionamento Instrucciones de instalación y funcionamiento Instruções de instalação e funcionamento Οδηγίες εγκατάστασης και λειτουργίας Installatie- en bedieningsinstructies Monterings- och driftsinstruktion Asennus- ja käyttöohjeet...
  • Page 4 GRUNDFOS INSTRUCTIONS UNILIFT AP, APB and APG Control box Installation and operating instructions UNILIFT APG UNILIFT AP12,AP35,AP50 Installation and operating instructions Installation and operating instructions (all available languages) (all available languages) http://net.grundfos.com/qr/i/92662011 http://net.grundfos.com/qr/i/96011045 UNILIFT AP35B, AP50B Installation and operating instructions (all available languages) http://net.grundfos.com/qr/i/96004693...
  • Page 6 UNILIFT AP, APB and APG Control box English (GB) Installation and operating instructions ........5 Български...
  • Page 7 Português (PT) Instruções de instalação e funcionamento ......90 Română (RO) Instrucţiuni de instalare şi utilizare .

  • Page 8: Table Of Contents

    1.1 Hazard statements Table of contents The symbols and hazard statements below may appear in Grundfos installation and operating General information ... . . 5 instructions, safety instructions and service Hazard statements .

  • Page 9: Product Introduction

    Nameplate WARNING Electric shock There are three types of cable: Death or serious personal injury 1) UNILIFT AP12, AP35 and AP50 ‐ Power cables without a plug must be 2) UNILIFT AP35B and AP50B connected to a supply disconnecting 3) UNILIFT APG.

  • Page 10: Wiring Diagram

    4.1 Wiring diagram WARNING Electric shock Death or serious personal injury ‐ Switch off the power supply before you start any work on the product. The user or the installer is responsible for correct earthing and protection according to local regulations. L1 L2 Block diagram for level control L1 L2...

  • Page 11: Startup Of The Product

    5.2 Resetting the thermal relay If the thermal relay has tripped, it can be reset by briefly pressing the Stop/Reset button. • If the float switch contact is open, the thermal relay is cut in, but the pump remains stopped. •...

  • Page 12: Disposing Of The Product

    1. Use the public or private waste collection service. 2. If this is not possible, contact the nearest Grundfos company or service workshop. The crossed-out wheelie bin symbol on a product means that it must be disposed of separately from household waste.
