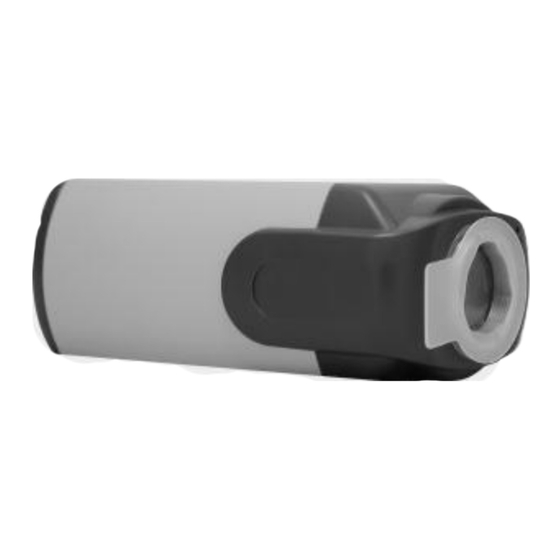

Ernitec SX Box Camera
User's Manual
Ver1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX Series and is the answer not in the manual?

Questions and answers

Related Manuals for ERNITEC SX Series

Summary of Contents for ERNITEC SX Series

  • Page 1 All manuals and user guides at all-guides.com Ernitec SX Box Camera User’s Manual Ver1.5...
  • Page 2 All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual Caution and Preventive Tips  Handle with care, do not drop the unit  Mount the unit in an equipment rack or place it on a solid, stable surface ...
  • Page 3 All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual Important Information Before proceeding, please read and observe all instructions and warnings in this manual. Retain this manual with the original bill of sale for future reference and, if necessary, warranty service.

  • Page 4: Table Of Contents

    All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual Table of Contents Overview ..........................4 Features ........................4 Package Contents ....................... 5 Dimensions ........................5 Connectors ........................6 Camera Cabling ........................7 Connect Power ......................7 Connect Ethernet Cable....................

  • Page 5: Overview

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual Overview Supported with both H.264 and MJPEG standard, the product series not only features in superior Full HD resolution for real-time streaming at 25/30 fps, but also supplies D1 Real-time streaming.

  • Page 6: Package Contents

    All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual Package Contents Please check the package contains the following items listed below. Full HD Multiple Streams Back focus adjuster IP Camera (bundled software and Quick Guide documentation) Dimensions The IP Camera’s dimensions are shown below.

  • Page 7: Connectors

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual Connectors The diagram below shows the IP Camera’s reset button and various connectors. Definition for each connector will be given as follows. DC 12V/ AC 24V/ PoE...

  • Page 8: Camera Cabling

    All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual Camera Cabling Please follow the instructions below to complete IP Camera installation. Connect Power Please refer to Section: Connectors. Alternatively, connect the Ethernet cable to the camera’s PoE port and plug the other end of the cable into a PoE switch.

  • Page 9: Lens Mounting

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual Lens Mounting If use C-Mount lens, after removing the camera’s plastic cover, users need to mount the C/CS mount adapter to the camera. Then attach the lens onto the C/CS mount adapter, as the illustrations shown below.

  • Page 10: System Requirements

    All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual System Requirements To perform the IP Camera via web browser, please ensure your PC is in good network connection, and meet system requirements as described below. Items System Requirement 1.

  • Page 11: Access Camera

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual Access Camera For initial access to the IP Camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD.
  • Page 12 All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual Additionally, users can change the IP Camera’s network property, either DHCP or Static IP, directly in the device finding list. Refer to the following section for changing the IP Camera’s network property.
  • Page 13 All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual The download procedure of DC Viewer software is specified as follows. Step 1: In the DC Viewer installation window, click on <Next> to start installation. Step 2: The status bar will show the installation progress. After the installation is completed, click on <Finish>...

  • Page 14: Setup Video Resolution

    All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual Setup Video Resolution Users can setup Video Resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format.

  • Page 15: Configuration File Export/ Import

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual Configuration File Export/ Import To export/ import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance.

  • Page 16: Appendix A: Technical Specifications

    All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual Appendix A: Technical Specifications Camera 2M Real time 1/2.7” Progressive CMOS Image Sensor Effective Pixels 1920(H) x 1080(V) 0.2 lux (Color) Minimum Illumination 0.02 lux (B/W) White Balance...
  • Page 17 All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual General Operating Temperature -10°C ~ 50°C (14°F ~ 122°F) Humidity 10% ~ 90%, No Condensation Dimension 125 x 82 x 52 mm (L x W x H) w/o Lens Weight 330 g (0.73 lb)
  • Page 18 All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual Camera Image Sensor 3M Sony Progressive CMOS 5M Progressive CMOS Effective Pixels 2048(H) x 1536(V) 2592(H) x 1944(V) 0.2 lux (Color) Minimum Illumination 0.02 lux (B/W) White Balance...
  • Page 19 All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual General Operating Temperature -10°C ~ 50°C (14°F ~ 122°F) Humidity 10% ~ 90%, No Condensation Dimension 125 x 82 x 52 mm (L x W x H) w/o Lens Weight 330 g (0.73 lb)

  • Page 20: Appendix B: Delete The Existing Dc Viewer

    All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual Appendix B: Delete the Existing DC Viewer For users who have installed the DC Viewer in the PC previously, please first delete the existing DC Viewer from the PC before accessing to this IP Camera.

  • Page 21: Appendix C: Setup Internet Security

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual Appendix C: Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings.

  • Page 22: Appendix D: Back Focus Adjustment

    All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual Appendix D: Back Focus Adjustment When to adjust back focus Back Focus refers to the distance from the rear lens element to the camera focal plane. In most cases, it is required to adjust back focus only when the camera’s lens cannot hold...

  • Page 23: Appendix D: Video Resolution

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual Appendix D: Video Resolution 2M- Quad Streams H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (15 fps)
  • Page 24 All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (30 fps) 1280 x 720 (15 fps) 640 x 480 (30 fps)
  • Page 25 All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (30 fps) 1280 x 720 (15 fps) 640 x 480 (30 fps)
  • Page 26 All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 640 x 480 (30 fps) 352 x 240 (30 fps) 1024 x 768 (30 fps)

  • Page 27: Triple Streams

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual 2M- Triple Streams H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 800 x 600 (15 fps) 720 x 480 (15 fps) 1280 x 1024 (15 fps)
  • Page 28 All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 1280 x 720 (30 fps) 352 x 240 (30 fps) 1024 x 768 (30 fps)

  • Page 29: Dual Streams

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual 2M- Dual Streams H.264-1 + H.264-2 / MJPEG H.264-1 H.264-2 / MJPEG BNC SUPPORT 1280 x 1024 (15 fps) 1280 x 720 (30 fps) 1024 x 768 (30 fps)

  • Page 30: Real Time / 3M / 5M- Quad Streams

    All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual 2M Real time / 3M / 5M- Quad Streams H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (10 fps)
  • Page 31 All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (15 fps) 1280 x 720 (15 fps) 640 x 480 (15 fps)
  • Page 32 All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (30 fps) 1280 x 720 (15 fps) 640 x 480 (30 fps)
  • Page 33 All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 800 x 600 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps)
  • Page 34 All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 800 x 600 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps)

  • Page 35: Real Time / 3M / 5M- Triple Streams

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual 2M Real time / 3M / 5M- Triple Streams H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 720 x 480 (10 fps)
  • Page 36 All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 1280 x 720 (30 fps) 1280 x 1024 (15 fps) 800 x 600 (30 fps)
  • Page 37 All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 800 x 600 (30 fps) 720 x 480 (30 fps) 800 x 600 (30 fps)

  • Page 38: Real Time / 3M / 5M- Dual Streams

    All manuals and user guides at all-guides.com Ernitec SX Box cameraSeries User’s Manual 2M Real time / 3M / 5M- Dual Streams H.264-1 + H.264-2 / MJPEG H.264-1 H.264-2 / MJPEG BNC SUPPORT 720 x 480 (10 fps) 2952 x 1944 (10 fps)

  • Page 39: Real Time / 3M / 5M- Single Stream

    All manuals and user guides at all-guides.com Ernitec SX Box Camera Series User’s Manual 2M Real time / 3M / 5M- Single Stream H.264 Only BNC SUPPORT 2592 x 1944 (10 fps)* 2048 x 1536 (15 fps)** 1920 x 1080 (30 fps) Low Latency*** √...
