Network Bullet Camera
Quick Start Guide
MVCLOUD-201

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MicroView MVCLOUD-201 and is the answer not in the manual?

Questions and answers

Related Manuals for ERNITEC MicroView MVCLOUD-201

Summary of Contents for ERNITEC MicroView MVCLOUD-201

  • Page 1 Network Bullet Camera Quick Start Guide MVCLOUD-201...
  • Page 2 Network Ernitec Cloud Bullet Camera·Quick Start Guide About this Manual This Manual is applicable to JCAM-201 Network Ernitec Cloud Camera. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information here in after are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.

  • Page 3: Regulatory Information

    Network Ernitec Cloud Bullet Camera·Quick Start Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Safety Instruction

    Network Ernitec Cloud Bullet Camera·Quick Start Guide 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 5 Network Ernitec Cloud Bullet Camera·Quick Start Guide Warnings Follow these Cautions Follow these safeguards to prevent precautions to prevent serious injury or death. potential injury or material damage. Warnings ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.
  • Page 6 Network Ernitec Cloud Bullet Camera·Quick Start Guide ● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Cautions ● Make sure the power supply voltage is correct before using the camera. ● Do not drop the camera or subject it to physical shock.
  • Page 7 Network Ernitec Cloud Bullet Camera·Quick Start Guide ● While in delivery, the camera shall be packed in its original packing, or packing of the same texture. ● Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly according to their average enduring time.

  • Page 8: Table Of Contents

    4.1 Register Camera from dashboard for professionals ..22 4.1.1 Register Camera ..........22 4.1.2 Unregister Camera ..........24 4.2 Register Camera from the web site Ernitec-Cloud ..25 5 Download “Ernitec Cloud” App on IOS/Android ......26 6 Wifi Network Setup ..............29 6.1 With WPS button ............

  • Page 9: Appearance Description

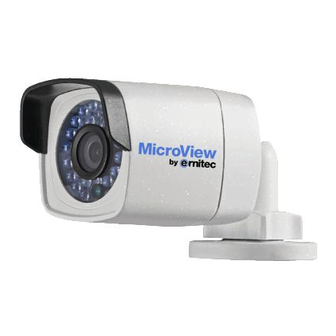

    Network Ernitec Cloud Bullet Camera·Quick Start Guide 1 Appearance Description Overview of Type I Bullet Camera Figure 1-1 Type I Bullet Camera...
  • Page 10 Network Ernitec Cloud Bullet Camera·Quick Start Guide Table 1-1 Description Description Description Mounting Base Lens Back Box Sun Shield Front Box Power Cable Reset Button GND Screw 10/100M Self-adaptive Ethernet Interface Type I camera does not support the function of Wi-Fi or SD card.

  • Page 11: Overview Of Type Ii Bullet Camera

    Network Ernitec Cloud Bullet Camera·Quick Start Guide Overview of Type II Bullet Camera Figure 1-2 Type II Bullet Camera Table 1-2 Description...

  • Page 12: Resetting The Camera

    Network Ernitec Cloud Bullet Camera·Quick Start Guide Description Description Mounting Base microSD Card Slot Main Body Power Supply Interface Description Description 10/100M Self-adaptive Sun Shield Ethernet Interface Lens PoE Cable Adjusting Nut GND Screw WPS/RESET Button 1.2.1 Resetting the Camera...

  • Page 13: Setting The Wps Protocol

    Network Ernitec Cloud Bullet Camera·Quick Start Guide Figure 1-3 WPS/RESET Button WPS function and Reset function share the same button. The button works as a reset button only when you press it when the camera is powered on. 1.2.2 Setting the WPS Protocol A wireless router with the WPS function is required to enable the WPS function of the camera.

  • Page 14: Poe Power Supply Configuration (Optional)

    Network Ernitec Cloud Bullet Camera·Quick Start Guide WPS/RESET Figure 1-4 WPS/RESET Button You can also press the WPS button on the camera first and then enable the WPS function on the router to establish the connection. But the WPS function of the router must be turned on within 120s right after pressing the WPS/RESET button on the camera.

  • Page 15: Installation

    Network Ernitec Cloud Bullet Camera·Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12V DC, please make sure your power supply matches with your camera.

  • Page 16: Installation Of The Bullet Camera

    Network Ernitec Cloud Bullet Camera·Quick Start Guide Installation of the Bullet Camera Both wall mounting and ceiling mounting are suitable for the bullet camera. Wall mounting will be taken as an example in this section. You can take steps of wall mounting as a reference if ceiling mounting is adopted.
  • Page 17 Network Ernitec Cloud Bullet Camera·Quick Start Guide Figure 2-2 Secure the Camera to the Ceiling 4. Connect the corresponding power/Video Output cables. 5. Adjust the surveillance angle. Adjusting Nut 0°~360° 0°~360° 0°~90° Figure 2-3 3-axis Adjustment 1). Loosen the adjusting nut.
  • Page 18 Network Ernitec Cloud Bullet Camera·Quick Start Guide 4). Rotate the camera [0° to 360°] to adjust the lens to the surveillance angle. 5). Tighten the adjusting nut to complete the installation.

  • Page 19: Installation Of Network Cable Water-Proof Jacket(Optional)

    Network Ernitec Cloud Bullet Camera·Quick Start Guide 2.2 Installation of Network Cable Water-proof Jacket(Optional) Purpose: If the camera is installed outdoor, you can adapt the water-proof accessory for the network cable after the camera is secured on the installation surface.
  • Page 20 Network Ernitec Cloud Bullet Camera·Quick Start Guide Align the snap and notch. i. Insert into ⑤ ④ ii. Secure with ⑥ ④ Camera Switch/Router Figure 2-5 Water-proof Accessory Installation Steps: 1. Feed the plug less network cable ⑦ through the lock nut ⑥, waterproof rubber gasket ⑤...
  • Page 21 Network Ernitec Cloud Bullet Camera·Quick Start Guide 4. Insert the network plug ③ into the camera’s network interface socket①. 5. Insert the water-proof rubber gasket ⑤ into the waterproof end cap ④, and secure lock nut ⑥ with the water-proof end cap ④.

  • Page 22: Setting The Network Camera Over The Lan

    Network Ernitec Cloud Bullet Camera·Quick Start Guide 3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection.

  • Page 23: Register Camera Into Ernitec Cloud Services

    Network Ernitec Cloud Bullet Camera·Quick Start Guide 4 Register Camera Into Ernitec Cloud Services Register Camera from dashboard for professionals 4.1.1 Register Camera Steps: Find the MAC Address on the sticker of the camera box. Figure 4-1: Mac Address on the sticker Power On the camera and connect it to the internet box.
  • Page 24 Time Zone then click “Add” button. Figure 4-3: Register camera from dashboard Once the camera has been registered into the Ernitec Cloud Service, you can view the live video of the camera from the account of the Web Site Ernitec-Cloud.

  • Page 25: Unregister Camera

    Network Ernitec Cloud Bullet Camera·Quick Start Guide 4.1.2 Unregister Camera Steps: 1. In order to disable Ernitec Cloud services, please click on “Delete Camera” button of the Customers page of Dashboard. Figure 4-4: Delete Camera Button 2. If you are sure to delete your camera, click on “Yes“button.

  • Page 26: Register Camera From The Web Site Ernitec-Cloud

    Register Camera with scan of the QR Code You can also register your camera with scanning the QR code from “Ernitec Cloud” App on IOS/Android. The application “Ernitec Cloud” can be downloaded from App Store or from Google Play (please refer...

  • Page 27: Download "Ernitec Cloud" App On Ios/Android

    Network Ernitec Cloud Bullet Camera·Quick Start Guide 5 Download “Ernitec Cloud” App on IOS/Android To use the mobile application “Ernitec Cloud”, you may download it in two ways:  Download “Ernitec Cloud” from the Google Play (Android) or from the App Store (IOS).
  • Page 28 Network Ernitec Cloud Bullet Camera·Quick Start Guide Figure 5-1: Android...
  • Page 29 By using your smartphone or your iPhone equipped with an application to read QR codes you can easily download “Ernitec Cloud” App. Once you scan the QR Code existing on the sticker of camera box, the link of download application appears on the screen of your smartphone or your iPhone.

  • Page 30: Wifi Network Setup

    2. Register the camera (Refer to the chapter 4). 3. From the website Ernitec-Cloud, or with the mobile application, go to the camera setting, the Wi-Fi setting. 4. Select the Wi-Fi network from the list.
