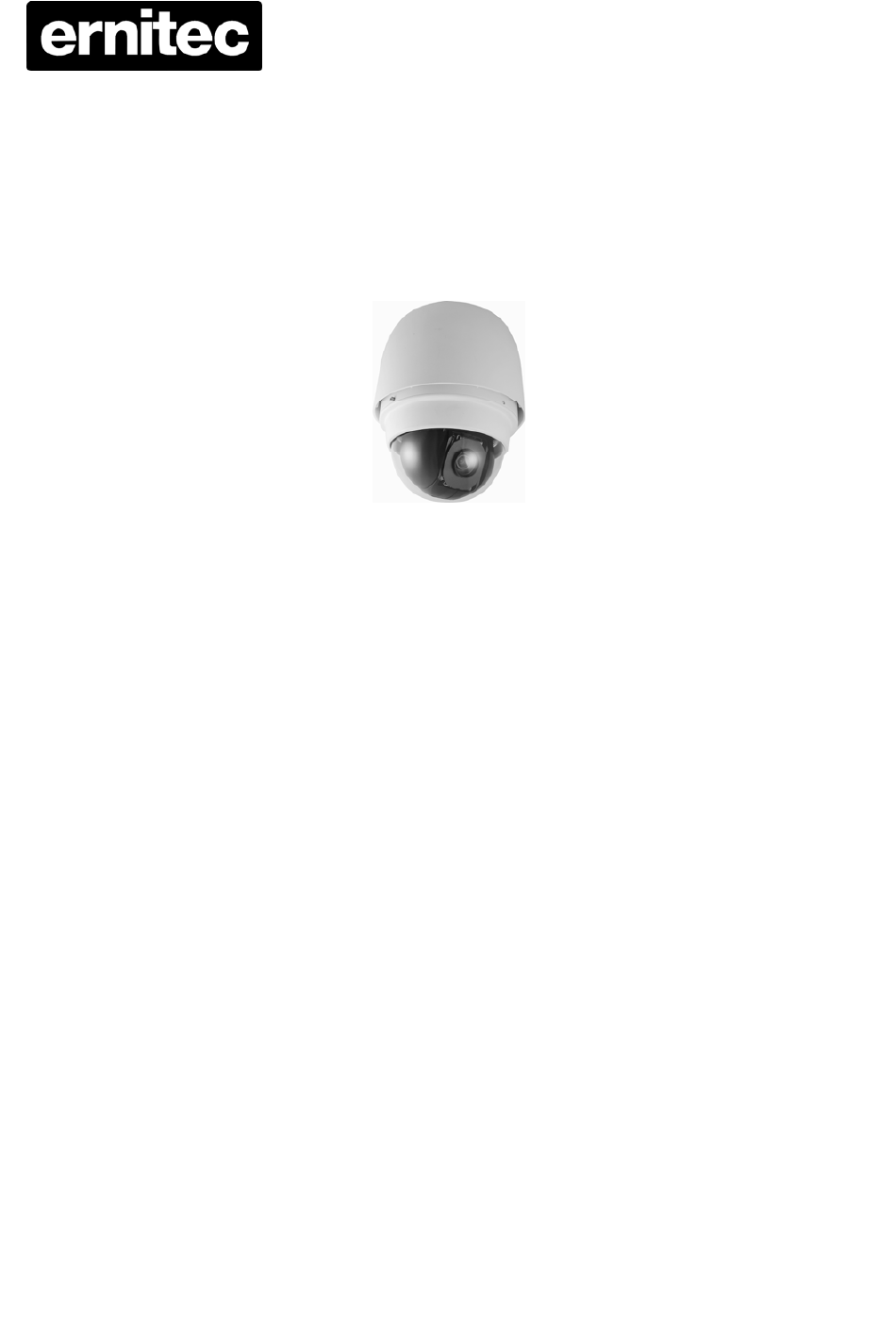

- Page 1 Orion/2 Speed domes Integrated High Speed Dome Camera Outdoor Installation Guide 00P6H8110ESDC2...
- Page 2 Ernitec. Important Information Before proceed ing, please read and observe all instructions and warnings in this manual. Retain this manual with the original bill of sale for future referen ce and, if necessary, warranty service.
- Page 3 Installation Guide This symbol on the product or on its packa ging indicates that this product shall not be treated as house hold waste in accordance with Directive 2002/96/EC. Inste ad it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipm ent.
- Page 4 • Never face the camera towards the sun Do not aim the camera at bright objects. Whether the camera is in use or not, never aim it at the sun or other extremely bright objects. Otherwise, the camera may be smeared or damaged. www.ernitec.com...
-
Page 5: Table Of Contents
Installation Guide Table of Contents Introduction........................6 Standard Package Content ..................7 Camera Setups and Cable Connection ..............8 Preparations for Dome Camera Setups ............8 Dome Camera Setups..................10 Switch Definition ................10 3.2.2 Communication Switch Setting ............11 Analog Dome Camera ............ - Page 6 Installation Guide Coaxial Telemetry....................41 System Integration ....................42 Using Pelco Keyboard..................42 Using Philips Allegiant Keyboard..............43 Appendix A: Technical Specification ................44 www.ernitec.com...
-
Page 7: Introduction
Installation Guide Introduction With weather resistant feature, the Integrated High Speed Do me Camera is applicable to outdoor installation. The Dome Camera supports o ne cabling for easy installation, and can be integrated with various digita l surveillance products, such as DVRs, Control Keyboards, and accessori es for a total surveillance solution. -
Page 8: Standard Package Content
DO NOT install or operate the product and contact your dealer for assist ance. Dome Camera Package Data Cable for Power Supply, Screws Camera Body Video and Telemetry Optical Cover 50-cm, 13-pin Alarm Cable Waterproof Rubber Lubricant Quick Guide CD: Operation Manuals www.ernitec.com... -
Page 9: Camera Setups And Cable Connection
Installation Guide 3. Camera Setups and Cable Connection Before installing or connecting the Dome Camera, please refer to this section complete preparations for Dome Camera setups and various switch settings. Preparations for Dome Camera Setups The following installation procedu re is for the outdoor Dome Camera equipped with the sunshield housing. - Page 10 Gently press down the dome cover with two hands on the side of it. DO NOT press the cover, as shown in the figure; this might se damage to the Dome Camera. STEP 6 Screw the dome cover and body together. www.ernitec.com...
-
Page 11: Dome Camera Setups
Installation Guide STEP 7 Set the switches located on the bottom of the Dome Ca mera. Refer to section Dome Camera Setups for detailed information about various switch setting. Dome Camera Setups Before connecting the Dome Camera to other devices of CCTV system, please complete the Dome Camera’... -
Page 12: Communication Switch Setting
Line Lock adjustment respectively. The SW 5 is mainly used when users want to restore the camera to the factory default status; moreover, once firmware upgrade is carried out, users also need to reset the SW 5 afterward. RS-485 Setting Half-duplex Full-duplex www.ernitec.com... -
Page 13: Id Setting
Installation Guide 3.2.3 ID Setting way to set the analog and IP Dome Cameras’ ID number is specified as follows. Analog Dome Camera Please change the analog Dome Camera’s ID if there is more t han one Dome Camera on the same installation site. Use the switch to chan ge your speed Dome Camera’s ID by turning the arrow to the desired number respectively. -
Page 14: Analog Dome Camera
No. Protocol Baud Rate 9600 Pelco D 2400 Pelco P 4800 Chiper 9600 Philips 9600 Ernitec* 2400 DSCP 9600 AD422 4800 DM P 9600 Pelco D 4800 Pelco D 9600 Pelc 2400... -
Page 15: Cable Definition And Requirements
Installation Guide Cable Definition and Requirements For operation, the integrated Dome Camera requires the video cable to carry the video signals to the remote viewing site, power cable to p ower the Dome Camera and RS-485 data cable to carry commands from the control device. 3.3.1 Cable Requirements For operation, the Integrated High Speed Dome Cameras req... - Page 16 NOTE: Be careful not to pull the cables improperly duri ng installation. Additionally, it is suggested to fasten the cables a fter cable connection is completed. Furthermore, when wiring the power cable, make sure e Ground wire inserted into the mid-pin of the terminal block. www.ernitec.com...
-
Page 17: 22-Pin Connector Definition
Installation Guide 3.3.3 22-Pin Connector Definition With the 22-pin connector, installers can simply connect the po wer, video and RS-485 cables to the Dome Camera at once. Particularly, the a larm pins are serviceable for connecting alarm input a nd output devices, such as alarm sensors, sirens or flashing lights with the surveillance system. -
Page 18: Analog Dome Camera
CAT 5 cables; maximum cable length for over 24-gauge wire is 4000 feet (1219 meters). If the total cable length exceeds 4000 feet, using a repeater to maintain the signals is recommended. Please refer to the figure and table below for pin defination and wiring. www.ernitec.com... -
Page 19: Cable Wiring And Connection
Installation Guide orre ponding Pins Definition (22-Pin Connector) 7,10 T+, R+ (D+) Reserved T-, R- (D-) 3.3.5 Cable Wiring and Connection Users may need to do cable wiring when: (1) Connecting self-provided cords to the connector housing instead of using the equipped Data Cable or (2) Connecting alarm input and output devices. -
Page 20: Do Me In Tallation
Dome Camera’s dimension for your reference before install ation. Dome Dimension The Dome Camera’s dimension is 172 x 302.5mm (6.7x11.9 Inches) and Ø 190 x 302.5mm (7.5x11.9 Inches), with sunshield. The diagrams below Ø show detailed dimension for the camera’s different parts. www.ernitec.com... -
Page 21: Optional Accessories
Installation Guide Optional Accessories Dome Camera Accessories Sunshield Height: 129.5 mm (5.05 inches); Diameter: 190 mm (7.48 inches); 0.15 kg (0.33 lbs) Transparent/Vandal Proof/Smoke Cover Security Screw Set (equipped with Vandal Proof Cover) Power Adapter 77H07-A1030 (Input: 100~115VAC/Output: 24VAC 72VA) 77H07-A2030 (Input: 220~230VAC/Output: 24VAC 72VA) - Page 22 Iron, 298×385 mm (11.73×15.56 inches) ; 2.1 kg (4.6 lbs) Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and M8*12 screw×1. Mini Pendent Mount 184×104×115.2 mm (7.24×4.09×4.54 inches); 0.6 kg (1.2 lbs) Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and M8*12 screw×1. www.ernitec.com...
- Page 23 Installation Guide Straight Tube Iron, Height: 250/500 mm (9.8/19.7 inches) ,Diameter: 50 mm (2 inches) 1 kg (2.2 lbs) / 1.8 kg (4 lbs), Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and M8*12 screw×1. Corner Plate Mini For mounting with Mini Pendent Mount. 270(L)×166(W)×95(D) mm (8.7×8×4.6 inches);...
- Page 24 1 kg (2.2 lbs). Supplied with stainless steel straps×4, M8*16 screw×4, washer×4, spring washer×4 Corner Thin Box 300(L)×164(W)×222(D) mm (11.8×6.5×8.7 inches); 3 kg (6.7 lbs); Supplied with washer×4, M8*16 screw×4 and spring washer×4. Power Box can be set inside the thin box. www.ernitec.com...
- Page 25 Installation Guide Corner Wide Box 232(L)×234(W)×210(D) mm (9.1×9.2×8.3 inches); 2.7 kg (6 lbs); Supplied with washer×4, M8*16 screw×4 and spring washer×4. Power Box can be set inside the wide box. Pole Thin Box 291(L)×136(W)×242 (D) mm (11.5×5.4×9.5 inches); 3.1 kg (6.9 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4, stainless steel straps×4.
- Page 26 For fixing Pole Direct Mounting/ Pole Box on the pole. Length: 700 mm (27.5 inches); Width: 0.63”; 0.02 kg (0.04 lbs) Stainless Strap Cutter For tension, cut and crimp stainless steel straps. 1.4 kg (3.1 lbs) Suitable for straps width: 1/2”, 5/8”, 3/4” www.ernitec.com...
- Page 27 Installation Guide Other Application Accessories Coaxial Telemetry Transmit video and RS-485 control signals via one BNC line. Dimension: 100×90×28 mm (3.93×3.54×1.1 inches) Front View Rear View All photos of the accessories are subject to change without notice.
-
Page 28: Ceiling Mounting With Straight Tube
Then adjust the waterproof rubber to the junction of straight tube and top holder. 7) Connect the cables to the Dome Camera. Then attach the Dome Camera to the top holder and fix them with the supplied screw. www.ernitec.com... -
Page 29: Wall Mount
Installation Guide Ceiling Mount: Straight Tube + Waterproof Rubber Wall Mount 4.4.1 Wall Mounting with Gooseneck Tube The following figures show how cables run through the tube in different ways. Cables exposed Cables recessed Items Needed: • Dome Camera • Data Cable (supplied) •... - Page 30 Then adjust the waterproof rubber to the junction of straight tube and top holder. 6) Connect the cables to the Dome Cam era. Then attach the Dome Camera to the top holder and fix them with the supplied screw. Wall Mount: Gooseneck Tube + Waterproof Rubber www.ernitec.com...
-
Page 31: Mini Pendant Mount
Installation Guide 4.4.2 Mini Pendant Mount Items Need • Dome Camera • Data Cable (supplied) • Mini Pendant Mount and other equipped items (optional acce ssory) • Waterproof Rubber (standard accessory) • Screws and Screw Anchors for fixing the Mini Pendant Mount (not supplied) Tools Neede •... - Page 32 1) Fix the Wall Box on wall with proper screws and screw anchors (not supplied). 2) Fasten the gooseneck tube on the wall box with the supplied screws and washers. 3) Attach the waterproof rubber to the gooseneck tube. www.ernitec.com...
- Page 33 Installation Guide 4) Thread the cables through the gooseneck tube and the top holder. NOTE : After threading the cables, please block t he cable entry hole with the supplied sponge(s) to avoid insects entering the tube. 5) Fix the to p holder to the gooseneck tube with the supplied screws and washers.
-
Page 34: Corner Mount
5) Fix the top holder to the gooseneck tube/mini pendant mount with the supplied screws and washers. Then adjust the waterproof rubber to the junction of gooseneck tube/mini pendant mount and top holder. 6) Connect the cables to the Dome Camera. Then attach the Dome Camera www.ernitec.com... - Page 35 Installation Guide to the top holder and fix them with the supplied screw. Corner Wall Mounting: Corner Standard/Mini Mounting Plate + Gooseneck Tube/Mini Pendant Mount + Waterproof Rubber...
-
Page 36: Corner Thin/Wide Box Mounting
6) Fix the top holder to the gooseneck tube with the supplied screws and washers. Then adjust the waterproof rubber to the junction of straight tube and top holder. 7) Connect the cables to the Dome Camera. Then attach the dome to the top holder and fix them with the supplied screw. www.ernitec.com... -
Page 37: Pole Mount
Installation Guide Corner Box Mounting: Corner Thin/Wide Box + Gooseneck Tube + Waterproof Rubber Pole Mount 4.6.1 Pole Th in/Wide Direct Mounting The Dome Camer a can be installed on a pole with a thin/wide direct mounting accessory and a gooseneck. Items Needed: •... - Page 38 6) Connect the cables to the Dome Camera. Then attach the D ome Camera to the top holder and fix them with the supplied screw. Pole Direct Mount: Pole Thin/Wide Direct Mounting +Gooseneck Tube + Waterproof Rubber www.ernitec.com...
-
Page 39: Pole Thin/Wide Box Mounting
Installation Guide 4.6.2 Pole Thin/W ide Box Mounting Items Need • Dome Camera • Data Cable (supplied) • Gooseneck Tube and other equ ipped items (optional accessory) • Waterproof Rubber (standard acc essory) • Pole Thin/Wide Box(optional accessory) • Stainles s Steel Straps (optional accessory) Tools Needed: •... - Page 40 Installation Guide Pole Box Mount: Pole Thin/Wide Box + Gooseneck Tube + Waterproof Rubber www.ernitec.com...
-
Page 41: System Expansion
Installation Guide System Expansion Data Formats Transforming To integrate other surveillance devices with the Integrated High Speed Dome Cameras or to extend the distance of communications, users could employ three kinds of repeater/converter, as shown below. With the adv anced circuit design, these repeaters/converters offer 1KVrms isolation volta ge and surge protection capability. -
Page 42: Coaxial Telemetry
RS-485 control signals via one BNC line, so that to bring user s economical benefits. The following is the coaxial telemetry application diagram. For more information, please refer to the coaxial telemetry’s quick installation guide. www.ernitec.com... -
Page 43: System Integration
Installation Guide System Integration The Dome Camera is allowed to be integrated into ot her suppliers' surveillance systems w ith large set of built-in protocols. Refer to the following sections for more information. Using Pelco Keyboard The Speed Dome Camera can be controlled through a Pelco keyboard which built in with... -
Page 44: Using Philips Allegiant Keyboard
Control Dome Camera Using Allegiant Keyboard • User can move the cursor left/right/up/down through pushing joystick left /right/up/down. • Some differences for ENTER command. User cannot send ENTER command directly. User can send a ENTER command through “ 7 7 <Set> “. www.ernitec.com... -
Page 45: Appendix A: Technical Specification
Auto / Manual Back Light On / Off Compensa tion OPERATION Built-in Protocol Ernitec, Pelco D&P, VCL, Philips, AD-422, JVC, Kalatel, etc. Pelco Full Duplex Multi-Langua ge OSD English, Simplified Chinese, Fren ch, Germ an, Italian, Japanese, Polish, Portuguese, Russian, Spanish Pan Travel 360°... - Page 46 ∅172 x 302.5mm (6.7 x 11.9 Inches) / ∅190 x 302.5mm ( 7.5x 11.9 Inches), with sunshield Dimension 5.8 kg (12.9 lbs) Weight AC 24V ± 10% Power Source 65 W (with Heater) Power Consumption CE, FCC, RoHS Regulatory www.ernitec.com...
