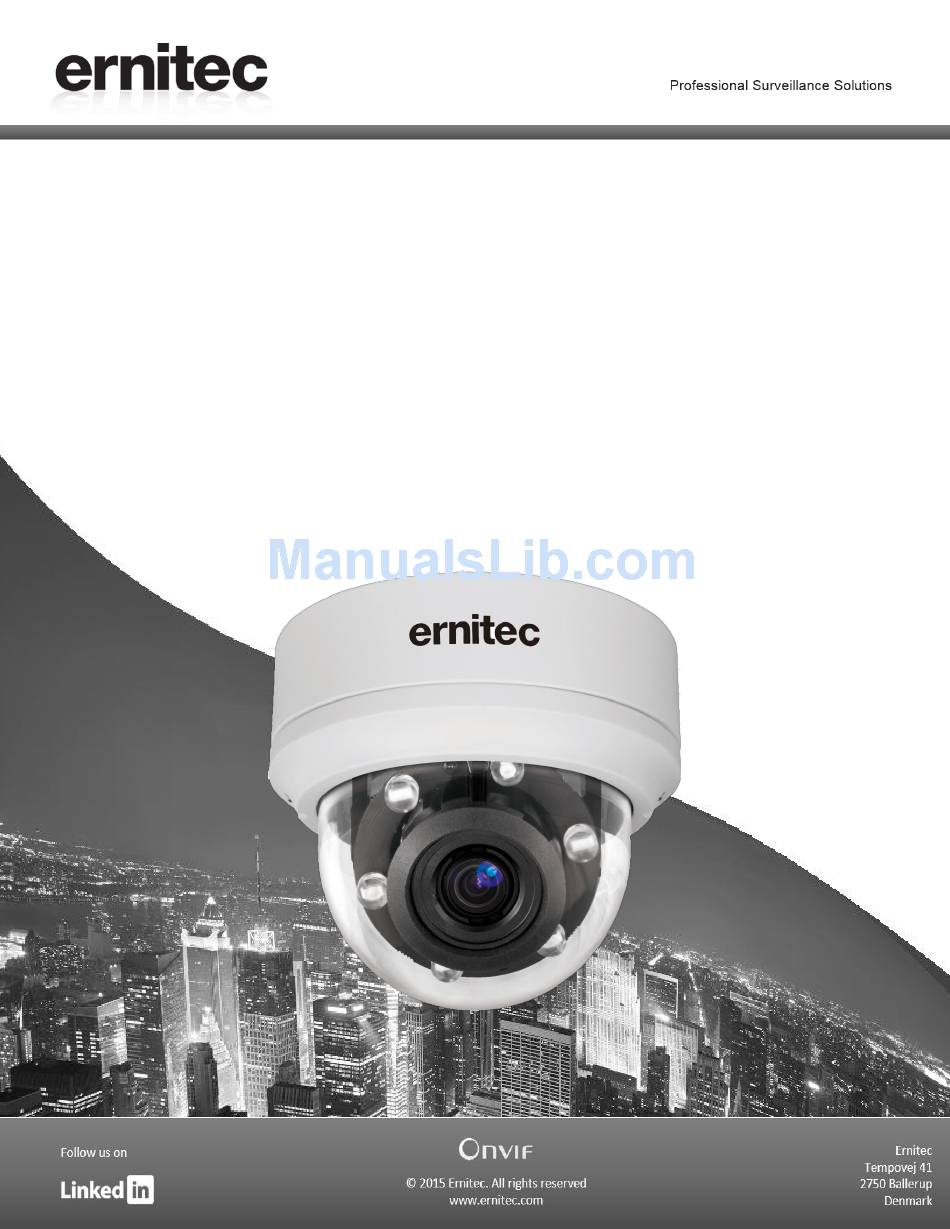

- Page 1 User’s Manual Mercury SX 4 Series SSSSSeriesseries...
- Page 2 User’s Manual – Mercury SX4 series Caution and Preventive Tips Important Information Before proceeding, please read and observe all instructions and warnings in this manual. Retain this manual with the original bill of sale for future reference and, if necessary, warranty service.
- Page 3 User’s Manual – Mercury SX4 series Regulation This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
User’s Manual – Mercury SX4 series Table of Contents Overview ..........................4 Features ........................4 Package Contents ....................5 Dimensions ......................6 Connectors ......................7 Camera Cabling ......................... 8 Connect Power ......................8 Connect Ethernet Cable ................... 8 Connect Alarm I/O .................... -
Page 5: Overview
User’s Manual – Mercury SX4 series Overview The Full HD Multi-Streams Mini Rugged Dome IP Camera is an easy setup camera with PoE supported to reduce complicated cabling without sacrificing performance. Quad Streams Compression (H.264 Baseline / Main / High Profile + MJPEG) are supported for efficient bandwidth and storage management. -
Page 6: Package Contents
User’s Manual – Mercury SX4 series Package Contents Please check the package containing the following items listed below. Full HD Multi-Streams Mini Rugged Dome IP Camera BNC Analog Cable Included 2-Pin Power Terminal Block Self Tapping Screws (x2) Plastic Screw Anchors (x2) -
Page 7: Dimensions
User’s Manual – Mercury SX4 series Dimensions The dimensions of the camera are shown below. V 3.01.090117 © 2016 Ernitec. All rights reserved www.ernitec.com... -
Page 8: Connectors
User’s Manual – Mercury SX4 series Connectors The diagram below shows the default button and various connectors of the camera. Definition for each connector is given as follows. Connector Definition Remarks RJ-45 For network and PoE connections BNC* For analog video output... -
Page 9: Camera Cabling
User’s Manual – Mercury SX4 series Camera Cabling Before users connect cables, make sure that all cables and the power adaptor are placed in dry and well-waterproofed environments, e.g. waterproof boxes. The purpose is to prevent moisture accumulation inside the camera and moisture penetration into cables, which might lead to device breakdown. - Page 10 User’s Manual – Mercury SX4 series Web Browser Microsoft Internet Explorer 6.0 or later Firefox Chrome Safari Network Card 10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation Viewer ActiveX control plug-in for Microsoft IE V 3.01.090117 © 2016 Ernitec. All rights reserved...
-
Page 11: Access Camera
User’s Manual – Mercury SX4 series Access Camera For initial access to the IP camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Accessing the Camera by Device Search Software Step 1: Double click on the program Device Search.exe. - Page 12 User’s Manual – Mercury SX4 series Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the camera. Login ID Password Admin 1234 NOTE: ID and password are case sensitive.
- Page 13 User’s Manual – Mercury SX4 series Once the Viewer is successfully installed, the Home page of the IP camera will be shown as the figure below. Vari-focal Lens Models V 3.01.090117 © 2016 Ernitec. All rights reserved...
- Page 14 User’s Manual – Mercury SX4 series Motorized Lens Models V 3.01.090117 © 2016 Ernitec. All rights reserved www.ernitec.com...
-
Page 15: V 3.01.090117
User’s Manual – Mercury SX4 series AF Lens Models Zoom and Focus Adjustment (Motorized Lens / AF Lens Models Only) The live image will be displayed on the Home page when the camera is successfully accessed. If zoom or focus is not at the desired position, please use the function buttons on the Home page for adjustment. -
Page 16: Setup Video Resolution
User’s Manual – Mercury SX4 series Setup Video Resolution Users can setup video resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default value of video resolution is as below in dual stream. -
Page 17: Configuration Files Export / Import
User’s Manual – Mercury SX4 series Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. -
Page 18: Tech Support Information
User’s Manual – Mercury SX4 series Tech Support Information This chapter will introduce how to delete previously-installed Viewer in the PC and how to setup the Internet security. Delete the Existing Viewer For users who have installed the Viewer in the PC previously, please remove the existing Viewer from the PC before accessing to the IP camera. -
Page 19: Setup Internet Security
User’s Manual – Mercury SX4 series Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE).
