Ernitec Orion SX Series
User's Manual
Ver1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion SX Series and is the answer not in the manual?

Questions and answers

Related Manuals for ERNITEC Orion SX Series

Summary of Contents for ERNITEC Orion SX Series

  • Page 1 Ernitec Orion SX Series User’s Manual Ver1.5...
  • Page 2 Ernitec Orion SX Series User’s Manual Caution and Preventive Tips  Handle with care, do not drop the unit  Mount the unit in an equipment rack or place it on a solid, stable surface  Indoor use only. Do not place the unit in a humid, dusty, oily, or smoky site ...
  • Page 3 Ernitec Orion SX Series User’s Manual Important Information Before proceeding, please read and observe all instructions and warnings in this manual. Retain this manual with the original bill of sale for future reference and, if necessary, warranty service. When unpacking your unit, check for missing or damaged items. If any item is missing, or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT.

  • Page 4: Table Of Contents

    Ernitec Orion SX Series User’s Manual Table of Contents Overview ..........................4 Features ........................4 Package Contents ....................... 5 Dimensions ........................7 Switch/Connector Definition ..................8 Camera Cabling ........................9 Connect Power ......................9 Connect Ethernet Cable....................9 Apply Alarm I/O ......................10 Apply Audio .......................

  • Page 5: Overview

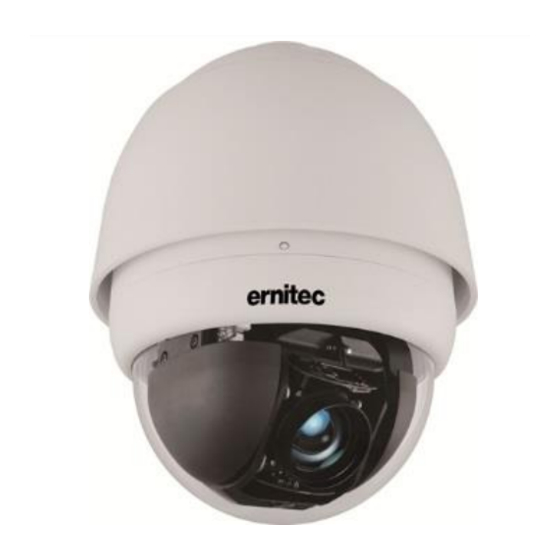

    Ernitec Orion SX Series User’s Manual Overview The Full HD Speed Dome IP Camera transmits digital video and audio data using wire connection. Live video can be monitored and recorded from window-based computer via network. The video encoder supports real-time Main Profile H.264 Full HD resolution.

  • Page 6: Package Contents

    Ernitec Orion SX Series User’s Manual Package Contents Please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Indoor Dome Camera Package...
  • Page 7 Ernitec Orion SX Series User’s Manual Outdoor Dome Camera Package M3 Standard Screw (x1) M3 Security Screw (x1)* M5 Standard Screw (x1) M5 Security Screw (x1)* Dome Camera with Outdoor Mount Kit Waterproof Rubber Quick Guide CD: Operation Manuals Lubricant...

  • Page 8: Dimensions

    Ernitec Orion SX Series User’s Manual Dimensions Indoor Outdoor www.ernitec.com v.1.5.0912...

  • Page 9: Switch/Connector Definition

    Ernitec Orion SX Series User’s Manual Switch/Connector Definition There are various connectors located on the Dome Camera’s back plate as shown in the figures below. Please refer to the diagrams and tables accompanied with for use of each switch/connector. Indoor...

  • Page 10: Camera Cabling

    Ernitec Orion SX Series User’s Manual Camera Cabling Please follow the instructions below to complete network Speed Dome Camera connection. Connect Power Please refer to the illustrations below to connect power core through the supplied power adaptor. Definition AC 24_1...

  • Page 11: Apply Alarm I/O

    Ernitec Orion SX Series User’s Manual Apply Alarm I/O The network Speed Dome Camera supports 4 digital alarm inputs and 2 digital alarm outputs. Please make sure the alarm connections are properly wired before starting to configure alarm related settings on this “Application” page.

  • Page 12: System Requirements

    Ernitec Orion SX Series User’s Manual System Requirements To perform the network Speed Dome Camera via web browser, please ensure your PC is in good network connection, and meet system requirement as described below. Items Minimum Requirement ® ® ®...

  • Page 13: Access Camera

    Ernitec Orion SX Series User’s Manual Access Camera For initial access to the network Speed Dome Camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Device Search Software Setup Step 1: Double click on the program Device Search.exe.
  • Page 14 Ernitec Orion SX Series User’s Manual Additionally, users can change the network Speed Dome Camera’s network property, either DHCP or Static IP directly in the device finding list. Refer to the following section for changing the network Speed Dome Camera’s network property.
  • Page 15 Ernitec Orion SX Series User’s Manual The Information Bar (just below the URL bar) may come out and ask for permission to install the ActiveX Control for displaying video in browser. Right click on the Information Bar and select <Install ActiveX Control…> to allow the installation.

  • Page 16: Setup Video Resolution

    Ernitec Orion SX Series User’s Manual Setup Video Resolution Users can setup Video Resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. www.ernitec.com v.1.5.0912...

  • Page 17: Video Format

    Ernitec Orion SX Series User’s Manual Video Format  Under Video Resolution section, select a preferred resolution setting. The available Video Resolution for MJPEG & H.264 format includes: MJPEG+ H.264 H.264 MJPEG BNC SUPPORT √ 720 x 480 (30fps)* √...
  • Page 18 Ernitec Orion SX Series User’s Manual √ 640 x 480 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) H.264 + H.264 H.264-1 H.264-2 BNC SUPPORT √ 720 x 480 (30fps)* √ 1920 x 1080 (30fps) 640 x 480 (30fps) √...
  • Page 19 Ernitec Orion SX Series User’s Manual √ 640 x 480 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) MJPEG ONLY MJPEG BNC SUPPORT √ 1920 x 1080 (30fps) √ 1280 x 1024 (30fps) √ 1280 x 720 (30fps) √...

  • Page 20: Appendix A: Technical Specifications

    Ernitec Orion SX Series User’s Manual Appendix A: Technical Specifications Items Orion SX 802-18x Orion SX 802-20x CAMERA Sensor 1/2.8” Sony Progressive Scan CMOS Sensor Optical Zoom Digital Zoom 1~8x variable Focal Length 4.7~84.6 mm 4.7~94 mm Focus Mode Auto / Manual...
  • Page 21 Ernitec Orion SX Series User’s Manual Items Orion SX 802-18x Orion SX 802-20x Video Compression H.264 Main Profile/ MJPEG Video Streaming Multiple Streams, H.264 + MJPEG/ H.264 + H.264 Video Resolution 1080P/ 720P/ VGA/ D1 Frame Rate 30/25 fps @ 1080P...

  • Page 22: Appendix B: Delete The Existing Dc Viewer

    Ernitec Orion SX Series User’s Manual Appendix B: Delete the Existing DC Viewer For users who have installed the DC Viewer in the PC previously, please first remove the existing DC Viewer from the PC before accessing to the network Speed Dome Camera.

  • Page 23: Appendix C: Setup Internet Security

    Ernitec Orion SX Series User’s Manual Appendix C: Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE).
