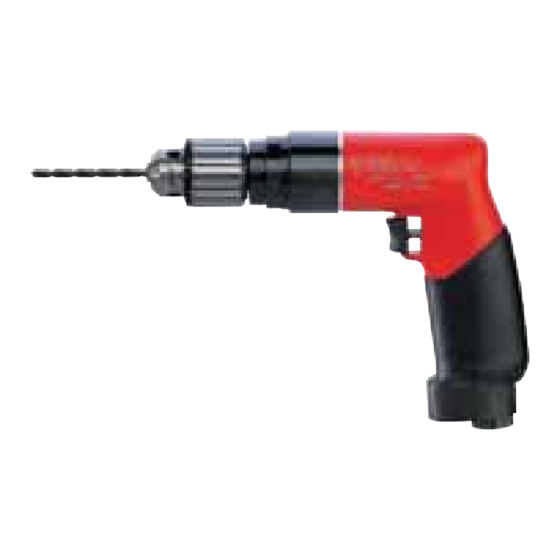

Sioux Tools 1457ES Instructions And Parts List

Hide thumbs

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual
INSTRUCTIONS AND PARTS LIST FOR 1457ES DRILLS
Read and understand "Safety Instructions For Air Tools" and these instructions before
AIR SUPPLY
The efficiency of the tool is dependent on the proper supply of clean dry air at 90 psig (6.2 bar). The use of a line filter,
pressure regulator, and lubricator will insure maximum output and life of tools. Before connecting tool, blow out the air line to
remove water and dirt which may have accumulated.
HOSE AND HOSE CONNECTIONS
Supply hose should be not less than 3/8" (10mm) I.D. Extension hoses should be at least 1/2" (13mm) I.D. Use couplings and
fittings with at least 3/8" (10mm) I.D.
LUBRICATION
Use SIOUX No. 288 air motor oil. An airline lubricator, set to deliver 2 to 4 drops per minute, is recommended. If a lubricator is
not used, add .04 oz. (1.2cc, 12 to 15 drops) of oil into the air inlet twice daily.
GENERAL OPERATION
This tool is equipped with a teasing throttle. By slightly depressing the trigger the chuck will rotate slowly. This is useful for
starting a drill bit without first spotting with a punch. The tool will run at maximum speed when the trigger is fully depressed.
We, Sioux Tools Inc., 250 Snap-on Drive, P.O. Box 1596, Murphy, NC, 28906, USA, declare under our sole responsibility that the products
to which this declaration relates are in conformity with the following standard or standards or other normative document or documents:
July 1, 2003
Murphy, North Carolina, USA
Date and place of issues
(SERIAL "A")
operating this tool.
SOUND AND VIBRATION READINGS
*Sound Pressure
Catalog No.
dBA
1457ES
77.1
*per PN8NTC1
DECLARATION OF CONFORMITY
1457ES
EN 792, EN 292 Parts 1&2, ISO 8662, Pneurop PN8NTC1
following the provisions of
89/392/EEC as amended by 91/368/EEC & 93/44/EC Directives.
Gerald E. Seebeck
President
Sioux Tools Inc.
Name and position of issuer
*Sound Power
*Vibration
dBA
m/s
2
88.8
Less than 2.5
*per PN8NTC1
*per ISO 8662
1
Form ZCE697
Date 2003July31/B
Page 1 of 10
Signature of issuer
Printed In U.S.A.
