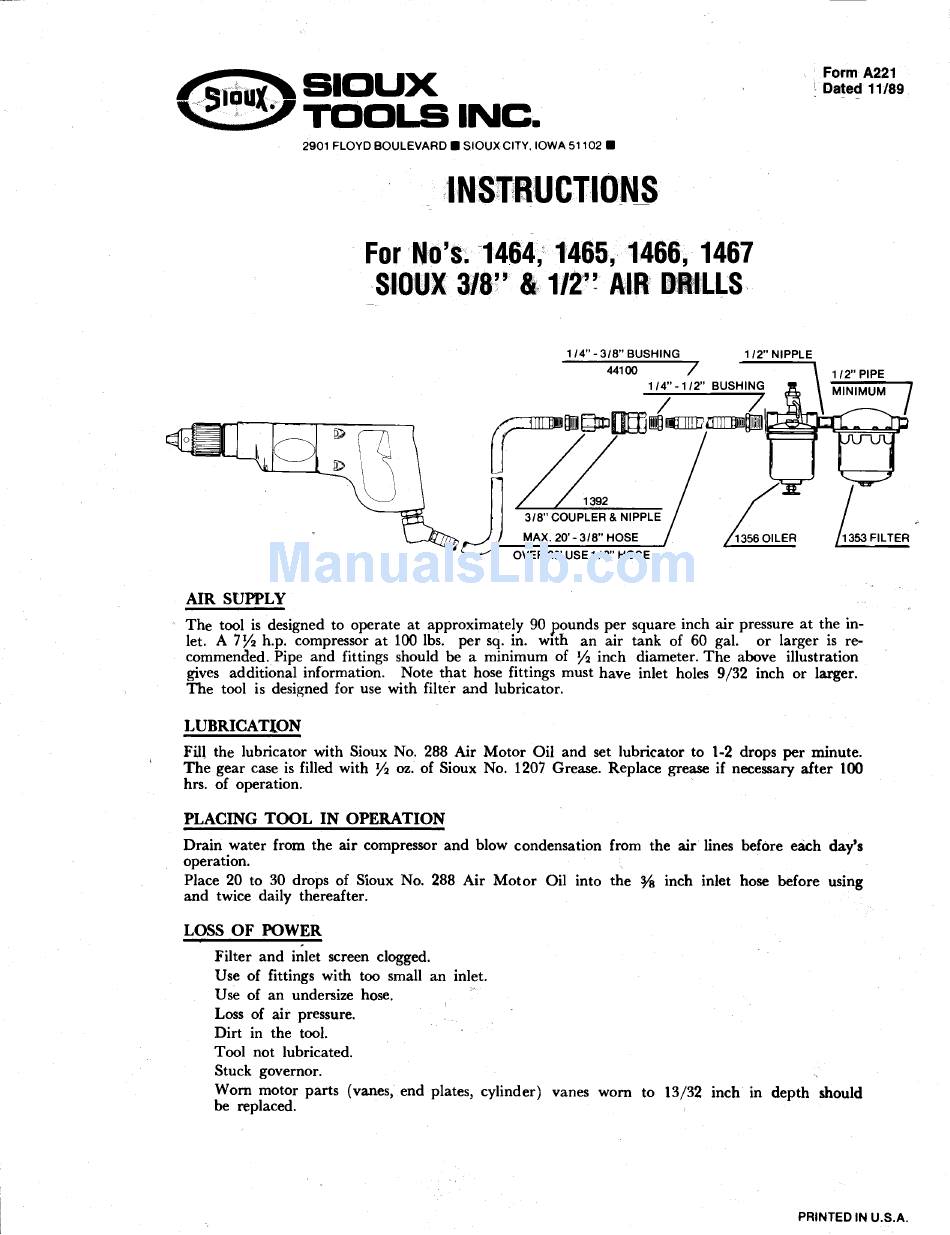

Sioux Tools 1464 Instructions

SIOUX
TOOLS INC.
Form A221
Dated 1 1 I89
2901 FLOYD BOULEVARD
Â
SIOUX CITY. IOWA 51 102
I
INSTRUCTIONS
For
No's.
1464; 1465, 1466, 1467
-
SIOUX 318" & 112" AIR DRILLS
114"
-
318" BUSHING 1 I 2 NIPPLE
318" COUPLER S NIPPLE
AIR SUPPLY
The tool is designed to operate at approximately 90 pounds per square inch air pressure at the in-
let. A 7% h.p. compressor at
100 lbs. per sq. in. with an air tank of 60 gal. or larger is re-
commended. Pipe and fittings should be a minimum of
/a
inch diameter. The above illustration
gives additional information. Note that hose fittings must have inlet holes 9/32 inch or larger.
The tool is designed for use with filter and lubricator.
LUBRICATION
Fill the lubricator with Sioux No. 288 Air Motor Oil and set lubricator to 1-2 drops per minute.
The gear case is filled with
1/2
oz.
of Sioux No. 1207
Grease. Replace grease if necessary after 100
hrs. of operation.
PLACING TOOL IN OPERATION
Drain water from the air compressor and blow condensation from the air lines before each d a y ' s
operation.
Place 20 to 30 drops of Sioux No. 288 Air Motor Oil into the
%
inch inlet hose before using
and twice daily thereafter.
LOSS
OF
POWER
Filter and inlet screen clogged.
Use of fittings with too small an inlet.
Use of an undersize hose.
Loss of air pressure.
Dirt in the tool.
Tool not lubricated.
Stuck governor.
Worn motor parts (vanes, end plates, cylinder) vanes worn to 13/32 inch in depth should
be replaced.
PRINTED IN U.S.A.
