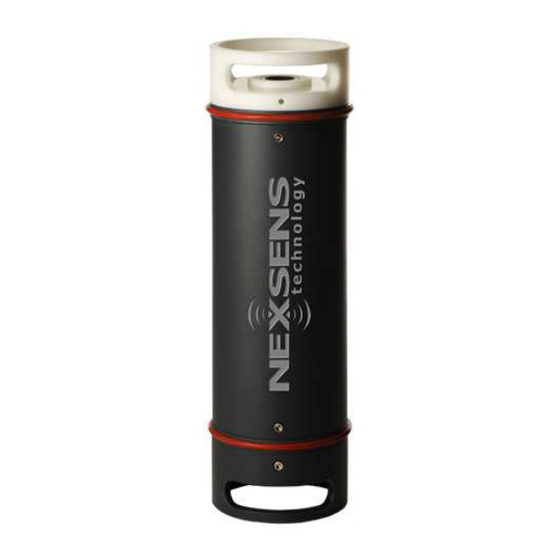

Summary of Contents for NexSens SDL500

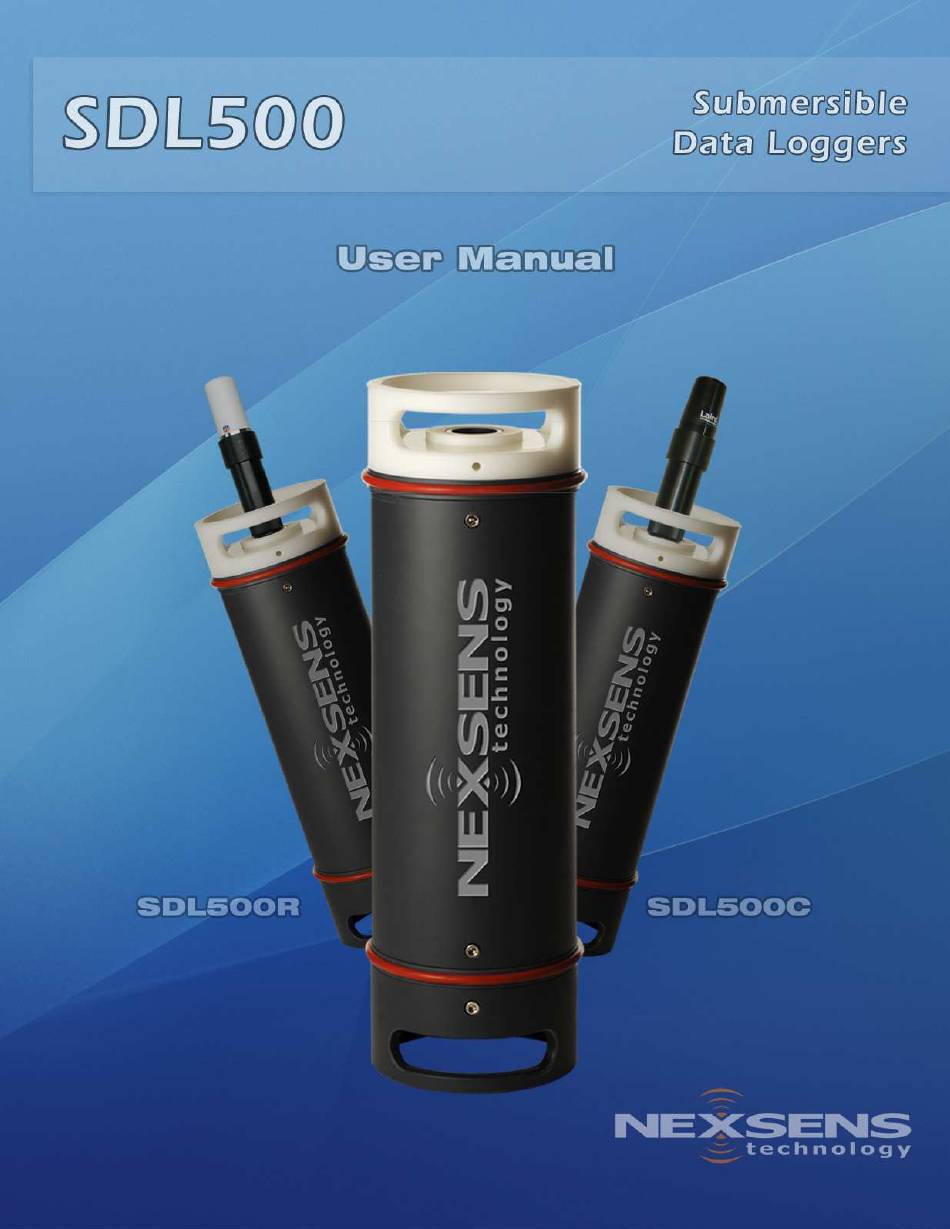

  • Page 1 Title Page...
  • Page 2 About NexSens NexSens Technology, Inc. was founded in the late 1990s with a mission to advance the capabilities and simplify the development of environmental monitoring systems. The company specializes in environmental sensors, remote data acquisition and communications technology, easy-to-use computer software, and web based datacenters.
  • Page 3: Table Of Contents

    Specifications ........4 General ..............4 Cellular ..............5 Radio ............... 6 Getting Started ........6 Powering the SDL500 ..........6 Internal Battery Installation ..............7 Supplying External Power ..............8 Setting up Communication ........8 Direct Connect ..................8 Cellular ....................
  • Page 4 Cleaning ..............21 Storage ..............21 Changing the Batteries .......... 22 Troubleshooting ........23 Direct Connect ............23 Cellular ..............23 Radio ..............23 Material Safety Data Sheets ....26 Warranty and Service ......26 Appendix A: Optional Outputs ... 27 SDI-12 ..............
  • Page 5: Overview

    When fitted for wireless remote communication, the radio, cellular, and satellite antennas are also waterproof. The SDL500 is powered by eight D-cell alkaline batteries. An optional 5-watt solar power kit provides long-term continuous operation and solar charging. It incorporates a wide variety of analog and digital sensor interface capabilities.
  • Page 6: What's Included

    • Quick start guide spread spectrum radio with the SDL500R. Figure Figure 2 2 2 2 : : : : Everything included with purchase of an SDL500 data logger Figure Figure *Only included with direct connect SDL500, not with telemetry-enabled...
  • Page 7: Common Accessories

    A44-SDL high gain radio antenna are both required for remote communication via spread spectrum radio with the SDL500R. Common Accessories Table Table 1 1 1 1 : : : : Accessories commonly used with SDL500 data loggers Table Table Part Number Description Details...
  • Page 8: Specifications

    Specifications General Table Table Table Table 2 2 2 2 : : : : NexSens SDL500 data logger general specifications 4-20 mA sensors, 0-2.5 V sensors, SDI-12 sensors, RS-232 Compatible Sensors sensors, RS-485 sensors, Modbus RTU sensors, NMEA 0183...
  • Page 9: Cellular

    5 mA sleep Power Consumption 10 mA processing 36 mA analog measurement Cellular Table Table 3 3 3 3 : : : : NexSens SDL500C data logger cellular specifications Table Table Cellular Modem Power Voltage: 9 to 28 VDC Requirements...
  • Page 10: Radio

    GSM/GPRS, EDGE, CDMA Supported Cellular AT&T, Verizon, Sprint, Alltel Providers Radio Table le le le 4 4 4 4 : : : : NexSens SDL500R data logger radio specifications Radio Modem Power Voltage: 6 to 30 VDC Requirements 86 mA receive...
  • Page 11: Internal Battery Installation

    Figure Figure 3 3 3 3 : : : : Unthreading the SDL500 battery lid from the communication Figure Figure bulkhead for battery installation Eight D-Cell alkaline batteries can be inserted into the SDL500 (see Figure 4).
  • Page 12: Supplying External Power

    If USB drivers do not install automatically, insert the USB driver CD provided with the SDL500. Figure 5 5 5 5 : : : : Connecting the SDL500 USB interface cable to a PC running iChart Figure Figure Figure software...
  • Page 13: Cellular

    DB-9 an available wall outlet (see Figure below). port, a USB to serial adapter can be used. Figure Figure Figure Figure 6 6 6 6 : : : : Typical base station setup for NexSens radio data logger networks.
  • Page 14 | iSIC from the menu bar in iChart to iSIC | iSIC NOTE iSIC Setup connect to the SDL500 using the dialog The default address for Choose the communication (Connection, PC COM Port, and a single SDL500 is 1.
  • Page 15 Setup connect to the SDL500C using the dialog The SDL500 will send its current status (time, operating battery voltage, real-time clock battery voltage, firmware version, hardware version and ID) to iChart. If this information is displayed, communication has been established.
  • Page 16: Connecting Sensors

    The sensor bulkhead incorporates ports T, P1, P0, A and D. Figure Figure Figure Figure 10 10: : : : SDL500 sensor bulkhead with ports P0, P1, A, T, and D Each port includes an 8-pin connector with various signal configurations. Figure Figure...
  • Page 17: Recommended Port Connections

    See the appropriate sensor interface manual(s) for additional being used to secure information on connecting sensors to an SDL500 data logger. watertight connections. Figure Figure 12 12: : : : Connecting a T-Node temperature sensor to SDL500 sensor Figure Figure bulkhead Recommended Port Connections Table...
  • Page 18 3BGETTING STARTED AccuStage level sensor NexSens Long T-Node string Short T-Node string (<14 sensors or <15 m length) Nortek Aquadopp current Profiler RLS Radar level sensor Ponsel Ponsel Digital Sensors P0, P1, T RM Young 05103V, 05103V-45 Wind monitors SonTek...
  • Page 19: Pre-Deployment Check

    13: : : : dialogue used for setting up projects and programming of data loggers and sensors Deploying the SDL The versatility of the SDL500 offers many options for field deployments including: WARNING Bottom deployed in lakes, streams and coastal waters...
  • Page 20: Communication Port

    4BCOMMUNICATION PORT Deployed under bridges Get in touch with a NexSens Application Engineer for additional information on configuring a deployment. Communication Port The signals available in SDL500 communication ports are not always the same. The direct connect configuration (SDL500) provides different signals than the remote telemetry capable configurations (SDL500C, SDL500R).
  • Page 21 Pin-specific signals for the port are shown in the table below. Table Table 6 6 6 6 : : : : SDL500 top communications port signals; available only on the Table Table direct connect configuration of the SDL500...
  • Page 22: Remote Telemetry Configurations

    SDL500, the following color code can be referenced directly for external wiring purposes. Table Table Table Table 7 7 7 7 : : : : Underwater flying lead cable signals corresponding to SDL500 communications port signals Color Signal Direction Green...
  • Page 23 5BSENSOR CONNECTION PORTS Sensor RS-485A Input/Output Sensor RS-485B Input/Output SDI-12 Data Input/Output Battery Input/Output Switch 5 V, 100 mA Output P0.Rx Input Ground P0.Tx Output Port P1 Table Table Table Table 9 9 9 9 : : : : Sensor bulkhead signals on port P1 Signal Direction Sensor RS-485A...
  • Page 24 Analog Ground Note that an underwater plug to flying lead cable can be used on sensor connection ports to wire an SDL500 to external power devices. This is typically done on remote telemetry models, as they do not have access to external...
  • Page 25: Maintenance

    Maintenance the SDL500. There is very little maintenance required for the SDL500 because it is designed for long term deployments in harsh and/or submersible applications. Cleaning Any bio-fouling that accumulates on the exterior of the SDL should be cleaned using a soft cloth or soft-bristled brush along with soap and water.
  • Page 26: Changing The Batteries

    6BMAINTENANCE Changing the Batteries Following deployment, periodically visit the SDL to check battery voltage. That cellular communication does not function below 9.5 VDC, and spread spectrum radio communication does not function below 7.5 VDC. However, if the remote telemetry capabilities cease to work based on voltage requirements, the data logger can still continue to log data provided that the voltage does not drop below 6 VDC or the smallest sensor input power...
  • Page 27: Troubleshooting

    Troubleshooting Follow the procedure below to isolate and resolve SDL500 communication problems. Direct Connect Table Table 14 14: : : : Common communication problems and resolutions for the SDL500 Table Table direct connect data logger Symptom Possible Cause Corrective Action...
  • Page 28: Radio

    7BTROUBLESHOOTING the SDL500C. Low cellular Move the SDL500C and strength antenna to a different location to maximize signal strength. Short on sensor Disconnect battery and cable shorted sensor cable, wait five minutes and reconnect the battery Radio Table Table Table Table 16 16: : : : Common communication problems and resolutions for the SDL500R radio data logger...
  • Page 29 Short on sensor Disconnect battery and cable shorted sensor cable, wait five minutes and reconnect the battery If the issue persists, visit www.NexSens.com to search the Knowledge Base for FAQs and troubleshooting guides; otherwise please contact NexSens technical support.
  • Page 30: Material Safety Data Sheets

    WARNING Limitation of Warranty NexSens Technology, Inc. products are not This warranty is not applicable to any NexSens Technology, authorized for use as Inc. product damage or failure caused by (i) failure to install, critical components in operate or use the product in accordance with NexSens...
  • Page 31: Appendix A: Optional Outputs

    SDI-12 (Serial Data Interface at 1200 Baud) is a communications protocol developed for instruments that typically monitor environmental data. When configured for SDI-12 output, an SDL500 data logger is set to run as the slave device in a master-slave configuration. This is beneficial when environmental sensors using communication methods not supported by the master device (data logger) must be integrated into a preexisting network.
  • Page 32: Modbus Rtu

    9BAPPENDIX A: OPTIONAL OUTPUTS With this setup the SDL500 acts solely as an SDI-12 sensor. It does not log data, but rather reports the data that it collects to another data logger. The data is output in a predefined SDI-12 parameter list, which the master device is programmed to interpret.
  • Page 33: Appendix B: Uw Receptacle To Fl Cable

    The underwater receptacle to flying lead cable is used to pass sensor signals through cabling that has been outfitted with an underwater plug end for connection to an SDL500. It allows a UW connectorized sensor cable to ultimately terminate in flying leads for manual wiring to external power or communication devices.
  • Page 34 9BAPPENDIX A: OPTIONAL OUTPUTS...
