NexSens CB-50 DATA BUOY Quick Start Manual

CB-50 DATA BUOY
QUICK START GUIDE
IMPORTANT - BEFORE FIELD DEPLOYMENT: Completely configure and test the internal logging and telemetry of your
sensor or data logger. Confirm that the batteries will provide adequate power for the duration of the deployment.
Ensure that all external sensor ports and battery compartments have a watertight seal.

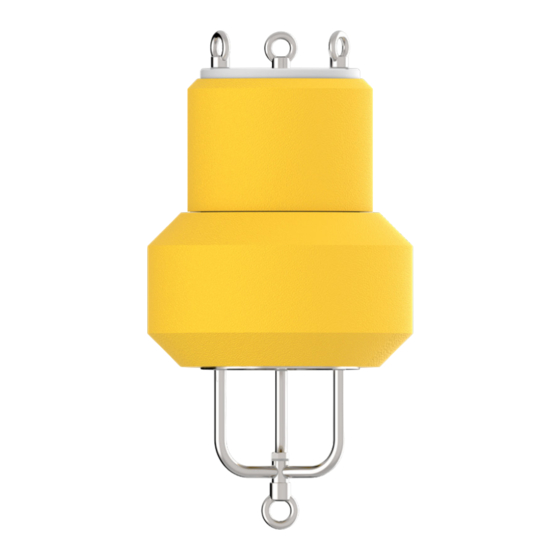

Figure 1: NexSens CB-50 Data Buoy
Overview
The CB-50 data buoy is designed for accomodating the
X2-SDL data logger, which is compatible with a multi-
tude of environmental sensors. The 5.5" ID center hole
can also house user-supplied electronics. A removable
topside foam tower supports solar marine lights and
protects electronics installed in the buoy frame. The buoy
has top-side lifting eyes and a subsurface mooring eye for
connection of single-point mooring systems.
What's Included?
(1) Buoy hull
(3) Top-side lifting eyes
Important Specifications
Center Hole Dimension : 5.5" (13.97 cm) inside diameter.
Weight : 35 lbs. (15.87 kg) no payload; ~50 lbs. (22.68 kg)
with X2-SDL and solar marine light.
Buoyancy : 50 lbs. (22.68 kg).
X2-SDL Installation
Loosen and remove the three top-facing eye nuts
1
and threaded rod assemblies.
a. Remove the top white plate.

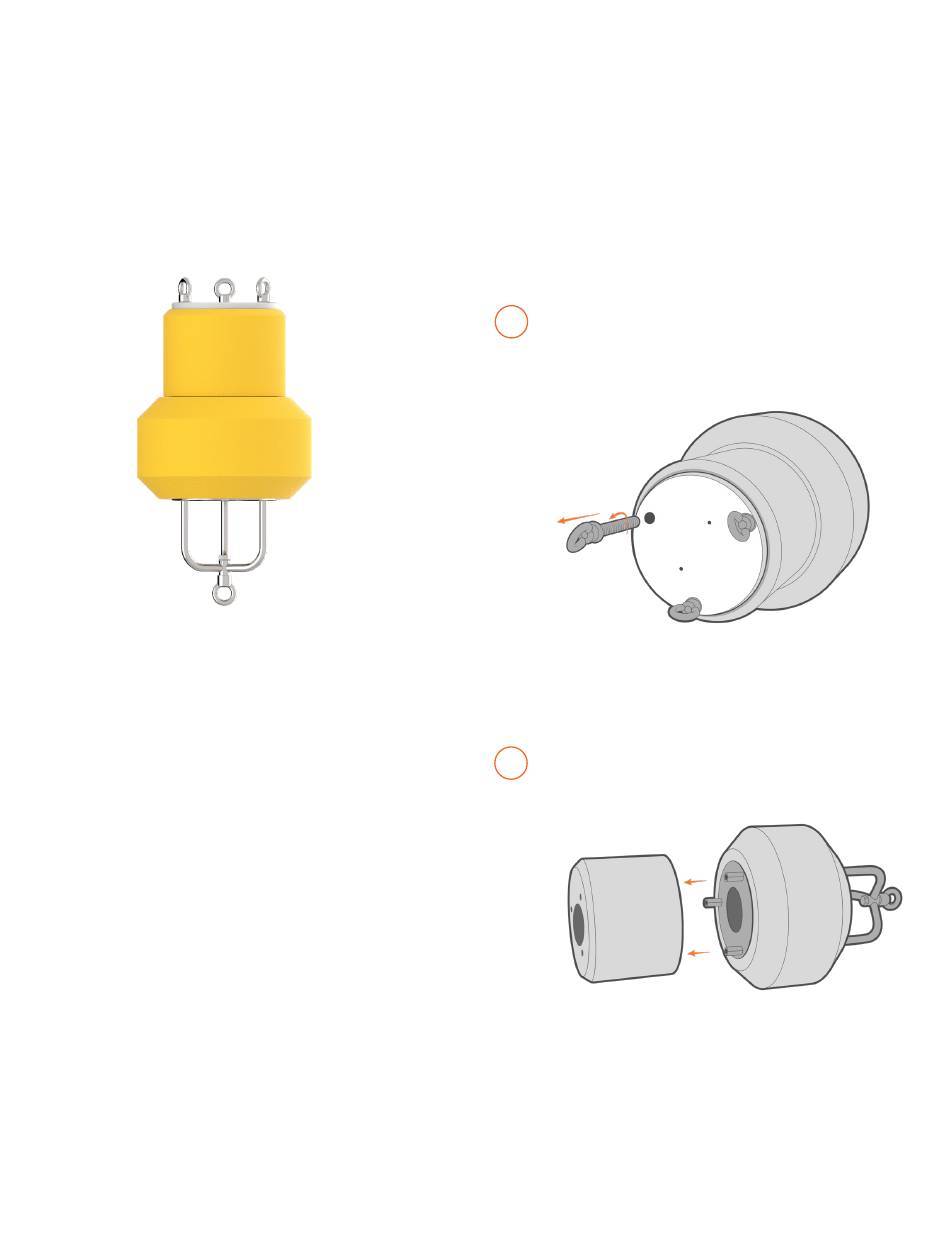

Figure 2: Remove the top white plate.
Lift the top foam tower off of the buoy base.
2
Figure 3: Remove the top foam tower.
