Pulsar MSRK Series User Manual

Pulsar MSRK Series User Manual

The module of buffer power supply grade 2

Advertisement

Quick Links

USER MANUAL
EN
Edition: 1 from 05.01.2021
Supersedes the edition:
Modules of the series
MSRK
v.2.0
The module of buffer power supply Grade 2.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSRK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pulsar MSRK Series

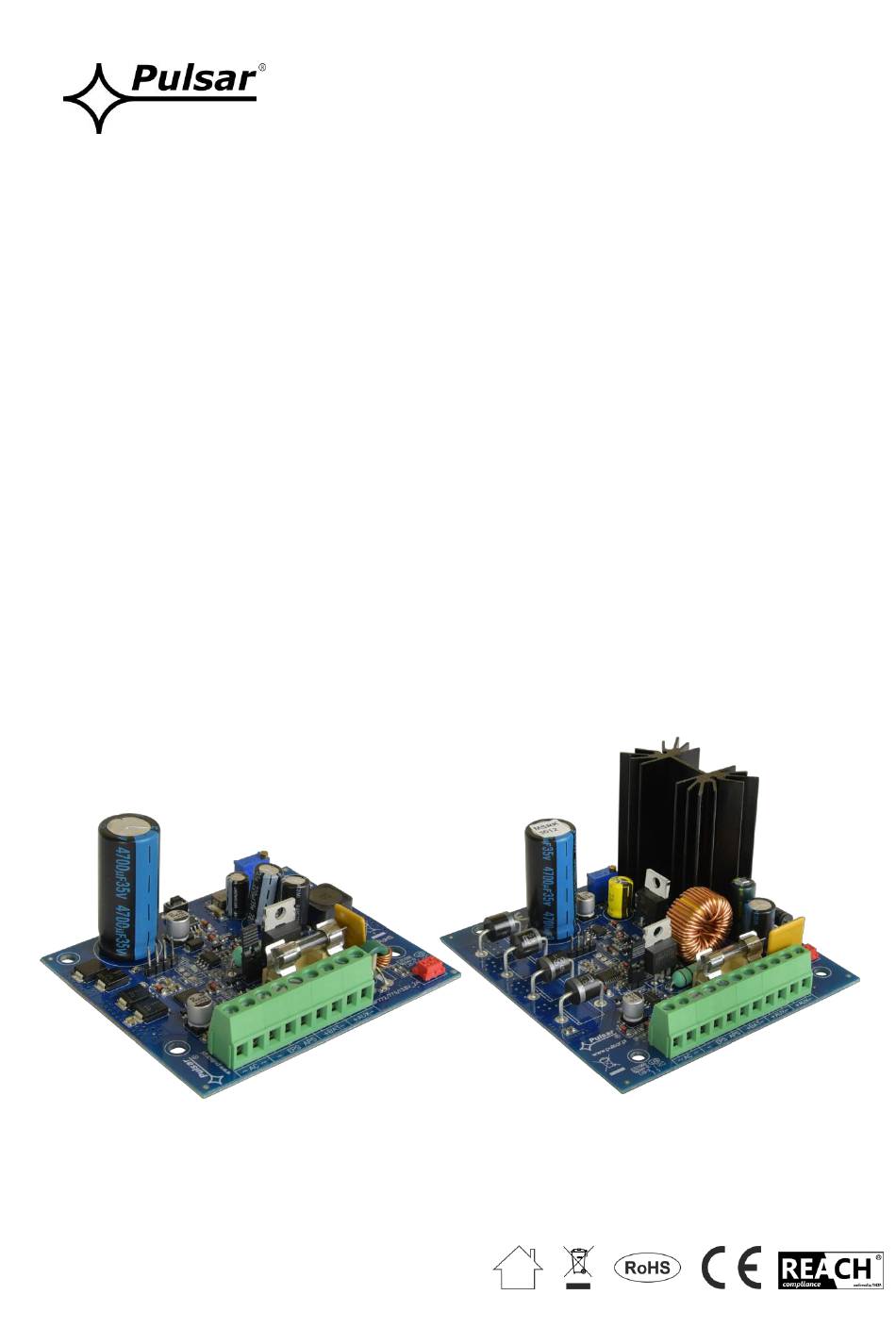

  • Page 1 USER MANUAL Edition: 1 from 05.01.2021 Supersedes the edition: Modules of the series MSRK v.2.0 The module of buffer power supply Grade 2.
  • Page 2: Table Of Contents

    MSRK series Features:   built-in power supply module battery output protection against short circuit and  reverse connection compliance with norm EN50131-6:2017 in  grade 1, 2 and II enviroment class battery charging current jumper selectable  ...
  • Page 3: Block Diagram

    MSRK series To be able to install PSU module in the Intrusion Detection Systems or Access Control systems, it must be placed in enclosure with an appropriate design and, in order to obtain certificate, supplementary tests must be commissioned for compliance with EN50131-6: 2017 or EN60839-11: 2013 standards in notified laboratory.
  • Page 4 MSRK series ; – battery charging current configuration Jumper I Power supply unit 12V2A (see Fig 2a)  =0,2 A  =0,5 A Power supply unit 12V3A (see Fig 2b)  =0,5 A  =1,0 A Description: jumper installed, jumper removed Fig.
  • Page 5: Specifications

    MSRK series 1.4. Specifications: - electrical specifications (tab.2) - mechanical specifications (tab.3) - operating specifications (tab. 4) Table 2. Electrical parameters. Models MSRK2012 MSRK3012 PSU type A (EPS - External Power Source), protection class 1–2, II environmental class Supply voltage ~ 20-22 V;...
  • Page 6: Installation

    MSRK series Table 4. Operating parameters. Environmental Class Operating temperature -10ºC...+40ºC Storage temperature -20ºC...+60ºC Relative humidity 20%...90%, without condensation Vibrations during operation unacceptable Impulse waves during operation unacceptable Direct insulation unacceptable Vibrations and impulse waves during transport Wg PN-83/T-42106 2.
  • Page 7: Operating Status Indication

    MSRK series 3. Operating status indication. The power supply unit features LED and acoustic status indication. PSU status can be remote-controlled by two technical outputs. 3.1. Optical indication. Additionally, the PSU is fitted with 3 LED lights indicating the operating status: AC, LB and AUX at the PCB of the PSU: ...
  • Page 8: Technical Outputs - Relay

    MSRK series 3.3. Technical outputs – relay. If the OC type outputs are not sufficient to control the unit, it is possible to use the AWZ639relay module changing technical outputs of the OC type to relay type. Fig. 5. The diagram of connecting the AWZ639 module.
  • Page 9 MSRK series WEEE LABEL Waste electrical and electronic equipment must not be disposed of with normal household waste. According to the European Union WEEE Directive, waste electrical and electronic equipment should be disposed of separately from normal household waste.

This manual is also suitable for:

Msrk2012Msrk3012
