Pulsar MPSB48 Quick Start Manual


battery status control

works with PSBxx, HPSBxx 54V power supply units

LED indication

EPS technical output indicating AC power collapse –
OC and relay type

1. Technical description.

1.1. General description

MPSB48 automation module is intended for indicating the operating status of buffer power supplies PSB 54V
type. The PCB board features LEDs that indicate PSU operating status (presence of AC voltage, presence of DC
voltage, battery voltage). The module is also equipped with technical outputs of OC and relay type: AC power loss,
PSU failure, low battery voltage.
1.2. Description of the module's components and connectors (fig1, tab.1)
Table 1
Element
no.
[1]
LED indicating presence of 230VAC voltage
[2] LED indicating presence of DC voltage at the PSU output
[3] LED indicating correct battery voltage
EPS - technical output indicating AC absence – relay type
[4]
[5] PSU - output indicating DC absence/PSU failure - relay type
[6] LoB - output indicating low battery voltage - relay type
EPS - technical output indicating AC absence – OC type
[7]
[8] PSU - output indicating DC absence/PSU failure - OC type
[9] LoB - output indicating low battery voltage - OC type
[10] +BAT- battery connector
[11] Indication connector
+V – 54V supply
[12]
MPSB48
v.1.0
PSB 54V automation module
Edition: 2 from 01.06.2016
Supersedes the edition: 1 from 09.12.2015
Features:
 PSU technical output indicating power
 LoB technical output indicating low battery
 warranty – 2 year from the production date
Description

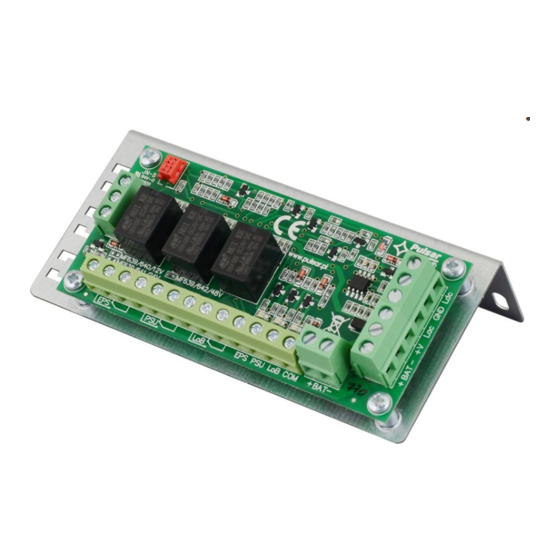

Fig. 1. The view of the module.
1
supply
module's failure - OC and relay type
voltage - OC and relay type
