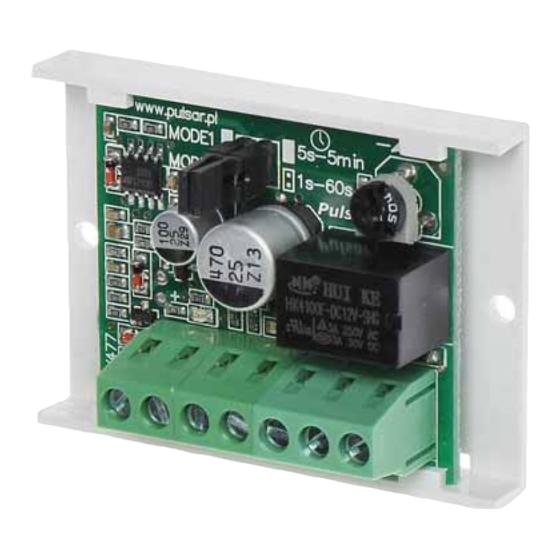

Pulsar AWZ525 Manual

Time relay module
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

10 ÷ 14V DC power supply
extension of the trigger pulse for the time set
time range from 1 second to 5 min.
Relay output
Activated by plus "S +" or ground (minus) „S-„
Optical indication of power supply, triggering signal
and relay output status
Warranty - 2 years from the production date
CONTENTS.

1. General description

4. Operating modes
1. General description.
The PC3 time module is a transceiver that allows extending the trigger pulse for a short period of time set
by the potentiometer. The device can operate in two modes: extension of time activated by the pulse or by the
triggering signal loss. The range of the measured times is between 1s. - 5 minutes.
2. Components arrangement.
The figure below shows the arrangement of the most important components and connectors of the relay
module.

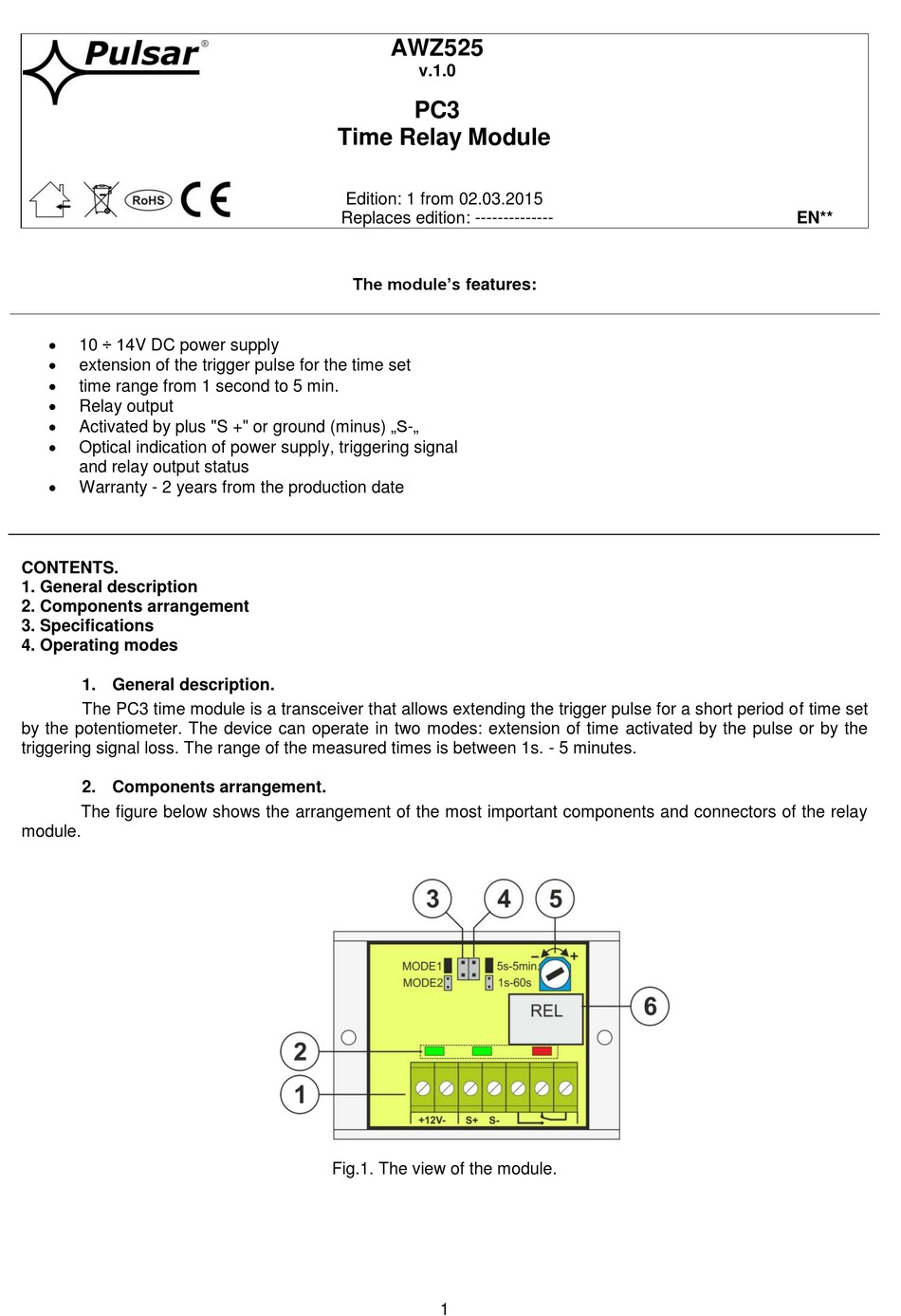

AWZ525
v.1.0
PC3
Time Relay Module
Edition: 1 from 02.03.2015
Replaces edition: --------------
The module's features:
Fig.1. The view of the module.
1
EN**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWZ525 and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar AWZ525

Summary of Contents for Pulsar AWZ525

  • Page 1 AWZ525 v.1.0 Time Relay Module Edition: 1 from 02.03.2015 Replaces edition: -------------- EN** The module’s features:  10 ÷ 14V DC power supply  extension of the trigger pulse for the time set  time range from 1 second to 5 min.
  • Page 2 Table 1. The description of components and connectors of the module. Description [Fig.1] Connector: +12V- - The module’s power supply, DC voltage - control input supplied by the positive power supply - control input activated by the negative power supply (power supply minus) –...
  • Page 3 4. Operation modes. The time module can operate in two modes: - Mode 1 (jumper on) - The triggering signal activates the relay. The system waits for a trigger signal loss. After the signal loss, the T time countdown begins. Once the countdown is finished, if no new triggering signal is generated, the relay will switch off.
  • Page 4 Waste electrical and electronic equipment must not be disposed of with normal household waste. Pulsar Siedlec 150, 32-744 Łapczyca, Poland WARRANTY Pulsar (the manufacturer) grants a two -year warranty for the Tel. (+48) 14-610-19-40, Fax (+48) 14-610-19-50 equipment, counted from the device’s production date. E-mail: biuro@pulsar.pl, sales@pulsar.pl...

This manual is also suitable for:

Pc3
